Powder suction

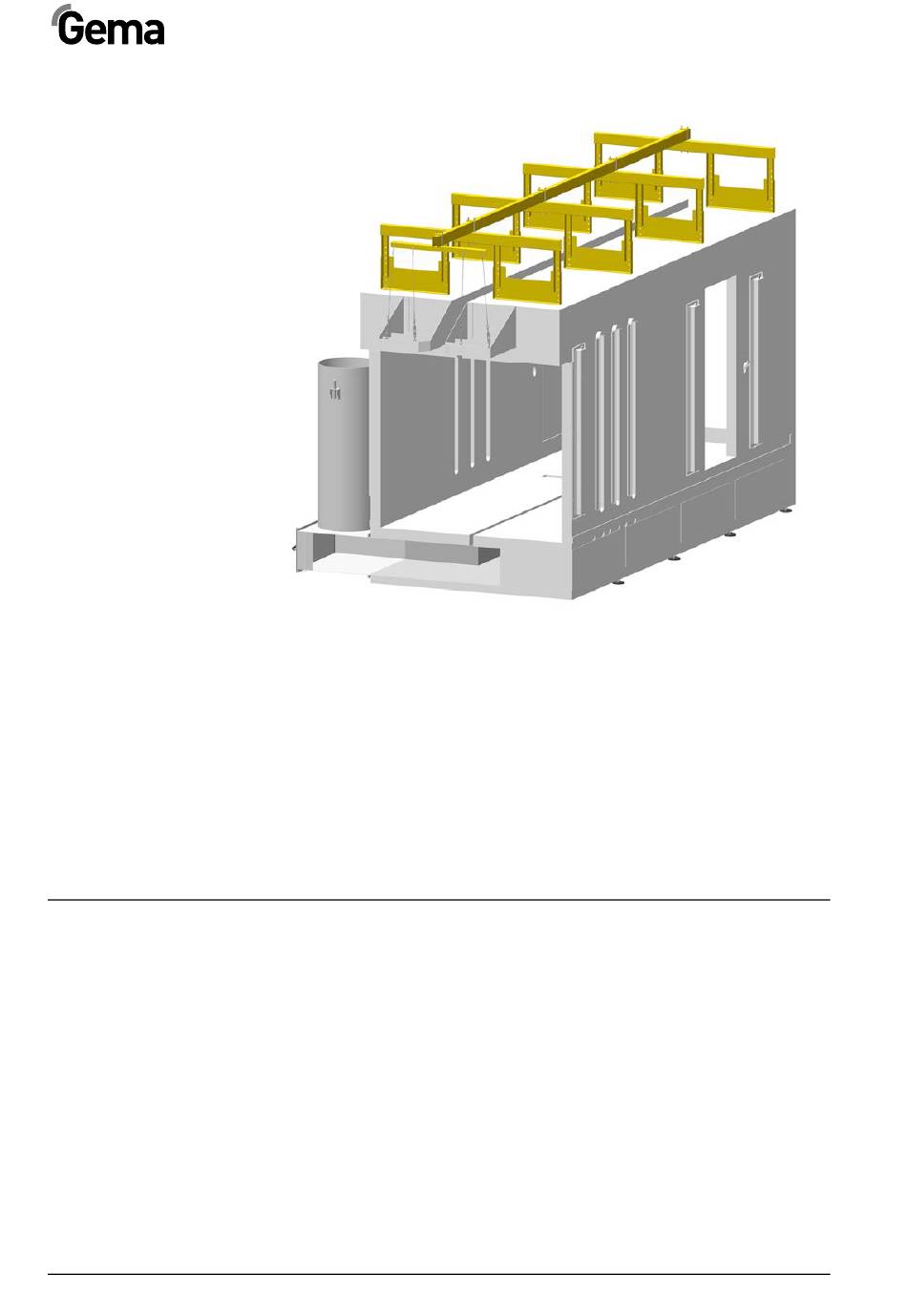

MagicCompact BA04 - powder suction (cutaway view)
The powder suction takes place via a lengthwise suction duct in the
booth floor. The powder, which has been blown by the floor blow-off
system in the direction of the suction slot, is then sucked in along the
entire booth length.
The suction duct is gathered in a cross duct at the booth end, which can
be visually controlled through a service lid. The ducts are autocleaning
and can be blown out with compressed air.
The collected powder is delivered to the cyclone separator.
Any deposited overspray powder on the walls must sometimes be moved
manually.
An efficient exhaust air system is used to keep the area around the booth
clean and to prevent explosive powder/air mixtures. The exhaust air is
created by the fan in the After Filter.
Detailed information about the After Filter is found in the corresponding
operating manual.
