Description of the Upgrade
Installation Procedure for the Upgrade
Step 18. Install the A10 26.5 GHz Source 2 Assembly and Cables
Follow the two instructions shown in
Figure
15.

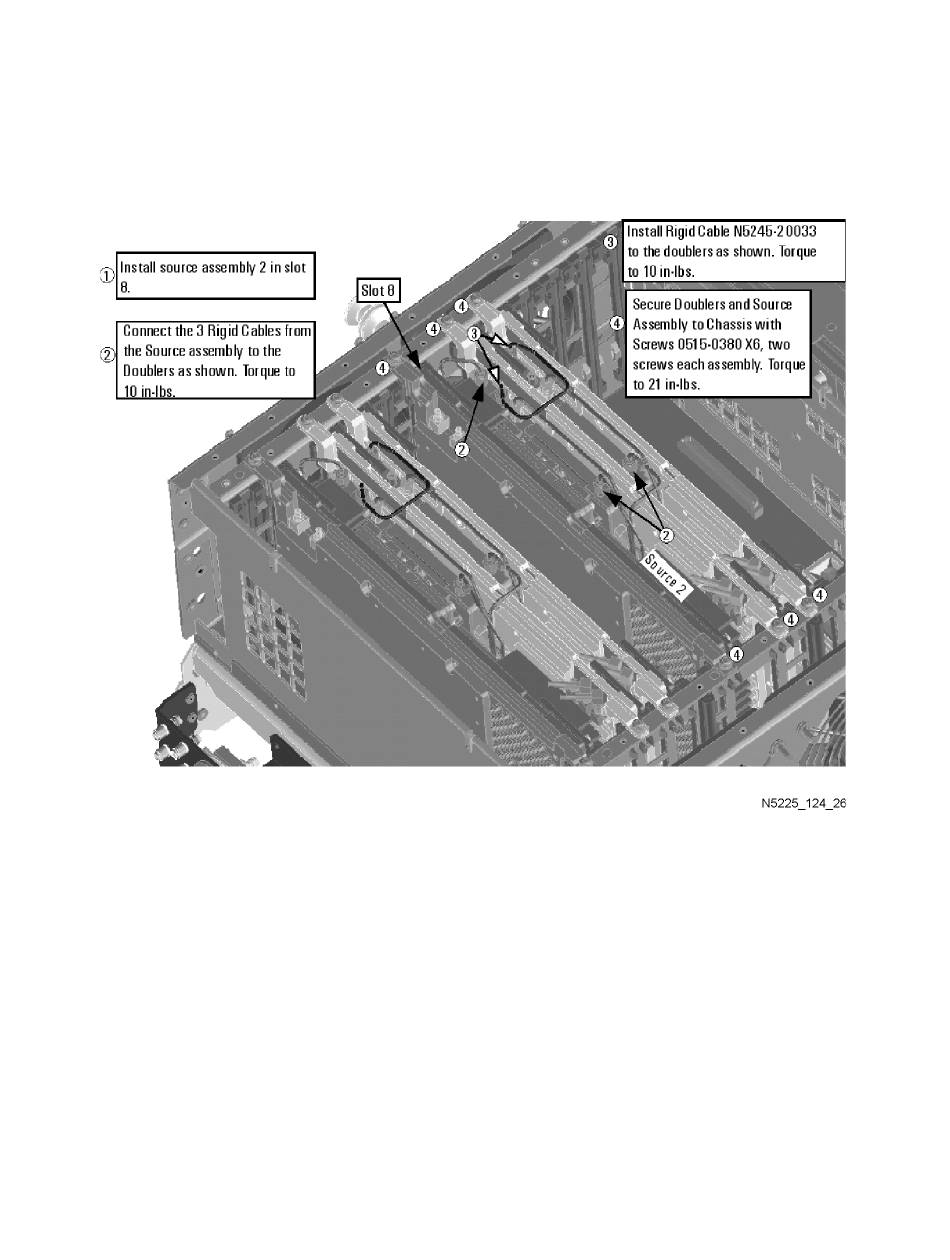

Figure 15
A10 Source 2 Assembly Installation (N5245-20033, 0515-0380)
34
Installation Note N5225-90136
