Description of the Upgrade
Installation Procedure for the Upgrade
4. Connect the following new and used cables in the order listed.

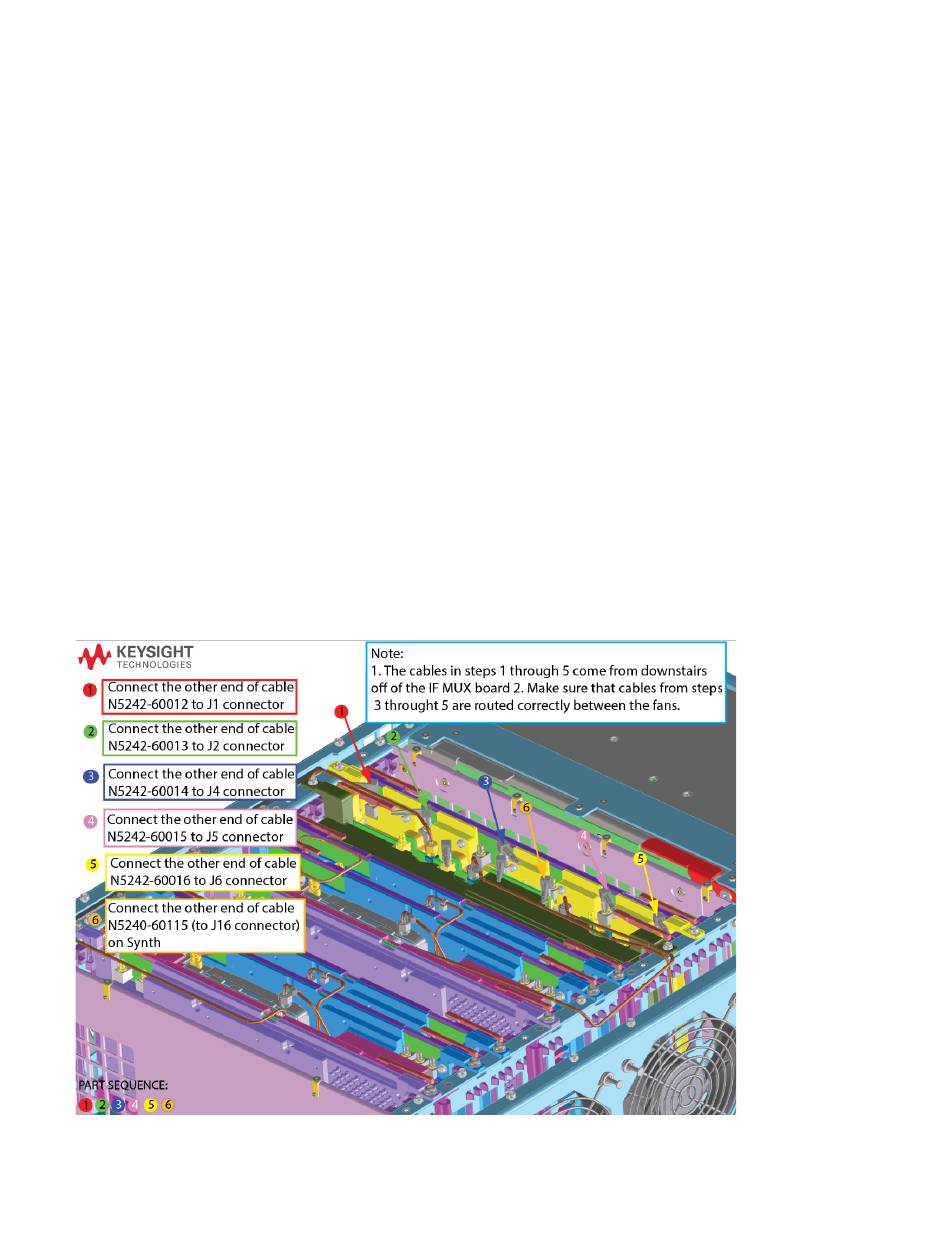

Figure 18 Connect Other End of Bottom Flexible IF Multiplexer and Top Flexible Gray
Cables to SPAM Board (N5242-60012, N5242-60013, N5242-60014,
N5242-60015, N5242-60016, and N5240-60115) – 2-Port is Shown. But,
4-Port is Similar.
38
Refer to Figure 18 on page

— —W59 (N5242-60012) (reuse) A20 IF multiplexer board P3 to A12
SPAM board J1

— —W60 (N5242-60023) (reuse) A20 IF multiplexer board P203 to
A12 SPAM board J2

— —W61 (N5242-60014) (reuse) A20 IF multiplexer board P403 to
A12 SPAM board J4

— —W62 (N5242-60024) A20 IF multiplexer board P603 to A12
SPAM board J5

— —W63 (N5242-60016) (reuse) A20 IF multiplexer board P803 to
A12 SPAM board J6

— —W200 (N5240-600115) A11 SRC DD Synthesizer assembly J16
to SPAM J3
36.
Installation Note N5225-90136
