Description of the Upgrade
Getting Prepared
Verify the License Contents
Refer to the license message you received from Keysight:
If the model number, serial number, or option number do not match those on
the license message you received from Keysight, you will not be able to install
the license key file. If this is the case you received from Keysight, you will not
be able to install the license key file. If this is the case, contact Keysight for
assistance. Refer to
Verify the Model/Version of HMA26.5 Installed
This upgrade kit contains components for use with PNA models using the
legacy HMA26.5 part number 5086-7765. If your PNA has the newer HMA26.5
part number N5240-60101 installed you may discard these parts:
— A26 splitter 5067-4086
— W52 N5245-20013
— W53 N5245-20023
— W54 N5245-20022
(If you have the legacy 5087-7765 HMA26.5, please discard the N5245-20195
semi-rigid cable. Refer to
The new N5240-60101 HMA26.5 has the splitter integrated into the assembly.
Refer to

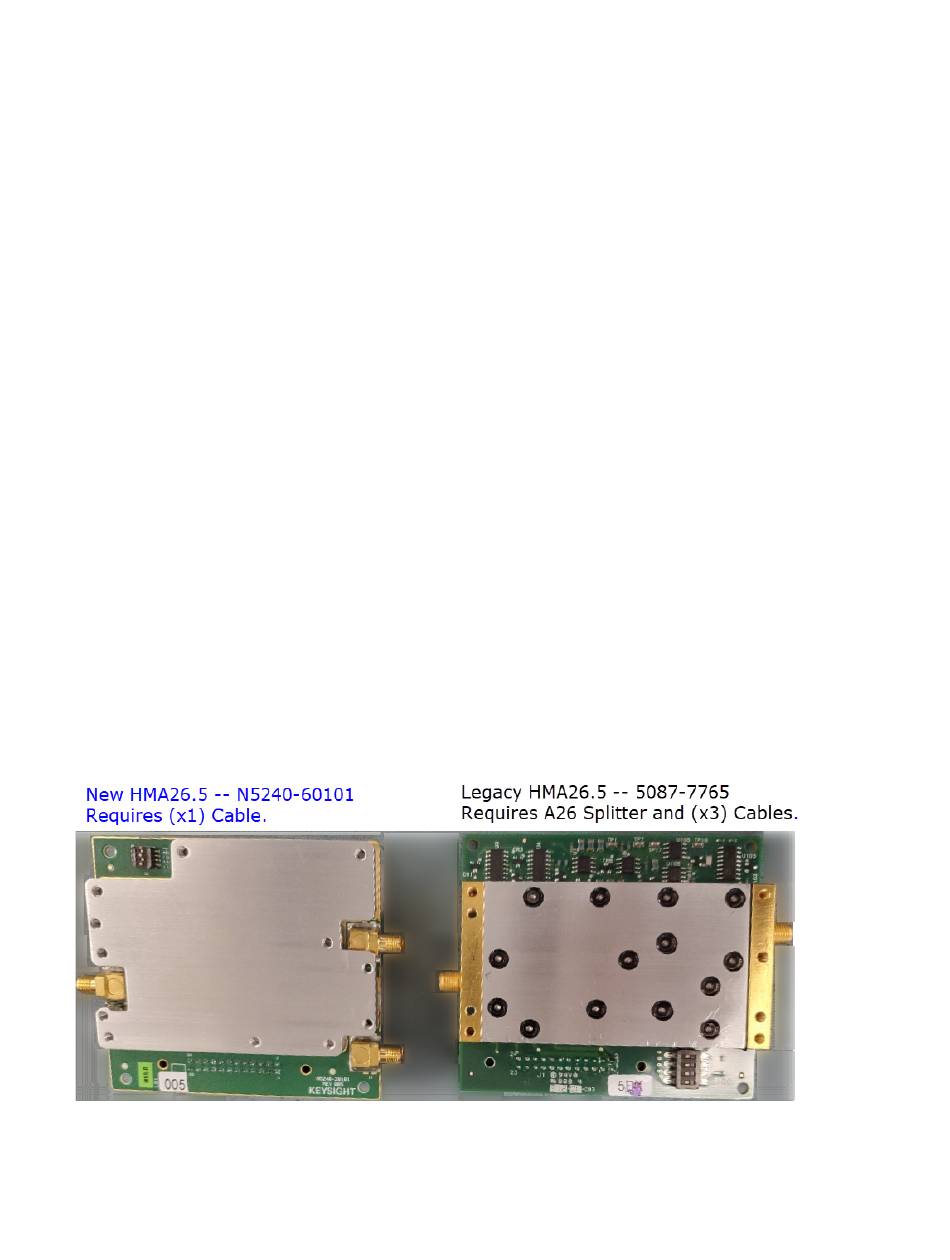

Figure 1 Comparison of Legacy HMA26.5 (5087-7765) and New HMA26.5
(N5240-60101)
Installation Note N5225-90136
"Getting Assistance from Keysight" on page
Figure 1 on page
Figure 1 on page 7.
4.
7.)
