Description of the Upgrade
Installation Procedure for the Upgrade
3. Connect the following reused gray cables as shown in

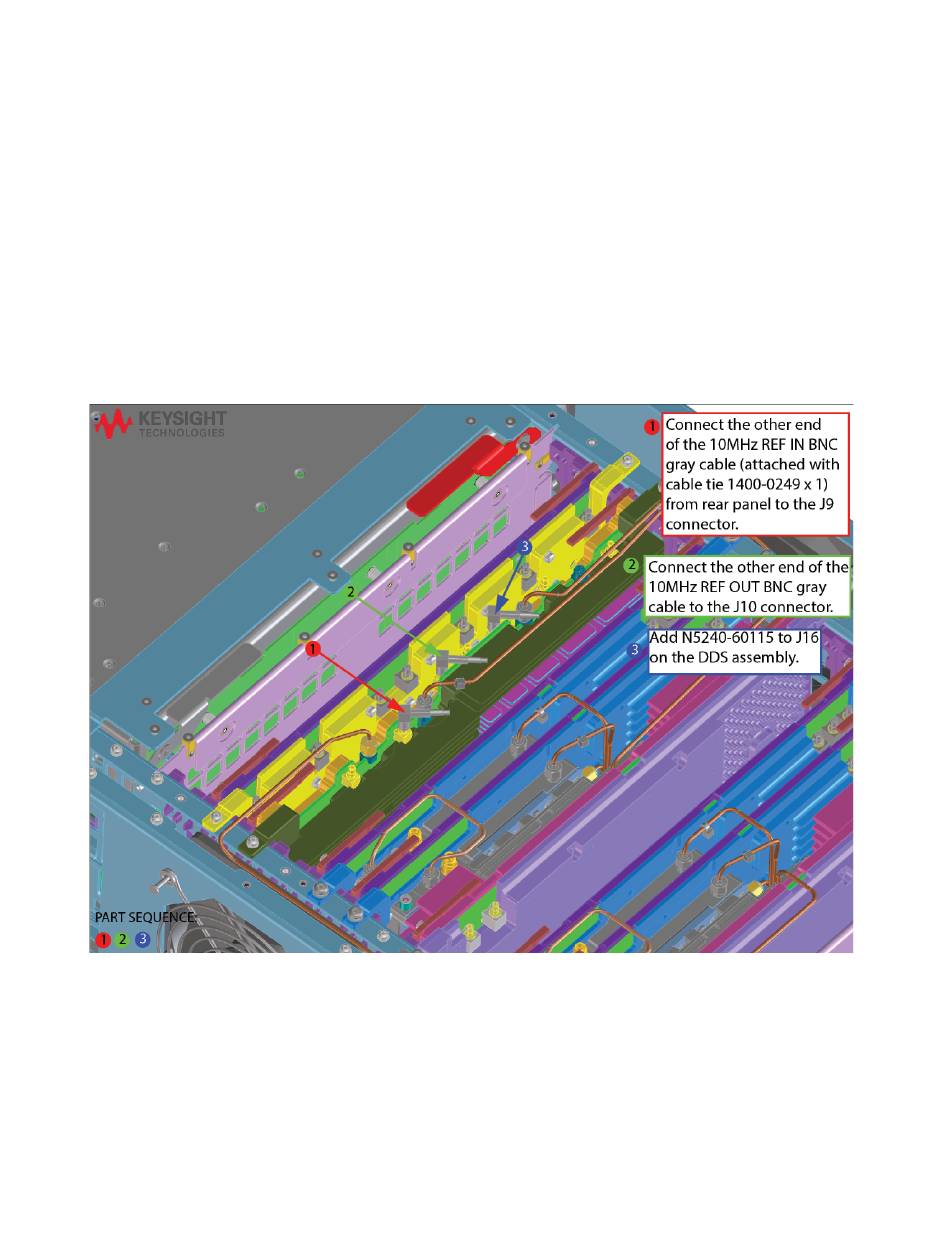

Figure 17 Reinstall Following Flexible Cables to the DDS Assembly – Top (8120-5063
(x2), 1400-0249, and N5240-60115)
Installation Note N5225-90136
page 35.

— —W69 (8120-5063) (reuse) Rear-panel REF IN to A11 DD
synthesizer assembly J9

— —W68 (8120-5063) (reuse) A11 DD synthesizer assembly J10 to
rear-panel REF OUT

— —W200 (N5240-60115) (reuse) SRC DD synthesizer assembly J16
to SPAM J3
Figure 17 on
