Description of the Upgrade
Installation Procedure for the Upgrade
4. Connect the gray flexible cables to the A28 mixer in the order shown in

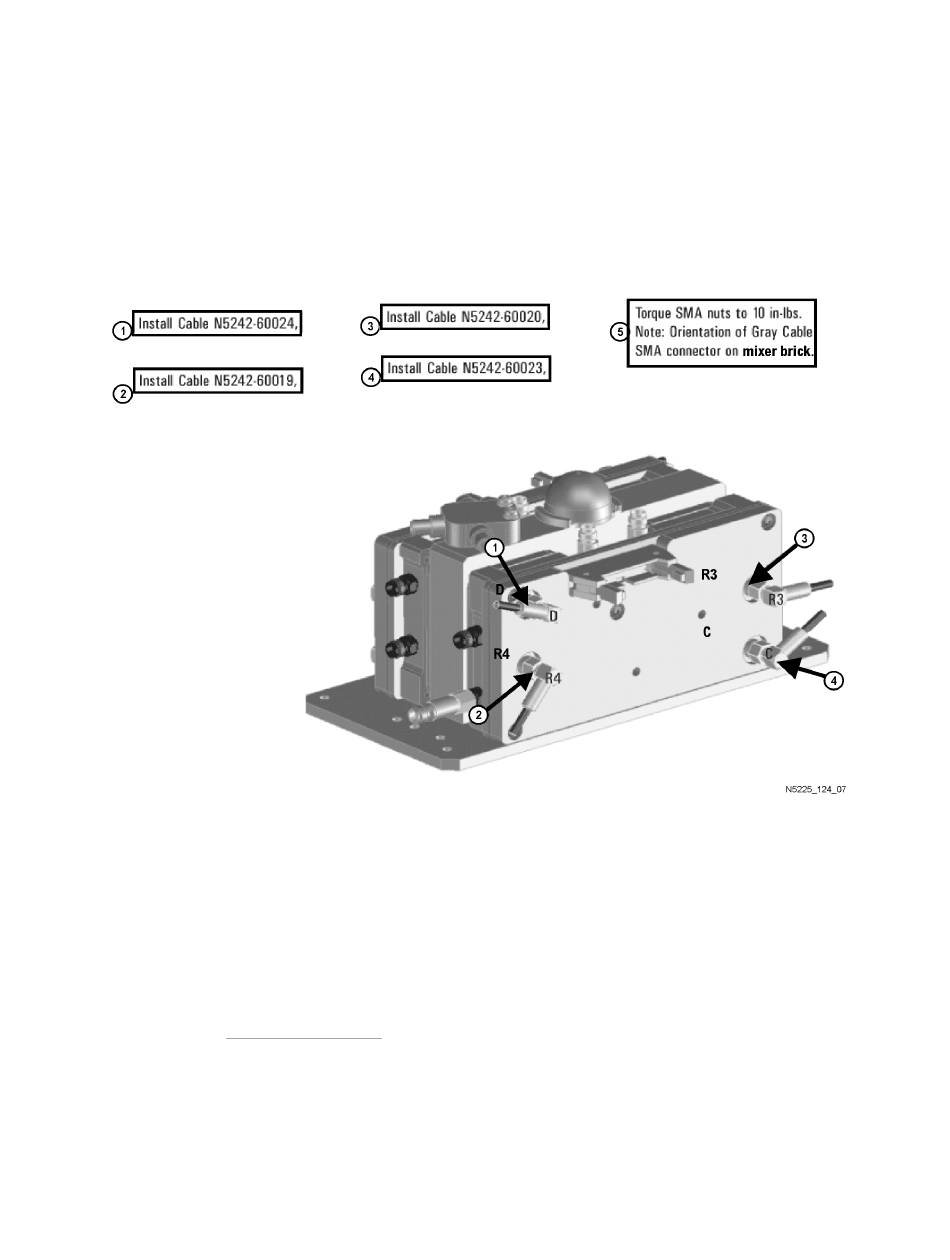

Figure 4-1 A28 Mixer Brick Cable Installation (N5242-60019, N5242-60020,
N5242-60023, N5242-60024)
The A26 splitter (5067-4086) and N5245-20013, N5245-20022, N5245-20023, N545-20101, and
1.
N5245-20150 cables are only used with a legacy HMA26.5 p/n: 5087-7765. If you are unclear
which HMA26.5 assembly your PNA has installed, refer to Chapter 7 Repairs and
and for details on A26 splitter and cabling, refer to your option-model in Chapter 6"2-Port Config-
urations, Serial Number Prefix <6021" and "4-Port Configuration, Serial Number Prefix <6021".
2. Attenuator 08490-60039 is shown in the figure, but is not included in this upgrade and not required with the
A28 mixer brick (5087-7417).
22
Figure 4-1. The other ends of the cables will be connected when the IF
board is reinstalled later.
1, 2
Installation Note N5225-90136
Figure 1 on page 7
