Keysight N5224B Installation Manual page 32

Add 4-port capability for version 7 synthesizers

Hide thumbs Also See for N5224B:

Description of the Upgrade

Installation Procedure for the Upgrade

Step 16.Install Bracket to A10 Source Assembly

Follow the two instructions shown in

Figure 13

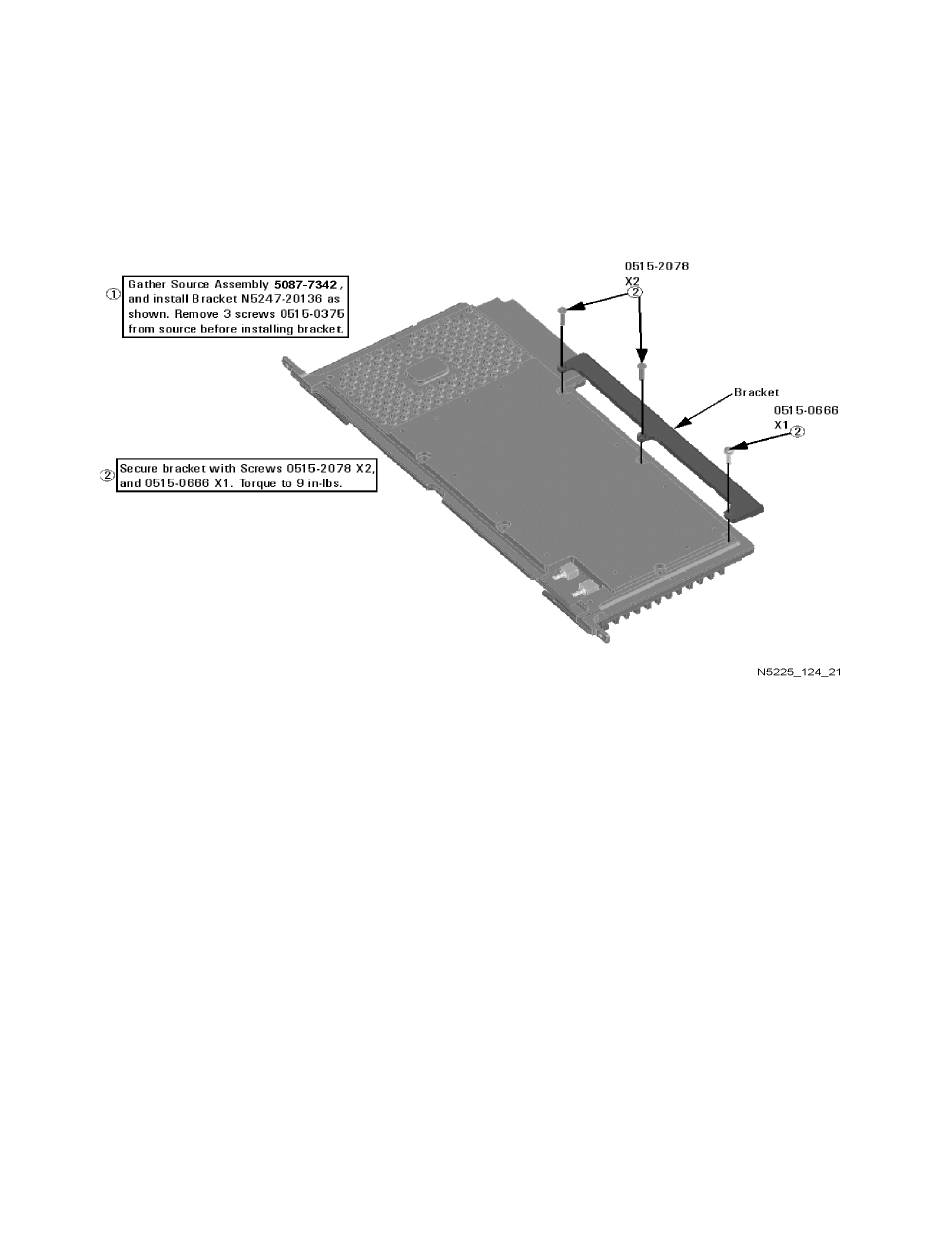

A10 Source 2 Assembly Bracket Installation (5087-7342, N5247-20136,

0515-0376, 0515-2078, 0515-0666)

Figure

13.

Installation Note N5225-90136
