Summary of Contents for Keysight PNA-X N5241A

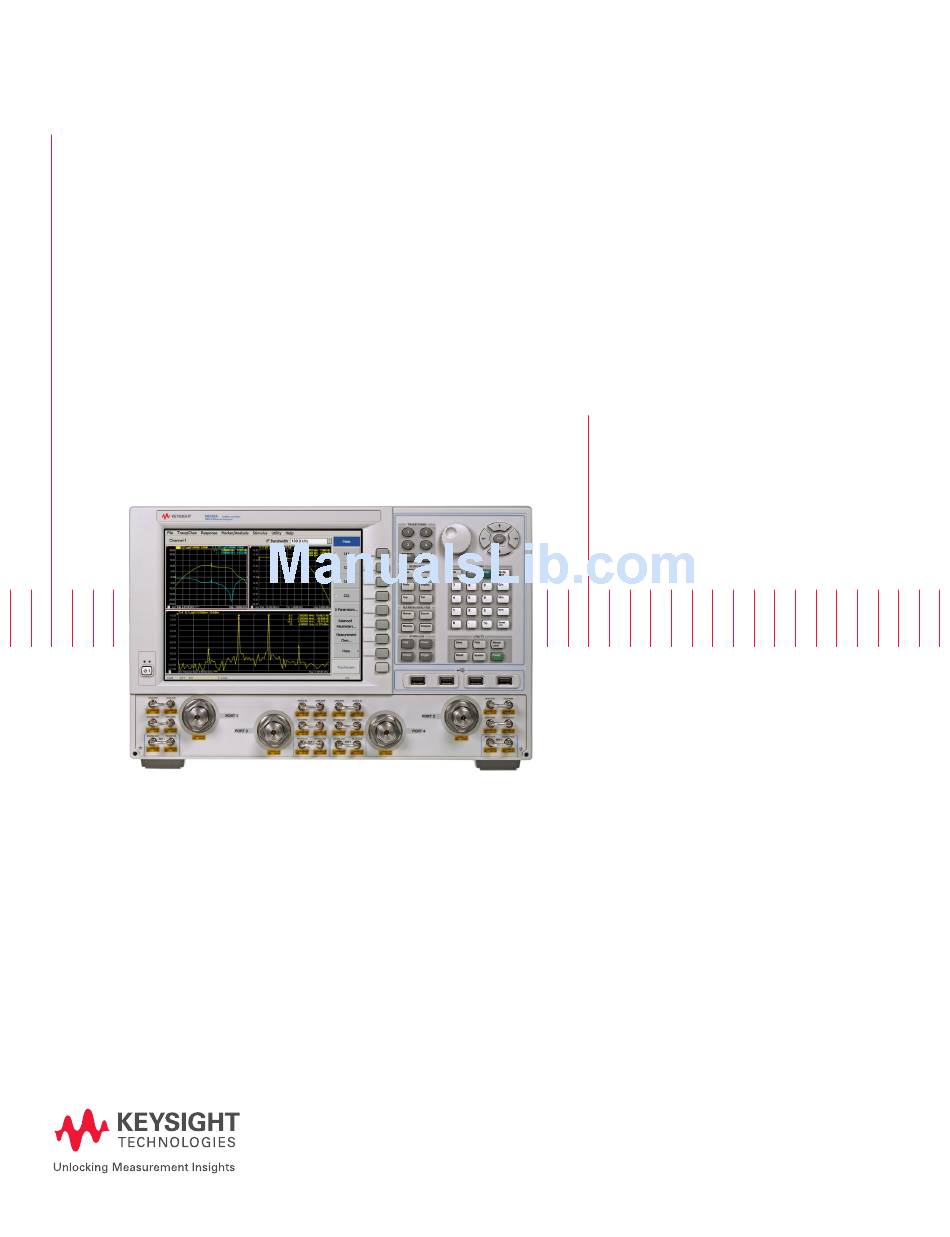

Page 1 Keysight Technologies PNA Family Microwave Network Analyzers Configuration Guide...
Page 2: Table Of Contents
2 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Table of Contents PNA Family Network Analyzer Configurations Test set and power configuration options Application options Accessories, calibration options PNA-X Series test set and power configuration options PNA Series test set and power configuration options...
Page 3 3 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide This configuration guide describes standard configurations, options, accessories, upgrade kits and compatible peripherals for the PNA Family microwave network analyzers. This guide should be used with the Keysight Technologies, Inc. PNA Family data sheets for a complete description of these analyzers.
Page 4 4 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Keysight offers the following options for all PNA Family network analyzers Certification options Documentation Commercial calibration certification with test data (Option UK6) The PNA Series instruments are equipped with an Online Help Complete set of measurements which tests unit to manufacturer’s...
Page 5: Pna Family Network Analyzer Configurations
5 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Network Analyzer Configurations PNA-X Series PNA Series PNA-L Series N5249A 10 MHz to 8.5 GHz N5221A 10 MHz to 13.5 GHz N5239A 300 kHz to 8.5 GHz N5241A 10 MHz to 13.5 GHz...
Page 6: Application Options
For calibration, Option 028 requires a power meter, and Option 029 requires either a power meter or a 346-series noise source (Keysight 346C or 346C-K01 recommended). All options require a power meter for measuring mixers and converters.
Page 7: Accessories, Calibration Options
N523xA-A6J 1. To configure NVNA, requires two comb generators with power supplies, Keysight calibration kits (mechanical or ECal), power meter and sensor or USB power sensor. Requires EXG, MXG or PSG for X-parameter extraction (PNA-X 10 MHz reference output can be used for 10 MHz tone-spacing applications).
Page 8: Pna-X Series Test Set And Power Configuration Options
8 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA-X Series test set and power configuration options Extended power range and bias-tees (Option 219) The PNA-X is an integrated vector network analyzer featuring a built-in S-parameter test set, one or two synthesized sources...
Page 9 9 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA-X Series test set and power configuration options (continued) 4 -port standard test set, power range and an Extended power range and bias-tees internal second source (Option 400)
Page 10: Pna Series Test Set And Power Configuration Options
10 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Series test set and power configuration options The PNA is an integrated vector network analyzer featuring a 2-ports, single source, with extended power range built-in S-parameter test set, one or two synthesized sources...
Page 11 11 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Series test set and power configuration options (continued) 4-ports, dual source, with extended power range 4-ports, dual source, base configuration (Option 417) (Option 400/410) The 4-port with base configuration has no front-panel access The 4-port test set with extended power range comes with loops.
Page 12: Pna-L Series Test Set And Power Configuration Options
12 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA-L Series test set and power configuration options 4 ports, single source, base configuration (Option The PNA-L is an integrated vector network analyzer featuring a built-in S-parameter test set, one synthesized source used for 400) device stimulus, a solid state drive, USB interfaces, and a 10.4”...
Page 13: Pna Family Application Options
13 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Application Options Measurement applications Scalar-calibrated converter measurements (Op- tion 082) Solid black series name indicates the feature is available on that PNA-X PNA-L series, while gray series name with strikethrough indicates the feature is not available on that series.
Page 14 14 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Embedded LO measurements (Option 084) Source phase control (Option 088) PNA-X PNA-L PNA-X PNA-L This option tunes the analyzer’s receivers to the output frequency This option allows users to set calibrated, arbitrary phase of the converter under test without the need for access to internal differences between two signal sources.
Page 15: Noise Figure Options
15 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Application Options (continued) Measurement applications N-port capabilities (Option 551) (continued) PNA-X PNA-L Solid black series name indicates the feature is available Adds a multiport analyzer mode, which enables full N-port error...
Page 16 16 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Application Options (continued) Noise figure options Solid black series name indicates the feature is available on that series, while gray series name with strikethrough indicates the feature is not available on that series. For...
Page 17: Pna-X Block Diagrams With Noise Figure Option
17 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Application Options, continued PNA-X block diagrams with noise figure option IF inputs rear panel +28V Pulse generators Signal combiner Source 2 Noise receivers Source 1 OUT 1...
Page 18: Noise Figure Options Summary
18 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Application Options, continued Noise figure options summary Overview Option 028 Option 029 Description Noise figure application using standard receivers only, for all Noise figure application using standard or low-noise receiv- PNA / PNA-X models.
Page 19: Pulse, Antenna, Mm-Wave
19 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Application Options (continued) Add pulse modulator to internal second source Pulse, antenna, mm-wave (Option 022) PNA-X PNA-L Solid black series name indicates the feature is available on...
Page 20: Accessories
20 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Application Options (continued) Comb Generators Accessories U9391C 10 MHz to 26.5 GHz Solid black series name indicates the feature is available on that U9391F 10 MHz to 50 GHz...
Page 21: Pna Family Network Analyzer Upgrade Kits
21 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Network Analyzer Upgrade Kits Frequency, test ports, test set and power configurations Upgrade kits are available to add options after initial purchase. To upgrade the PNA-X/PNA/PNA-L, order the corresponding item number.
Page 22: Application Options
22 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Network Analyzer Upgrade Kits (continued) Application options Upgrade kits are available to add options after initial purchase. To upgrade the PNA-X/PNA/PNA-L, order the corresponding item number. The model and serial numbers of the instrument to be retrofitted are required as part of the order.
Page 23 23 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Network Analyzer Upgrade Kits (continued) Application options Upgrade kits are available to add options after initial purchase. To upgrade the PNA-X/PNA/PNA-L, order the corresponding item number. The model and serial numbers of the instrument to be retrofitted are required as part of the order.
Page 24: Upgrade Paths
24 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide PNA Family Network Analyzer Upgrade Kits (continued) Upgrade paths PNA-X upgrade path Frequency 2-ports 4-ports 8 5 G z N5249AU-913 13.5 GHz 219/029 419/029 N5241AU-960 26.5 GHz N5249AU-960...
Page 25: Applications
25 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Applications Multiport measurements Material measurements Multiport test sets are designed to work with the PNA family of 85070E High-Temperature Dielectric Probe Kit network analyzers to provide network analysis with a single set The 85070E enables measurements of the dielectric properties of connections for devices that have multiple ports.
Page 26 26 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Test set options Millimeter-wave measurements One of the following test set options must be selected. Single sweep solution to 110 GHz Standard configuration (Option 700) The 67 GHz PNA and PNA-X network analyzers allow extending –...
Page 27: Measurement Accessories
27 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Measurement Accessories Calibration kits Coaxial measurements A complete list of RF and microwave test accessories is available Mechanical calibration kits include standards, such as opens, on our Web site: shorts and loads, which are measured by the network analyzer for www.keysight.com/find/accessories...
Page 28: For Devices With 1.0 Mm Connectors
28 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide For devices with 1.0 mm connectors For devices with 1.85 mm connectors Mechanical calibration/verification kit Mechanical calibration kit 85059A DC to 110 GHz precision calibration/verification kit. 85058B standard: DC to 67 GHz. Includes: Includes: –...
Page 29: For Devices With 2.4 Mm Connectors
29 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide For devices with 2.4 mm connectors – 85133F set, flexible: One 2.4 mm (f) to 2.4 mm (f), 63 cm, 25 inches, Mechanical calibration kit p/n 85133-60016 85056A standard: DC to 50 GHz. Includes: One 2.4 mm (f) to 2.4 mm (m), 63 cm, 25 inches,...
Page 30: For Devices With 3.5 Mm, Sma, Or 2.92 Mm Connectors
Cables calibration refresh module – 85532B 20 GHz Thermal-vacuum compatible CalPod Note: Keysight offers the following 2.4 mm test port cables. Adapters will be necessary when using these cables for 2.92 mm measurements. calibration refresh module – 85540A 40 GHz Ambient temperature CalPod calibration –...
Page 31: For Devices With 3.5 Mm Or Sma Connectors
31 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide For devices with 3.5 mm or SMA connectors 85093C-xxx mixed-connector options: Port A option Port B option Mechanical calibration kits Type Type Type 85052B standard: DC to 26.5 GHz. Includes: 3.5 mm...
Page 32 32 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Cables – 85131C single, semi-rigid: 3.5 mm (f) to PSC-3.5 mm (f), 81 cm, 32 inches – 85131D set, semi-rigid: – One 3.5 mm (f) to 3.5 mm (m), 53 cm, 21 inches, p/n 85131-60009 –...
Page 33: For Devices With Type-N Connectors
33 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide For devices with Type-N connectors N4431B-xxx mixed-connector options: Connector type Port A Port B Port C Port D Mechanical calibration kits option option option option 85054B standard: DC to 18 GHz. Includes: 3.5 mm (f)
Page 34: For Devices With 7 Mm Connectors
34 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide For devices with 7 mm connectors For devices with waveguide Mechanical calibration kits Mechanical calibration kits 85050B standard: DC to 18 GHz. Includes: X Band – 00909-60008 7 mm coax termination X11644A standard, WR-90: 8.2 to 12.4 GHz.
Page 35: Verification Kits
35 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Verification kits Q Band Q11644A standard, WR-22: 33 to 50 GHz. Includes: All Keysight verification kits include: – 11644-60005 Q-band termination – precision Z airline or match thru –...
Page 36: Probe
– 82357B GPIB to USB interface For the latest guide to power meters and power sensors, refer to the Keysight web site: www.keysight.com/find/powermeters 5063-9224 is a complete rack mount kit with handles. N52xxA comes with ruggedized handles, which must be replaced with classic handles...
Page 37 37 | Keysight | PNA Family Microwave Network Analyzers - Configurations Guide Evolving Since 1939 For more information on Keysight Technologies’ products, applications or Our unique combination of hardware, software, services, and people can help you services, please contact your local Keysight reach your next breakthrough.
