Description of the Upgrade
Installation Procedure for the Upgrade
Step 15. Remove the Old
Assembly and Cables
This section contains the following:
—
—
A. Remove the DDS Cables
For the semirigid cables, follow the two instructions shown in
— These cables (W1 N5240-20124 and W51 N5240-20125) must be saved -
— Remove any gray cables connected to the DDS assembly and note their

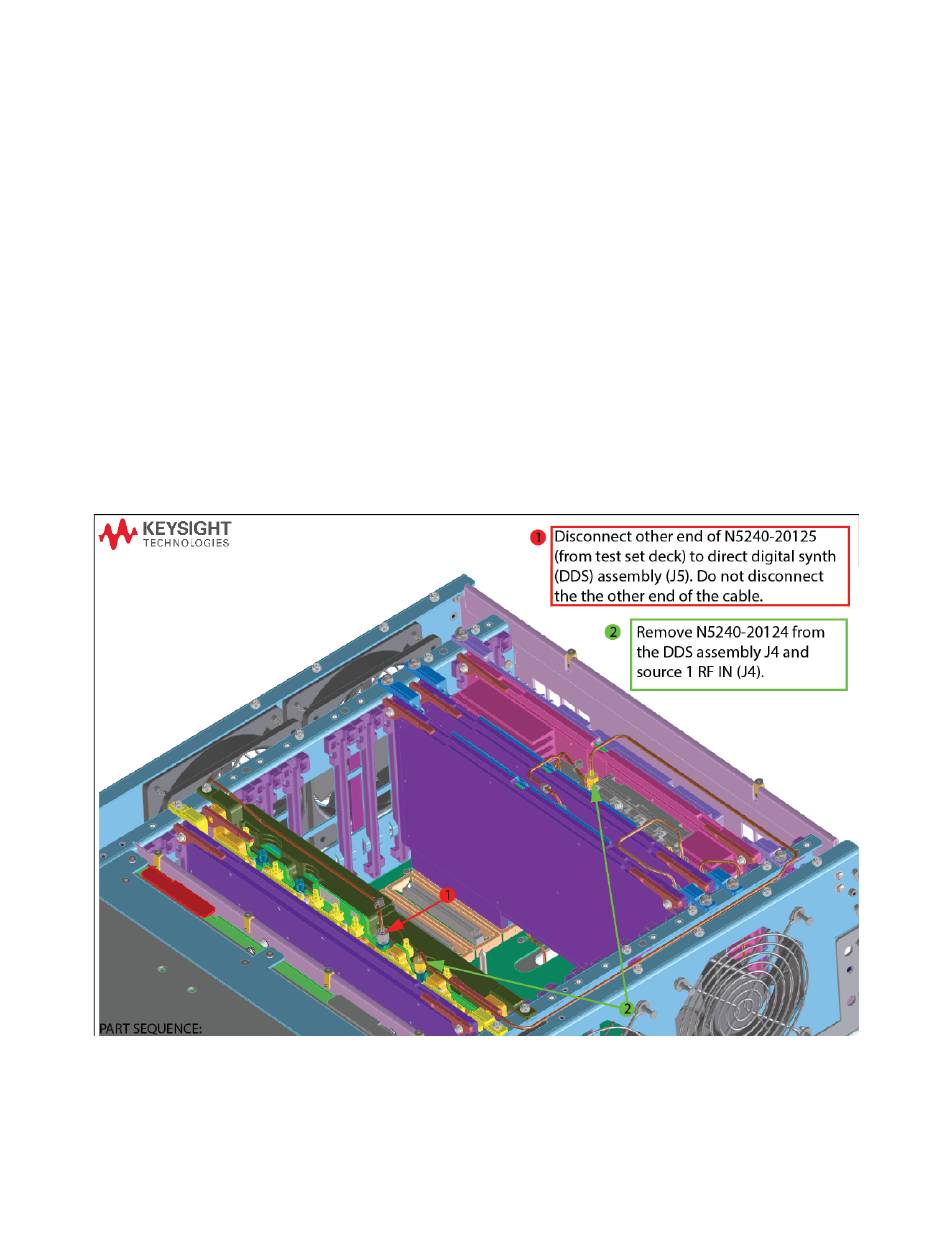

Figure 10 Remove the DDS Semirigid Cables (N5240-20124, N5240-20125)
Installation Note N5225-90136
A15 (x2) Direct Digital Synthesizer (DDS)
"A. Remove the DDS Cables"
"B. Remove the DDS Assembly"
they will be reinstalled.
location. They will be re-connected in
Direct Digital Synthesizer (DDS) Assembly and
Figure
"Step 19. Install the *NEW* A15 (x4)
Cables".
10.
