Keysight N5224B Installation Manual page 33

Add 4-port capability for version 7 synthesizers

Hide thumbs Also See for N5224B:

Description of the Upgrade

Installation Procedure for the Upgrade

Step 17. Assemble the A10 26.5 GHz Source 2 Assembly

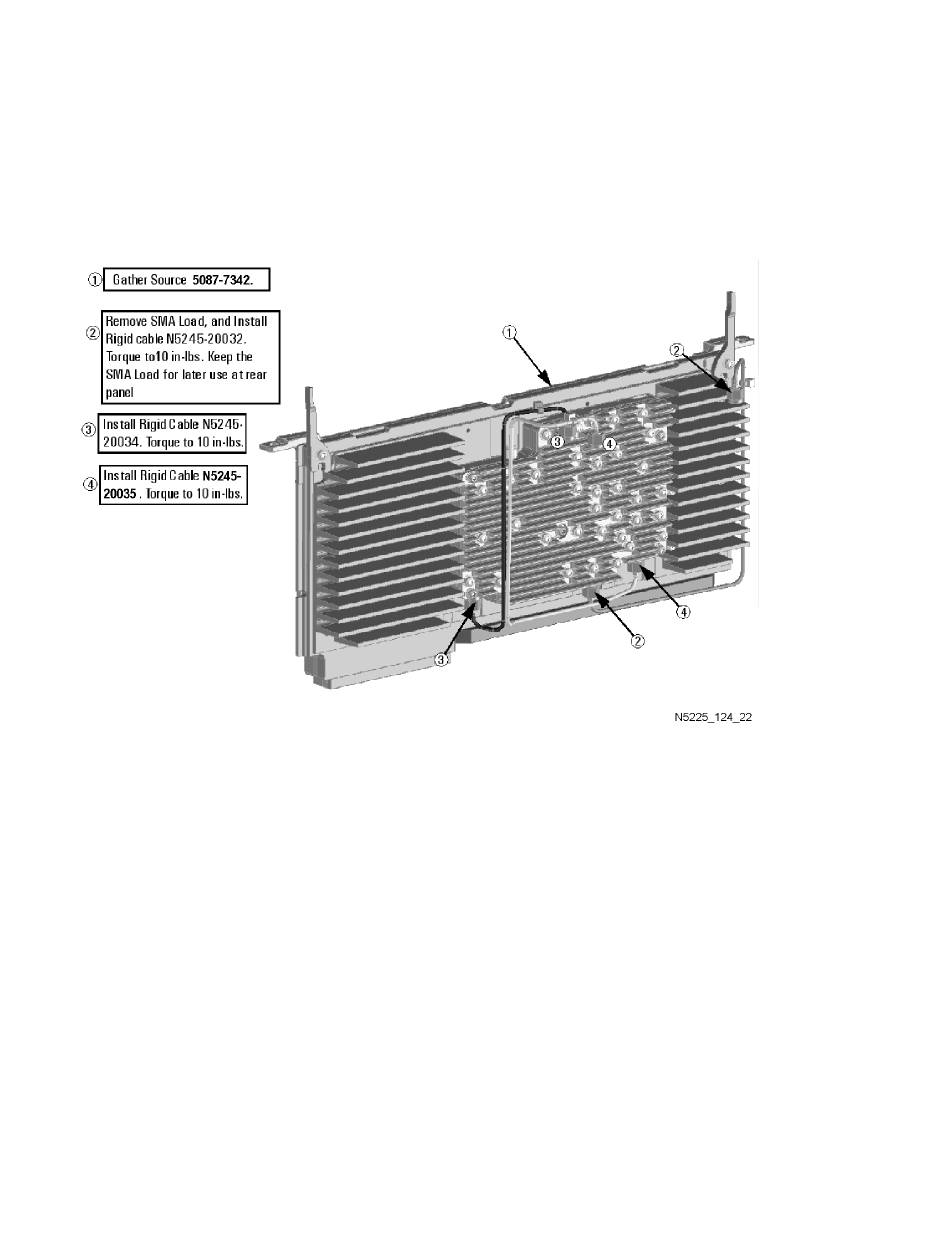

Follow the two instructions shown in

Figure 14

A10 Source 2 Assembly (5087-7342, N5245-20032, N5245-20023,

N5245-20035)

Installation Note N5225-90136

Figure

14.
