Description of the Upgrade
Installation Procedure for the Upgrade

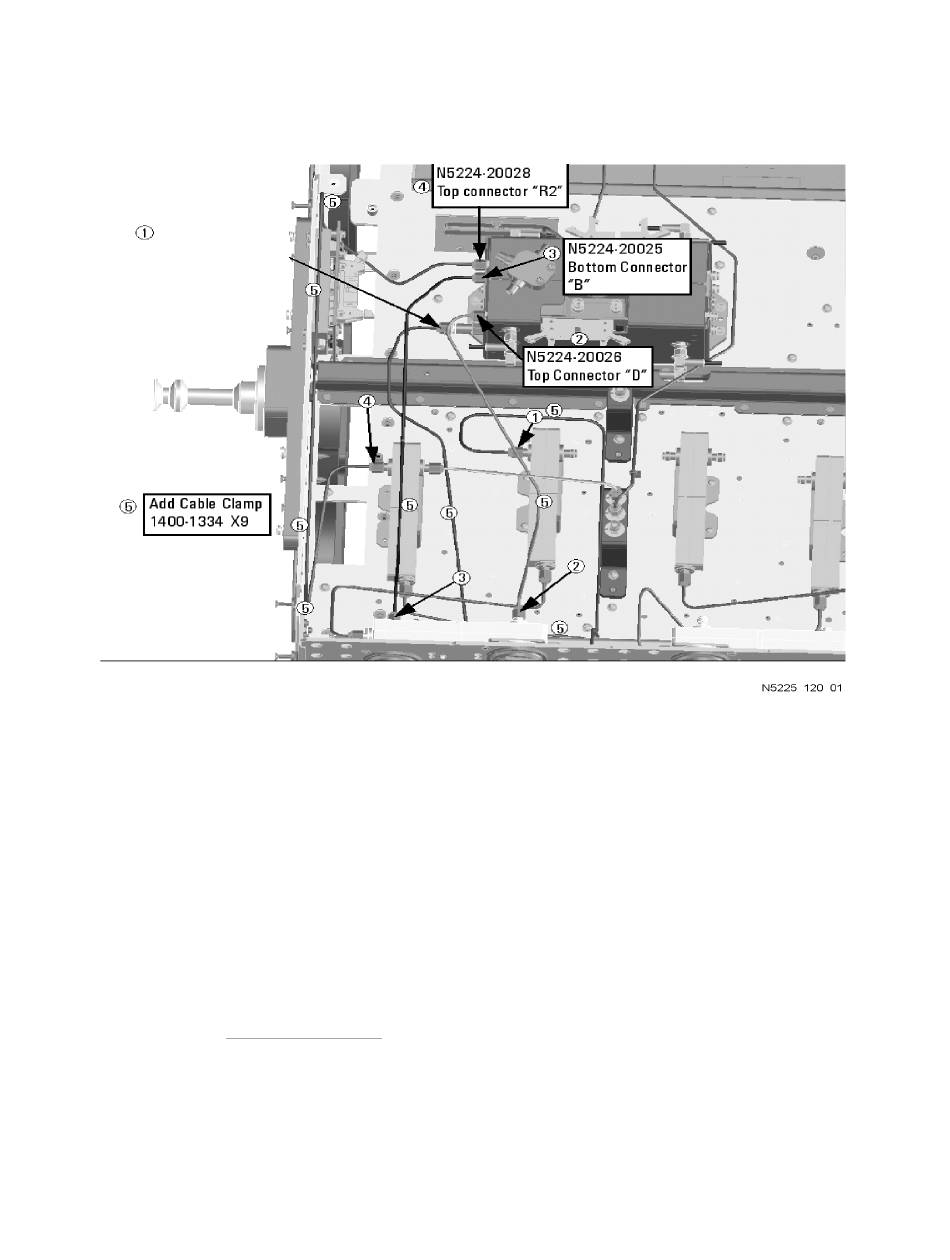

Figure 20 Location of Cable Clamps for W109 (N5224-20047), W110 (N5224-20028),
W117 (N5224-20026), and W118 (N5224-20025)
N5224-20047
bottom
connector R4
— W18 (reuse) (N5245-20111) A32 port 2 reference coupler to W17
— W116 (N5224-20023) A34 port 3 coupler to A28 mixer brick (C)
The A26 splitter (5067-4086) and N5245-20013, N5245-20022, N5245-20023, N545-20101, and
1.
N5245-20150 cables are only used with a legacy HMA26.5 p/n: 5087-7765. If you are unclear
which HMA26.5 assembly your PNA has installed, refer to Chapter 7 Repairs and
and for details on A26 splitter and cabling, refer to your option-model in Chapter 6"2-Port Config-
urations, Serial Number Prefix <6021" and "4-Port Configuration, Serial Number Prefix <6021".
2. Attenuator 08490-60039 is shown in the figure, but is not included in this upgrade and not required with the
A28 mixer brick (5087-7417).
Installation Note N5225-90136
* As shown in Figure 21, install clamp (part number 1400-1334) to secure
W116 (N5224-20023).
1, 2
Figure 1 on page 7
