Keysight N5224B Installation Manual page 21

Description of the Upgrade
Installation Procedure for the Upgrade
3. If the PNA contains legacy HMA26.5 p/n: 5087-7765, follow the

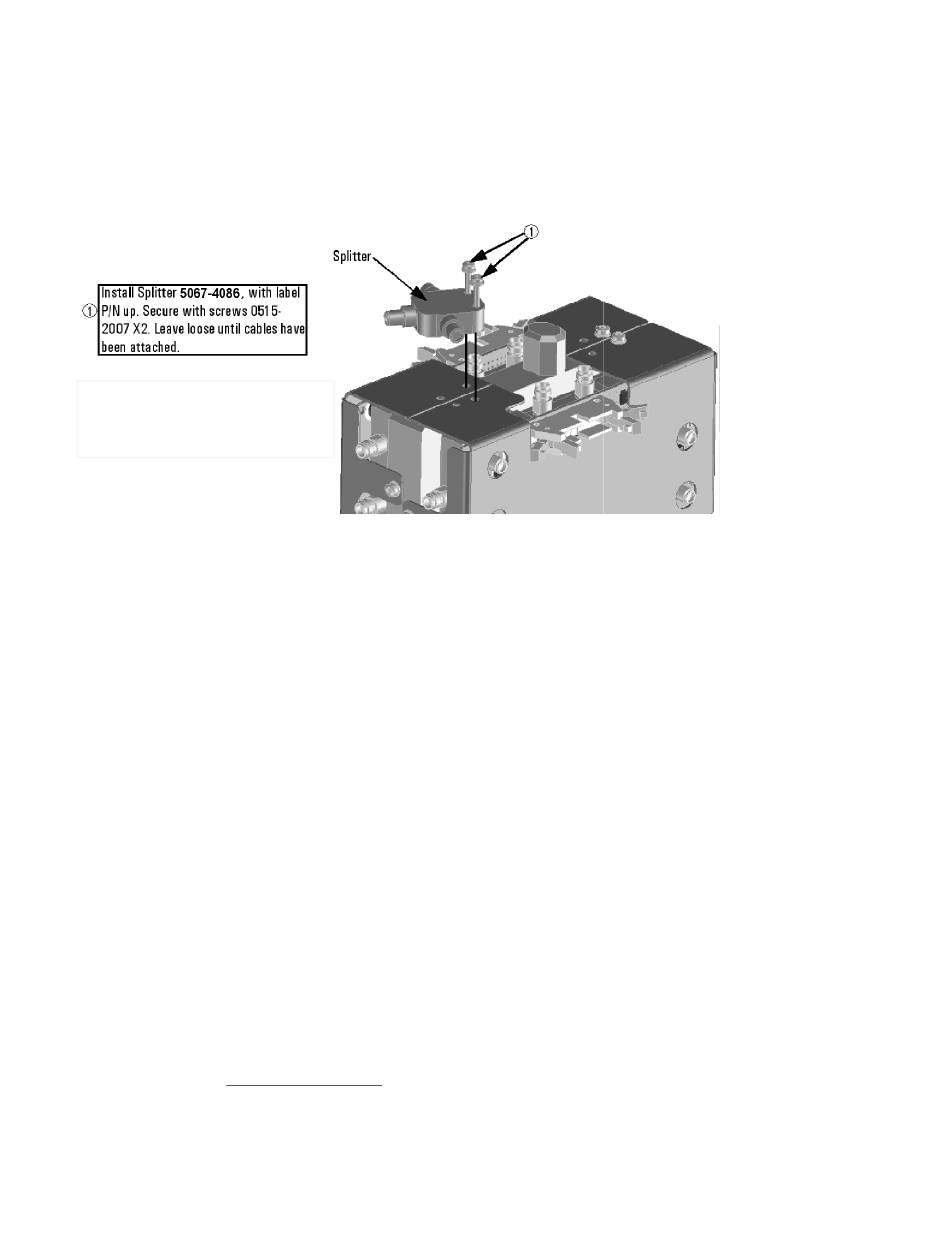

Figure 4 A26 and A27 Test Port Bridge Assembly (5067-4086
1. The A26 splitter (5067-4086) and N5245-20013, N5245-20022, N5245-20023, N545-20101, and
N5245-20150 cables are only used with a legacy HMA26.5 p/n: 5087-7765. If you are unclear which
HMA26.5 assembly your PNA has installed, refer to Chapter 7 Repairs and
on A26 splitter and cabling, refer to your option-model in Chapter 6"2-Port Configurations, Serial Number
Prefix <6021" and "4-Port Configuration, Serial Number Prefix <6021".
Installation Note N5225-90136
instructions shown in
newer HMA26.5 p/n: N5240-60101.
Figure 4. Skip this step if the PNA contains the
Figure 1 on page 7
1
, 0515-2007)
and for details
21
