Keysight N5224B Installation Manual page 19

Add 4-port capability for version 7 synthesizers

Hide thumbs Also See for N5224B:

Description of the Upgrade

Installation Procedure for the Upgrade

Step 8. Assemble the A28 Mixer Brick Assembly

1. Follow the instructions shown in

Figure 2

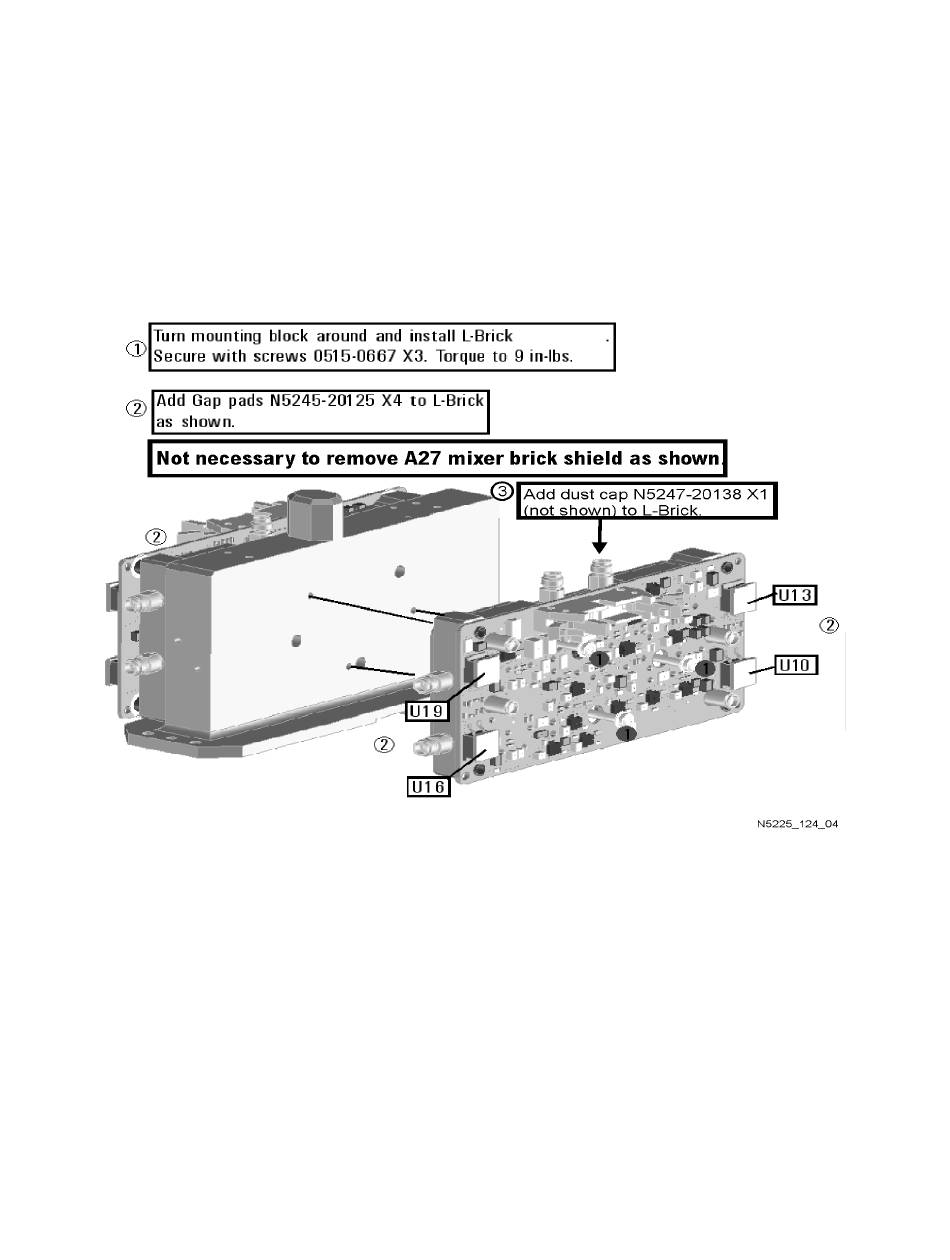

A28 Mixer Brick Assembly (5087-7417, 0515-0667, N5245-20125,

N5247-20138)

Installation Note N5225-90136

page 10

of this document.

Figure

New parts are listed in

5087-7417

Table 1 on
