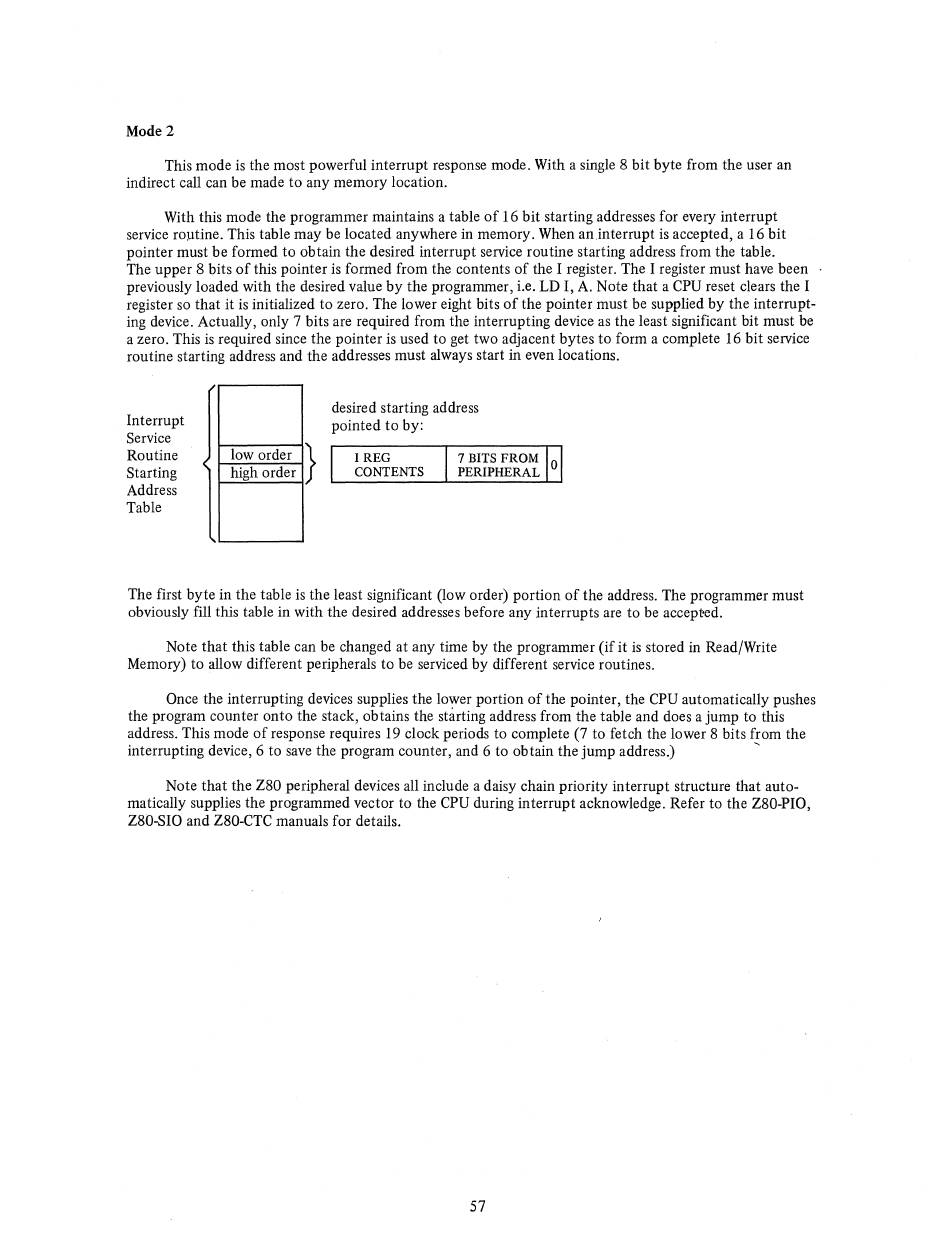

Mode 2
This mode is the most powerful interrupt response mode. With a single 8 bit byte from the user an
indirect call can be made to any memory location.
With this mode the programmer maintains a table of 16 bit starting addresses for every interrupt
service routine. This table may be located anywhere in memory. When an interrupt is accepted, a 16 bit
pointer must be formed to obtain the desired interrupt service routine starting address from the table.
The upper 8 bits of this pointer is formed from the contents of the I register. The I register must have been
previously loaded with the desired value by the programmer, i.e. LD I, A. Note that a CPU reset clears the I
register so that it is initialized to zero. The lower eight bits of the pointer must be supplied by the interrupt-
ing device. Actually, only 7 bits are required from the interrupting device as the least significant bit must be
a zero. This is required since the pointer is used to get two adjacent bytes to form a complete 16 bit service
routine starting address and the addresses must always start in even locations.
Interrupt
Service
Routine
Starting
Address
Table
<
low order }
high order
desired starting address
pointed to by:
I REG
CONTENTS
7 BITS FROM
PERIPHERAL
The first byte in the table is the least significant (low order) portion of the address. The programmer must
obviously fill this table in with the desired addresses before any interrupts are to be
accep~ed.
Note that this table can be changed at any time by the programmer (if it is stored in Read/Write
Memory) to allow different peripherals to be serviced by different service routines.
Once the interrupting devices supplies the lower portion of the pointer, the CPU automatically pushes
the program counter onto the stack, obtains the starting address from the table and does a jump to this
address. This mode of response requires 19 clock periods to complete (7 to fetch the lower 8 bits from the
interrupting device, 6 to save the program counter, and 6 to obtain the jump address.) ,
Note that the Z80 peripheral devices all include a daisy chain priority interrupt structure that auto-
matically supplies the programmed vector to the CPU during interrupt acknowledge. Refer to the Z80-PIO;
Z80-SIO and Z80-CTC manuals for details.
57
