INSTRUCTION FETCH

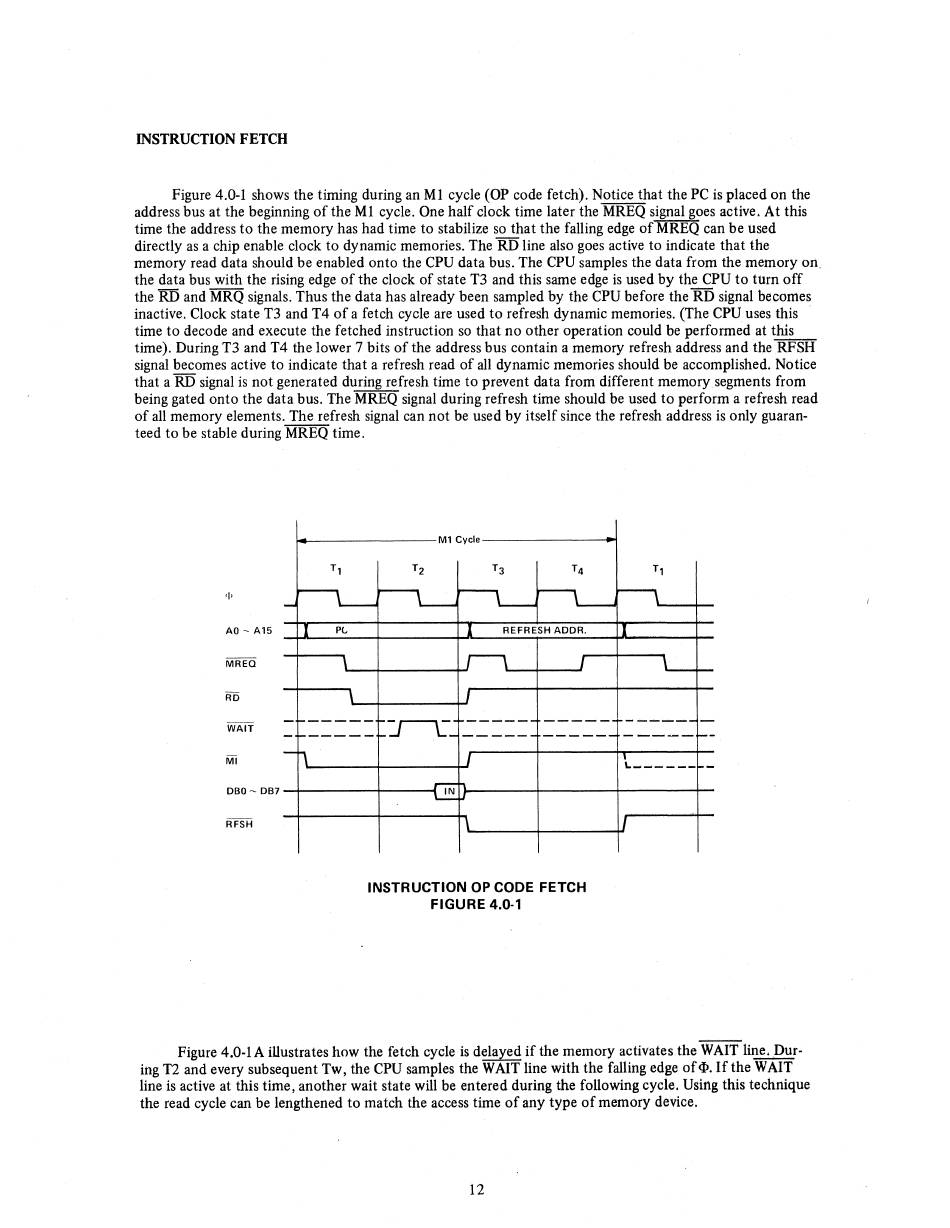

Figure 4.0-1 shows the timing during an Ml cycle (OP code fetch). Notice that the PC is placed on the
address bus at the beginning of the Ml cycle. One half clock time later the MREQ signal goes active. At this
time the address to the memory has had time to stabilize so that the falling edge of MREQ can be used
directly as a chip enable clock to dynamic memories. The RD line also goes active to indicate that the
memory read data should be enabled onto the CPU data bus. The CPU samples the data from the memory on.
the data bus with the rising edge of the clock of state T3 and this same edge is used by the CPU to turn off
the RD and MRQ signals. Thus the data has already been sampled by the CPU before the RD signal becomes
inactive. Clock state T3 and T4 of a fetch cycle are used to refresh dynamic memories. (The CPU uses this .
time to decode and execute the fetched instruction so that no other operation could be performed at this
time). During T3 and T4 the lower 7 bits of the address bus contain a memory refresh address and the
RFSH
signal becomes active to indicate that a refresh read of all dynamic memories should be accomplished. Notice
that a RD signal is not generated during refresh time to prevent data from different memory segments from
being gated onto the data bus. The MREQ signal during refresh time should be used to perform a refresh read
of all memory elements. The refresh signal can not be used by itself since the refresh address is only guaran-
teed to be stable during MREQ time.
....
AO - A15
-
-
OBO- OBl
M1 Cycle
T1 T2 T3
T4
r--t-
r-----t-
~
~
I p(.
I
REFRESH AOOR.
\
r
\
I
f-o-----
~:r---L_
------
-----
f-o----- ------
------
h
I
'li\jl-\
L.:.:.:.iJ
\
INSTRUCTION OP CODE FETCH
FIGURE 4.0-1
T1
r-----,
T
1
------
-
-----
1---
l ______
-
II
Figure 4.0-1 A illustrates how the fetch cycle is delayed if the memory activates. the WAIT line. Dur-
ing 1'2 and every subsequent Tw, the CPU samples the WAIT line with the falling edge of «1>. If the WAIT
line is active at this time, another wait state will be entered during the following cycle. Using this technique
the read cycle can be lengthened to match the access time of any type of memory device.
