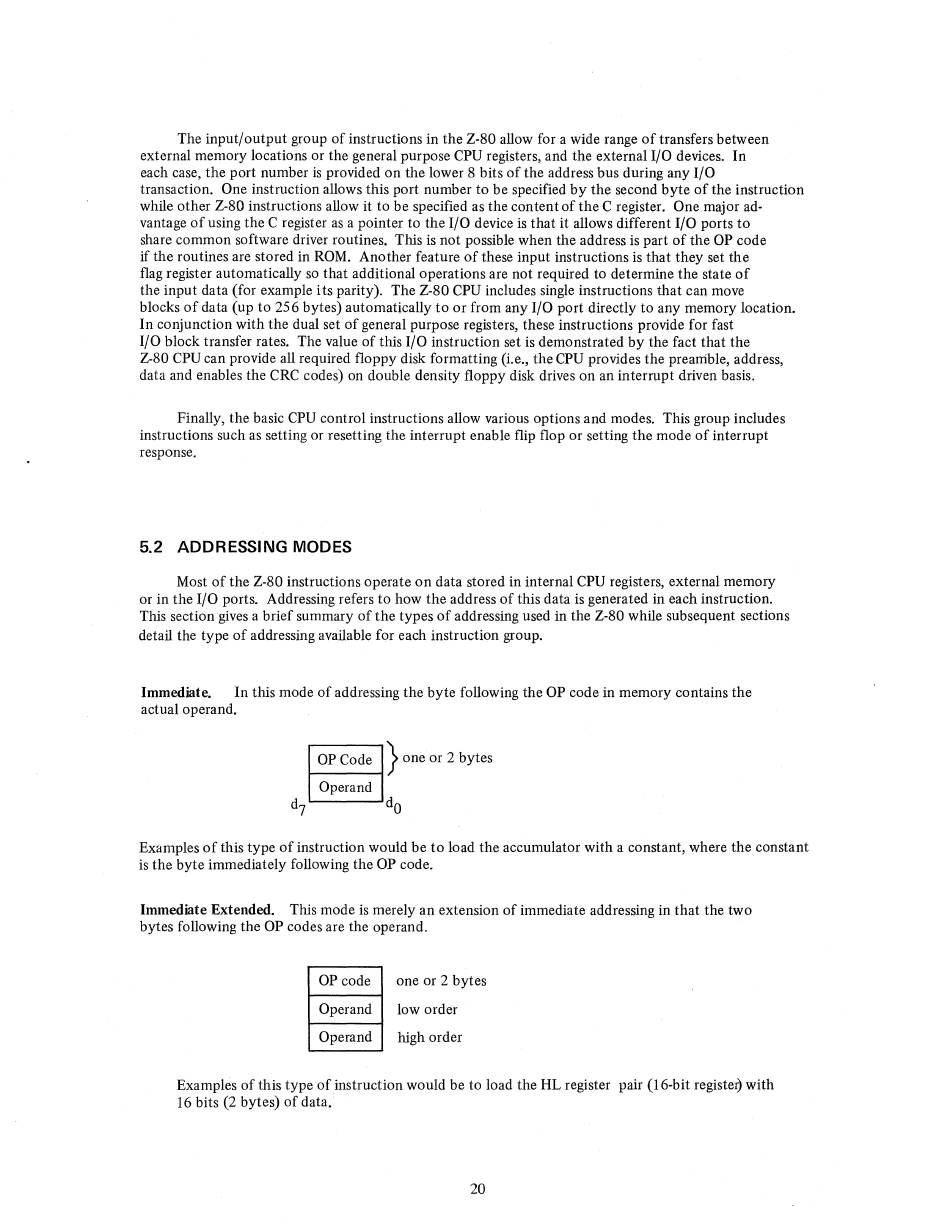

The input/output group of instructions in the Z-80 allow for a wide range of transfers between
external memory locations or the general purpose CPU registers, and the external I/O devices. In
each case, the port number is provided on the lower 8 bits of the address bus during any I/O
transaction. One instruction allows this port number to be specified by the second byte of the instruction
while other Z-80 instructions allow it to be specified as the content of the C register. One major ad-
vantage of using the C register as a pointer to the I/O device is that it allows different I/O ports to
share common software driver routines. This is not possible when the address is part of the OP code
if the routines are stored in ROM. Another feature of these input instructions is that they set the
flag register automatically so that additional operations are not required to determine the state of
the input data (for example its parity). The Z-80 CPU includes single instructions that can move
blocks of data (up to 256 bytes) automatically to or from any I/O port directly to any memory location.
In conjunction with the dual set of general purpose registers, these instructions provide for fast
I/O block transfer rates. The value of this I/O instruction set is demonstrated by the fact that the
Z-80 CPU can provide all required floppy disk formatting (i.e., the CPU provides the preamble, address,
data and enables the CRC codes) on double density floppy disk drives on an interrupt driven basis.
Finally, the basic CPU control instructions allow various options and modes. This group includes
instructions such as setting or resetting the interrupt enable flip flop or setting the mode of interrupt
response.
5.2 ADDRESSING MODES
Most of the Z-80 instructions operate on data stored in internal CPU registers, external memory
or in the I/O ports. Addressing refers to how the address of this data is generated in each instruction.
This section gives a brief summary of the types of addressing used in the Z-80 while subsequent sections
detail the type of addressing available for each instruction group.
Immediate. In this mode of addressing the byte following the OP code in memory contains the
actual operand.
OP Code } one or 2 bytes
Operand
Examples of this type of instruction would be to load the accumulator with a constant, where the constant
is the byte immediately following the OP code.
Immediate Extended. This mode is merely an extension of immediate addressing in that the two
bytes following the OP codes are the operand.
OP code one or 2 bytes
Operand low order
Operand high order
Examples of this type of instruction would be to load the HL register pair (l6-bit register) with
16 bits (2 bytes) of data:
