3.1.7

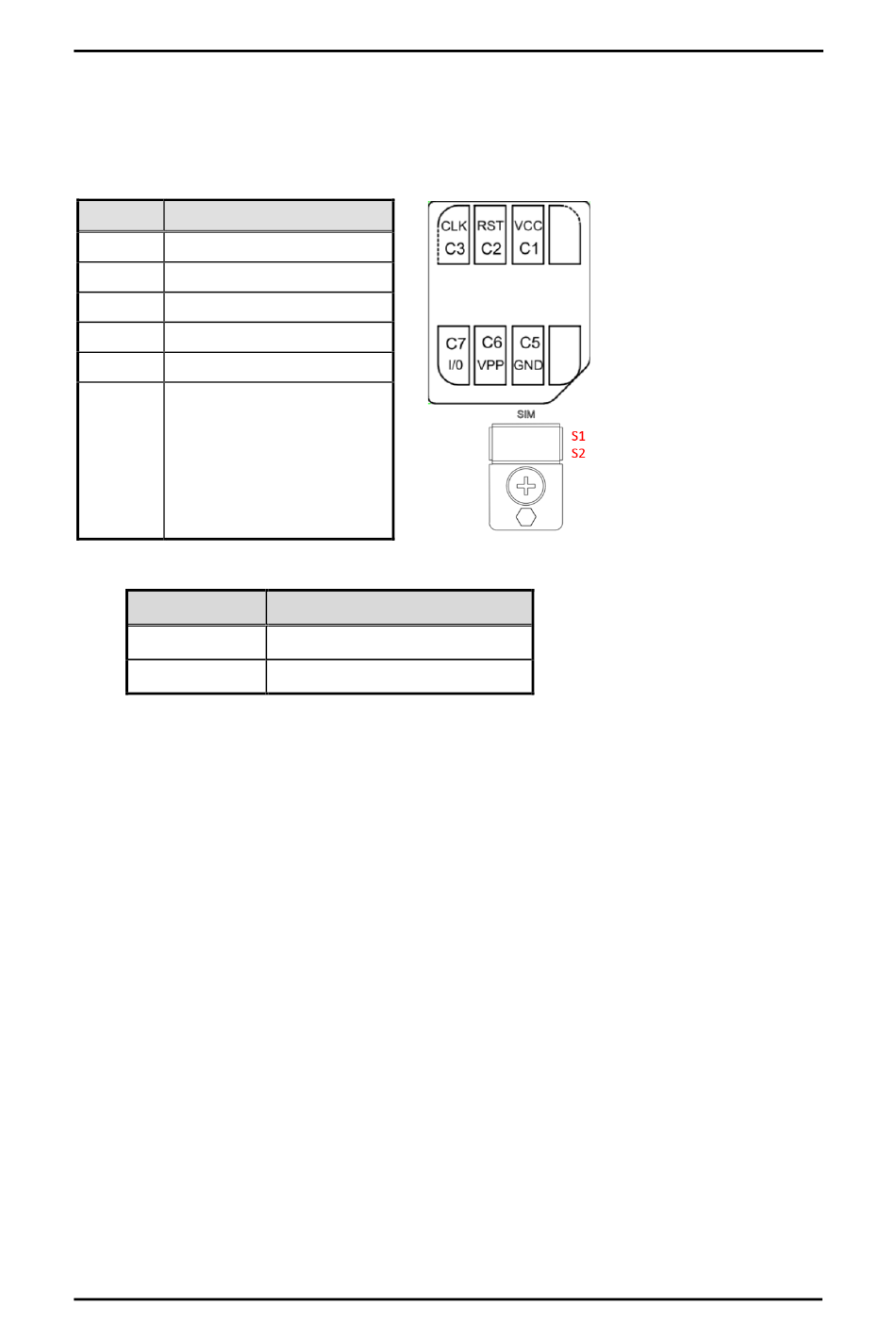

NanoSIM Card Connector
The NanoSIM Card slot is an ISO 7816 standard 6-pin connector for the PCI
Express M.2/Mini Card.
Pin
Signal
C1
SIM_PWR
C2
SIM_RESET
C3
SIM_CLK
C5
GND
C6
SIM_VPP
C7
SIM_DATA
SIM slot
S1
S2
Connector
Wireless module insert slot
CN8
CN10
tBOX520-ADL-MR Series User's Manual
19
