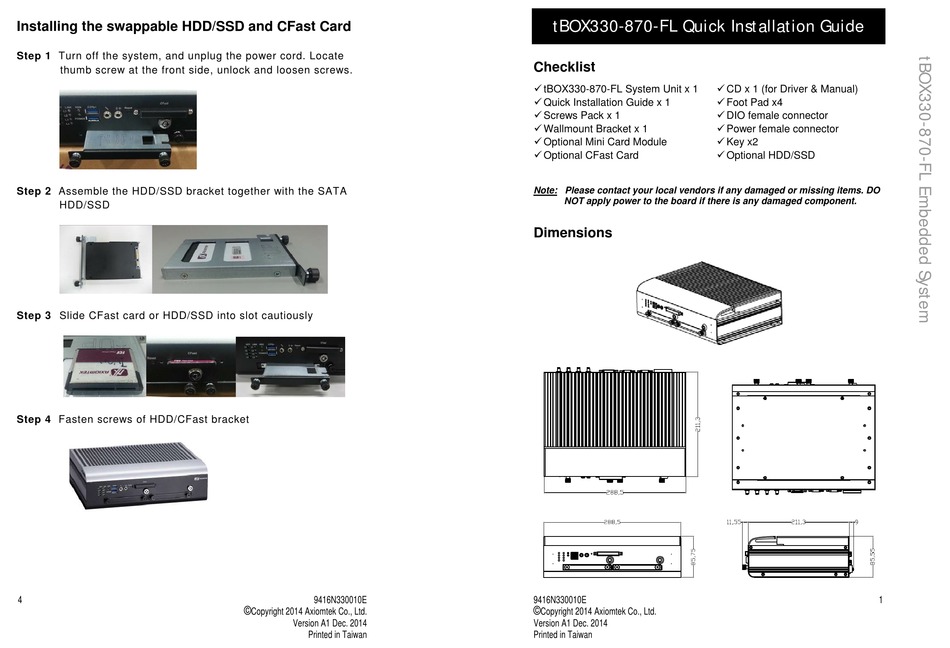

AXIOMTEK tBOX330-870-FL Quick Installation Manual

Installing the swappable HDD/SSD and CFast Card

Step 1 Turn off the system, and unplug the power cord. Locate
thumb screw at the front side, unlock and loosen screws.
Step 2 Assemble the HDD/SSD bracket together with the SATA
HDD/SSD
Step 3 Slide CFast card or HDD/SSD into slot cautiously
Step 4 Fasten screws of HDD/CFast bracket
4 9416N330010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 Dec. 2014
Printed in Taiwan
tBOX330-870-FL Quick Installation Guide

Checklist

 tBOX330-870-FL System Unit x 1
 Quick Installation Guide x 1
 Screws Pack x 1
 Wallmount Bracket x 1
 Optional Mini Card Module
 Optional CFast Card
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.

Dimensions

9416N330010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 Dec. 2014
Printed in Taiwan
 CD x 1 (for Driver & Manual)
 Foot Pad x4
 DIO female connector
 Power female connector
 Key x2
 Optional HDD/SSD
1
