tBOX520-ADL-MR Series User's Manual

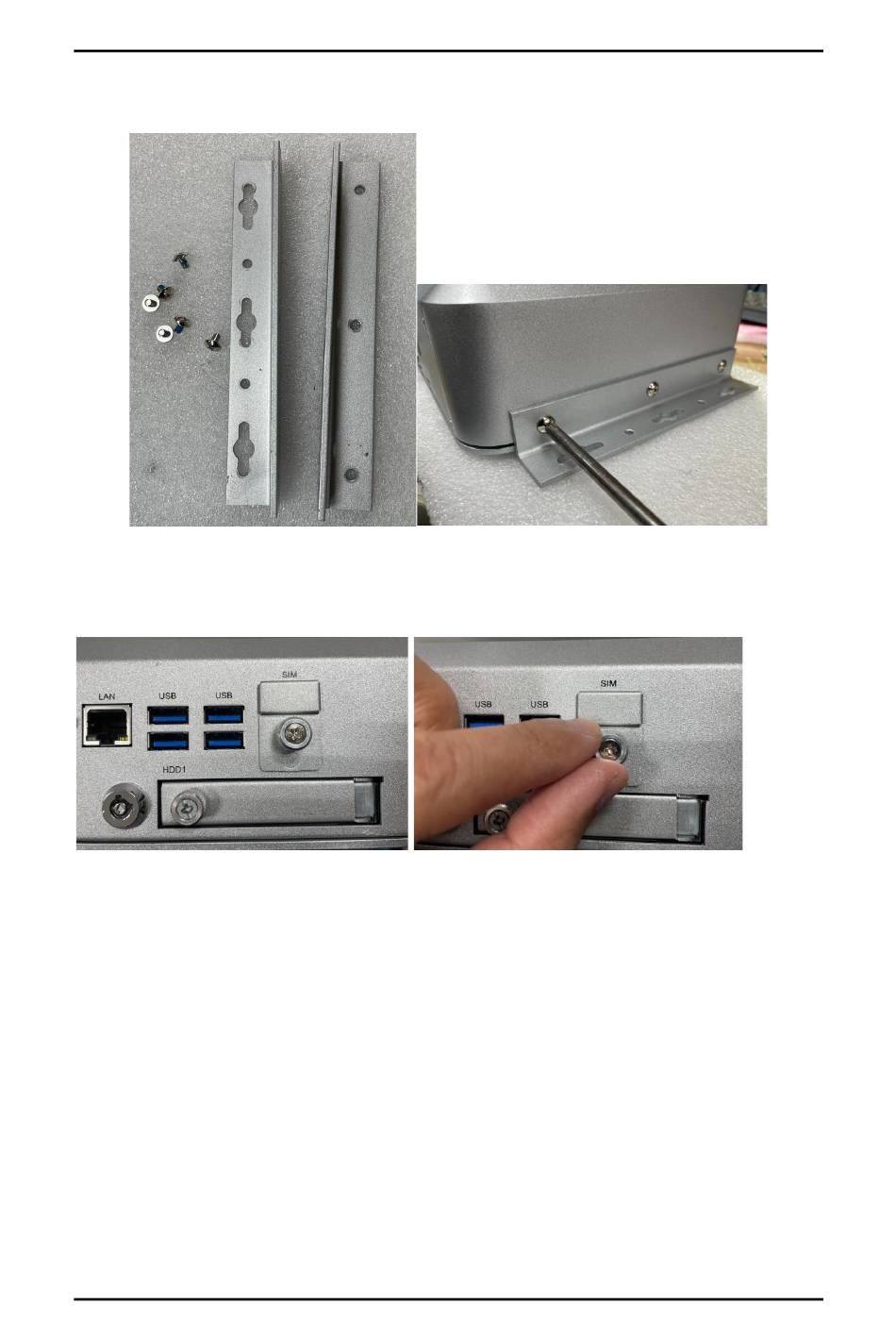

Step 4 Attach the wall mount to the system and fasten the screws tightly as
shown below to complete the installation.
2.4

Installing the Wireless Module

Step 1 Loosen the screw and remove
10
the cover.
Hardware Installation
