tBOX520-ADL-MR Series User's Manual
3.1.2

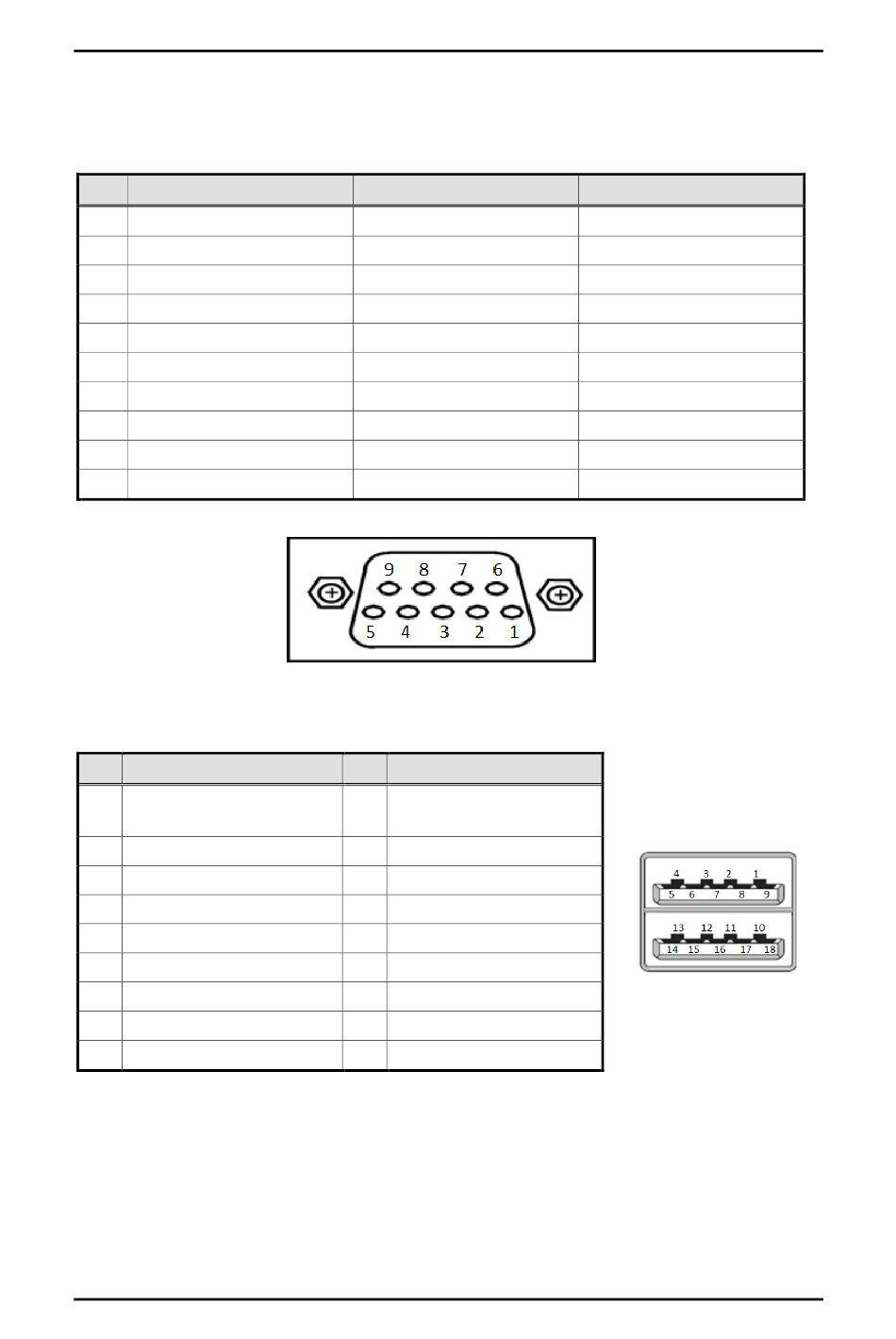

Serial Port Connector
The COM1 port connector is a DB9 connector. The pin assignment of RS-232/RS-422/RS-
485 is listed in the following table. If you need the COM port to support RS-422 or RS-485,
please set it up in BIOS settings.
Pin
RS-232
1
DCD, Data carrier detect
2
RXD, Receive data
3
TXD, Transmit data
4
DTR, Data terminal ready
5
GND, ground
6
DSR, Data set ready
7
RTS, Request to send
8
CTS, Clear to send
9
RI, Ring indicator
10
NC
3.1.3
USB3.1 Stack Ports
Pin
Signal USB Port 0
USB_VCC (+5V level
1
standby power)
2
USB_Data2-
3
USB_Data2+
4
GND
5
SSRX2-
6
SSRX2+
7
GND
8
SSTX2-
9
SSTX2+
16
RS-422
TX-
TX+
RX+
RX-
GND, ground
NC
NC
NC
NC
NC
COM
Pin
Signal USB Port 1
USB_VCC (+5V level
10
standby power)
11
USB_Data3-
12
USB_Data3+
13
GND
14
SSRX3-
15
SSRX3+
16
GND
17
SSTX3-
18
SSTX3+
RS-485
Data-
Data+
NC
NC
GND, ground
NC
NC
NC
NC
NC
Connector
