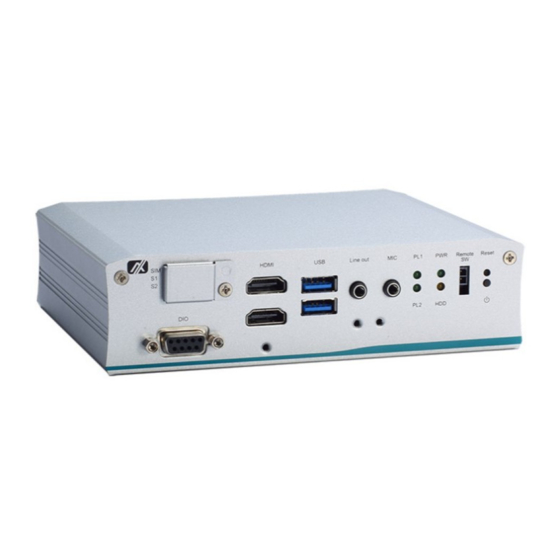

tBOX110-APL-TV
Embedded System
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tBOX110-APL-TV and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK tBOX110-APL-TV

Summary of Contents for AXIOMTEK tBOX110-APL-TV

  • Page 1 Embedded System User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The tBOX110-APL-TV does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. Be sure to ground yourself to prevent static charge when installing the internal components.

  • Page 4: Classification

    Classification Degree of production against electric shock: not classified Degree of protection against the ingress of water: IP20 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Mode of operation: Continuous Type of protection against electric shock: Class I equipment General Cleaning Tips You may need the following precautions before you begin to clean the computer .
  • Page 5 Cleaning Tools Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals.

  • Page 6: Scrap Computer Recycling

    Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. ®...

  • Page 7: Table Of Contents

    Table of Contents Safety Precautions ....................iii Classification......................iv General Cleaning Tips ..................iv Scrap Computer Recycling .................. vi SECTION 1 INTRODUCTION .................. 1 General Description ................1 System Specifications ............... 2 1.2.1 CPU ........................2 1.2.2 BIOS ........................2 1.2.3 System Memory ....................
  • Page 8 APPENDIX A WATCHDOG TIMER ..............41 About Watchdog Timer ................... 41 How to Use Watchdog Timer ................41 APPENDIX B POWER BUTTON SETTING FOR WINDOWS SOFTWARE . 43 viii...

  • Page 9: Section 1 Introduction

    (1.6GHz/4-cores) processor, while also supporting an industrial operating temperature range from -40°C to +70°C. The tBOX110-APL-TV offers a wide selection of I/O functions, including 2 x USB, 2 x HDMI, 2 x LAN, 2 x COM port, 2 x CANBUS and 1 x DIO. Its compact size makes it suitable for DIN-rail or wall mount, allowing for easy installation into ®...

  • Page 10: System Specifications

    ◼ CE and FCC certified ◼ Supports TPM 2.0 ⚫ Embedded O.S. Supported ® ◼ The tBOX110-APL-TV supports Windows 10 and Linux Ubuntu 20.04 System Specifications 1.2.1 ⚫ Onboard Intel Atom® Apollo Lake-I x5-E3940 processor (1.6 GHz/4-cores). 1.2.2 BIOS ⚫...

  • Page 11: Ethernet Ports

    User’s Manual 1.2.5 Ethernet Ports ⚫ LAN chip: Intel Ethernet Controller i210-IT. ⚫ 2 x RJ-45 connectors support 10/100/1000 Base-T Ethernet with 1.5KV magnetic isolated protection. 1.2.6 Remote SW ⚫ 1 x SW CN for remote control. 1.2.7 Storage ⚫...

  • Page 12: Power

    User’s Manual 1.2.11 Power ⚫ Wide-range 9 - 36VDC (typical 12/24VDC) power input with terminal block. ⚫ OVP and RVP protection. ⚫ Supports Axiomtek Smart Ignition. Signal 1.2.12 RJ45 LAN Connector (LAN1-2) ⚫ The RJ-45 LAN Connector can support 10/100/1000Mbps...

  • Page 13: Dio

    User’s Manual 1.2.14 ⚫ One DB9 female connector supports 8 bits TTL level programmable digital input/output. ⚫ The voltage for TTL is 5V. ⚫ The programming is as follows: I/O sink current is 8~10mA (output drive current ± 50 mA).

  • Page 14: Operation Temperature

    User’s Manual 1.2.18 Operation Temperature ⚫ C ~ +70 1.2.19 Storage Temperature ⚫ C ~ +85 1.2.20 Humidity ⚫ 0% ~ 95% 1.2.21 Weight ⚫ 0.967 kg 1.2.22 Dimensions 164.1 mm (6.46") (W) x 128.0 mm (5.04”) (D) x 44.1mm(1.73”)(H) ⚫...

  • Page 15: Dimensions

    User’s Manual Dimensions The following diagrams show you the dimensions and outlines of the tBOX110-APL- Introduction...

  • Page 16: I/O Outlets

    User’s Manual I/O Outlets The following figures show you the I/O outlets on the front view and top view of the tBOX110-APL-TV. Introduction...

  • Page 17: Section 2 Hardware Installation

    User’s Manual SECTION 2 HARDWARE INSTALLATION The tBOX110-APL-TV is convenient for your various hardware configurations, such as memory modules and mSATA drives. Section 2 will show you how to install the hardware. Installing the Memory Module Step 1 Turn off the system.

  • Page 18: Installing The Msata

    User’s Manual Installing the mSATA Step 1 Insert the mSATA into the slot. Step 2 Fasten the screws tightly. Hardware Installation...

  • Page 19: Installing The Wireless Module

    User’s Manual Installing the Wireless Module Step 1 Loosen the screw and remove the cover Step 2 Insert the SIM Card into the socket and push it to lock. Then put back the cover and tighten the screw .
  • Page 20 User’s Manual Step 4 Remove the antenna plug from one antenna hole on the system chassis, and prepare the antenna cable. Step 5 Make the antenna cable’s gold connector through the antenna hole on the system chassis, and screw it tight with the antenna nut and gasket.

  • Page 21: Installing The Hard Disk

    User’s Manual Installing the Hard Disk Step 1 Loosen the bracket screw and take off the bracket, and apply the HDD pad on the bracket. Step 2 Insert the hard disk and screw the bracket to the system chassis.

  • Page 22: Installing The Din-Rail Mount And Wall Mount Kits

    User’s Manual Installing the DIN-rail Mount and Wall Mount Kits The tBOX110-APL-TV provides DIN-rail and Wall Mount kits that customers can install as below: Method 1: DIN-rail Mount Step 1 Prepare the DIN-rail mount assembling components (screws and bracket).
  • Page 23 User’s Manual Step 2 Align the positioning notches on the wall mount bracket to the edges of the system unit. Make sure the screw hole chamfers face upward and then screw the bracket firmly to the system unit. Hardware Installation...

  • Page 24: 2.6 Installing The Cable Fixing Plate

    User’s Manual 2.6 Installing the Cable Fixing Plate For HDMI: Step 1 Turn off the system and unplug the power cord. Step 2 To fasten the HDMI cable fixing plate (Figure 1) to the system,align the hole on the plate with the hole on the system chassis, insert the screw into the holes, and tighten the screw to fasten the plate, as shown in Figure 2 below.

  • Page 25: Section 3 Ami Uefi Bios Utility

    User’s Manual SECTION 3 AMI UEFI BIOS UTILITY The AMI UEFI BIOS provides users with a built-in Setup program to modify basic system configuration. All configured parameters are stored in a flash backup to save the Setup information whenever the power is turned off...

  • Page 26: Advanced Features

    User’s Manual Advanced Features This Advanced menu allows users to configure and improve your system, or to set up some system features according to your preference. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 27 User’s Manual CPU Configuration ⚫ Scroll to this item and press <Enter> to view the CPU Configuration information. (Please refer to below graphics.) AMI UEFI BIOS Utility...
  • Page 28 User’s Manual SATA Configuration ⚫ Scroll to this item and press <Enter> to view the SATA Configuration information. (Please refer to below graphics.) AMI UEFI BIOS Utility...
  • Page 29 User’s Manual USB Configuration ⚫ Scroll to this item and press <Enter> to view the USB Configuration information. (Please refer to below graphics.) AMI UEFI BIOS Utility...
  • Page 30 User’s Manual H/W Monitor ⚫ Scroll to this item and press <Enter> to view the hardware status items under monitoring. (Please refer to below graphics.) AMI UEFI BIOS Utility...
  • Page 31 User’s Manual NCT6106D Super IO Configuration ⚫ The default setting for all serial ports is RS232. You can change the setting by selecting the value you want in each COM port type. The system supports RS422 and RS485 modes as well as high-speed mode.
  • Page 32 User’s Manual AMI UEFI BIOS Utility...
  • Page 33 User’s Manual Trust Computing ⚫ This sub-menu will allow you to enable/disable Trusted Platform Module (TPM) support and to configure the TPM State. Select Trusted Computing and press Enter to access the sub-menu. Select the Security Device Support item to enable the TPM device.
  • Page 34 User’s Manual AMI UEFI BIOS Utility...
  • Page 35 User’s Manual DIO Configuration ⚫ The DIO Modification default setting is “disable”. If the setting is changed to “enable”, you can load manufacture default and program DIO setting. (Please refer to below graphics.) AMI UEFI BIOS Utility...
  • Page 36 User’s Manual AMI UEFI BIOS Utility...
  • Page 37 User’s Manual AMI UEFI BIOS Utility...
  • Page 38 User’s Manual AMI UEFI BIOS Utility...
  • Page 39 User’s Manual Smart Ignition Management ⚫ Press Enter to access the sub-menu. Calculated based on the 24-hour military-time clock. BIOS menu item Description Ignition Enabled Management Switch to In-Vehicle mode Disabled Switch to AT/Railway mode *PSU and system will reset after setting is saved...
  • Page 40 User’s Manual Restore Restores factory defaults to remove any incorrect or corrupt settings Factory that might have prevented the system from properly powering on/off. Settings BIOS menu item Description Activate Voltage Trigger The system only turns on when the voltage delivered by the power source is higher than the value you set here.

  • Page 41: Chipset Feature

    User’s Manual The counter will be reset if IGN is off and on during the system countdown time. Shutdown Delay Timer When the system is on, IGN voltage will go off, and the (IGN Off) system will be shut down by the after being triggered by the setup timer signal within the time you set.

  • Page 42: Security

    User’s Manual Security The Security menu allows users to enhance system security by setting an administrator password and a user password. No password has been set in the default setting. (Please refer to below graphics.) AMI UEFI BIOS Utility...
  • Page 43 User’s Manual Note: The BIOS default has no password. The user must remember the password after creating one. If the user forgets the password RMA is the only solution. AMI UEFI BIOS Utility...

  • Page 44: Boot Type

    User’s Manual Boot Type The Boot menu allows users to change boot options of the system, providing UEFI, Legacy, and Compatible modes to select from. The default setting boot mode is [UEFI Mode]. (Please refer to below graphics.) AMI UEFI BIOS Utility...
  • Page 45 User’s Manual The Boot Option Priorities can be set by selecting Boot Option #1, #2… (Please refer to below graphics.) AMI UEFI BIOS Utility...

  • Page 46: Save & Exit

    User’s Manual Save & Exit The Save & Exit menu allows users to determine whether to accept their modifications to the system configuration, or to keep default settings for optimal fail-safe performance. (Please refer to below graphics.) BIOS Description...
  • Page 47 User’s Manual Save After completing the system configuration changes, select this option to save Changes changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes. Discard Select this option to quit Setup without making any permanent changes to the Changes system configuration.
  • Page 48 User’s Manual This page is intentionally left blank. AMI UEFI BIOS Utility...
  • Page 49 User’s Manual APPENDIX A WATCHDOG TIMER About Watchdog Timer After the system stops working for a while, it will be auto-reset by the watchdog timer. The integrated watchdog timer can be set up in the system reset mode by program.
  • Page 50 User’s Manual This page is intentionally left blank. Watchdog Timer...
  • Page 51 User’s Manual APPENDIX B POWER BUTTON SETTING FOR WINDOWS SOFTWARE Please enter the power button setting through the PC console, and then follow below steps to complete the setting. Power Button Setting For Window Software...
  • Page 52 User’s Manual Please check if the action of pressing power button is “Shut down” to let ACC work normally and prevent unexpected hard shut down. Power Button Setting For Window Software...
  • Page 53 User’s Manual Power Button Setting For Window Software...
