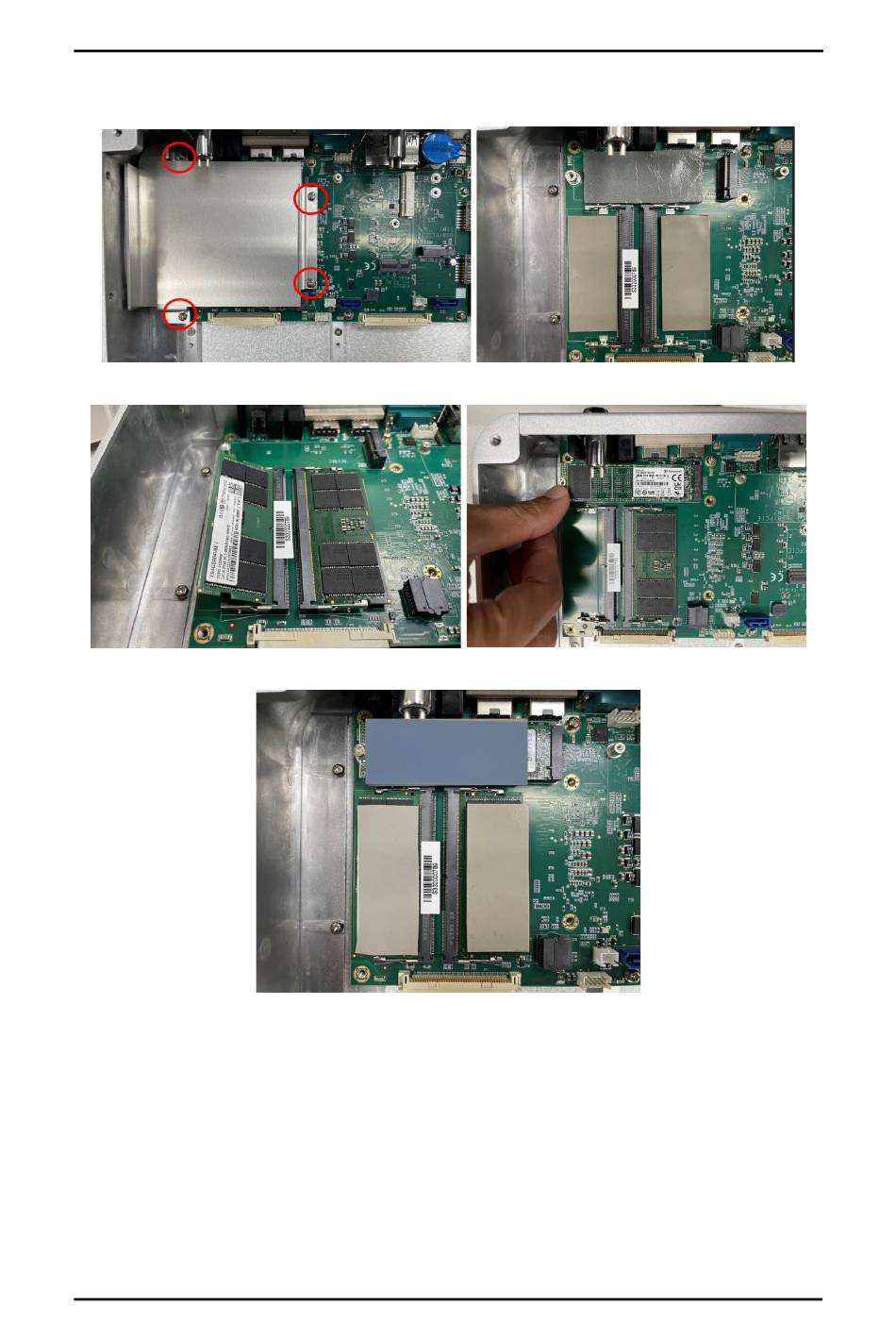

Step 4 Loosen the four screws to remove the bracket and put the thermal pad on
the slot.
Step 5 Install the DDR module and M.2 module.
Step 6 Place the thermal pad above the module and screw the bracket back.
2.3

Installing the Wall Mount Kits

The tBOX520-ADL-MR provides Wall Mount kits that customers can install as
below:
Step 1 Turn off the system and unplug the power cord.
Step 2 Prepare the wall mount assembling components (screws and bracket).
Step 3 Locate the wall mount screw holes on both sides of the system.
Hardware Installation
tBOX520-ADL-MR Series User's Manual
9
