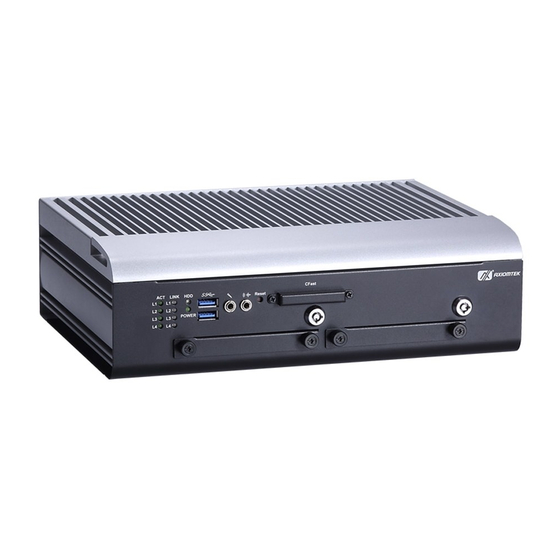

AXIOMTEK tBOX312-870-FL Quick Installation Manual

Embedded system

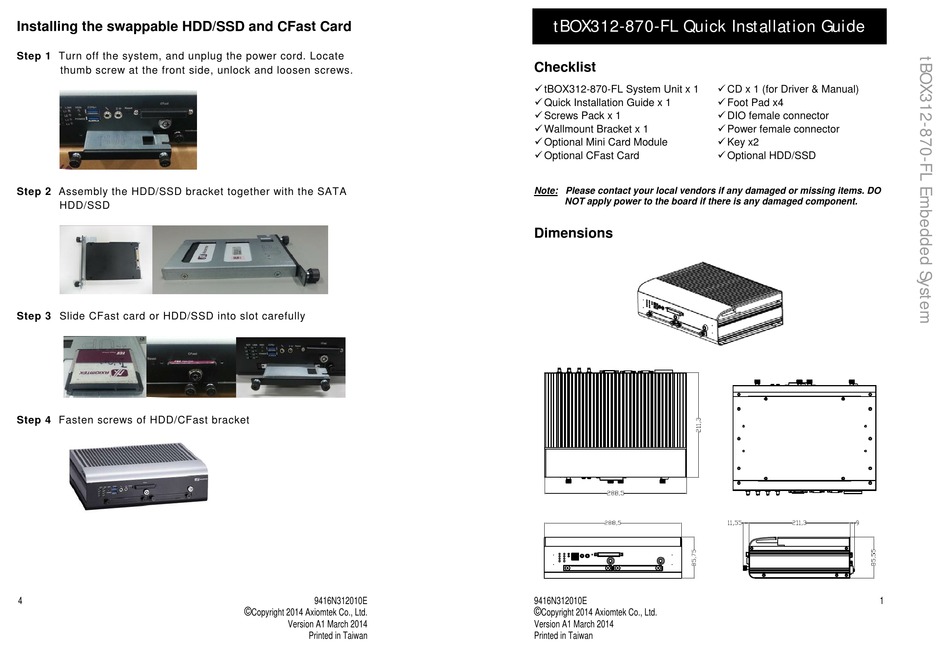

Installing the swappable HDD/SSD and CFast Card

Step 1 Turn off the system, and unplug the power cord. Locate

thumb screw at the front side, unlock and loosen screws.

Step 2 Assembly the HDD/SSD bracket together with the SATA

HDD/SSD

Step 3 Slide CFast card or HDD/SSD into slot carefully

Step 4 Fasten screws of HDD/CFast bracket

9416N312010E

Version A1 March 2014

Printed in Taiwan

tBOX312-870-FL Quick Installation Guide

Checklist

 tBOX312-870-FL System Unit x 1

 Quick Installation Guide x 1

 Screws Pack x 1

 Wallmount Bracket x 1

 Optional Mini Card Module

 Optional CFast Card

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Dimensions

9416N312010E

Version A1 March 2014

Printed in Taiwan

 CD x 1 (for Driver & Manual)

 Foot Pad x4

 DIO female connector

 Power female connector

 Key x2

 Optional HDD/SSD
