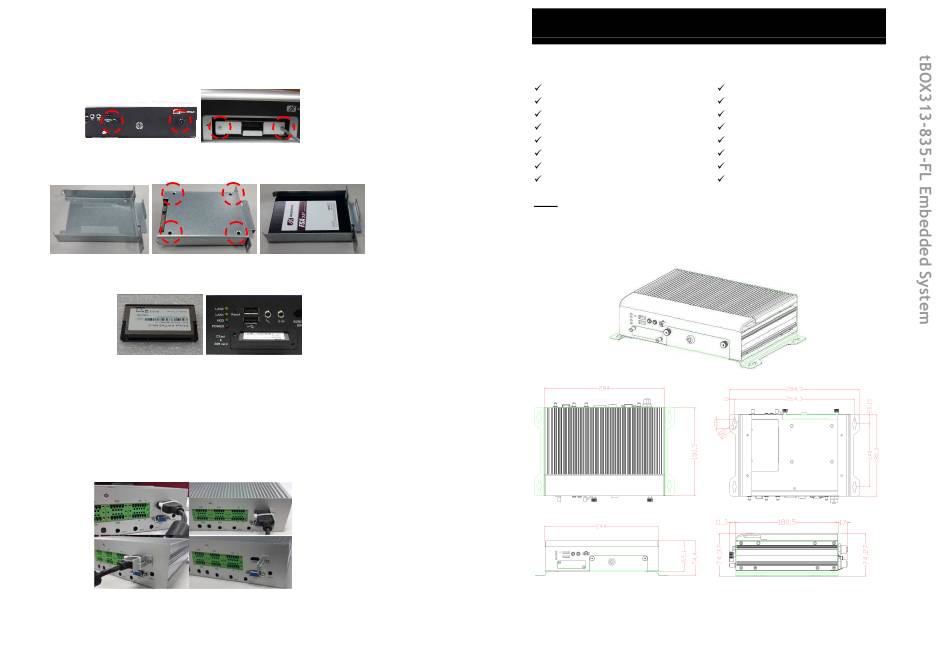

AXIOMTEK tBOX313-835-FL Quick Installation Manual

Installing the swappable HDD/SSD and CFast
Step 1 Turn off the system, and unplug the power cord. Locate
thumb screw at the front side, unlock and loosen screws.
Step 2 Assemble the HDD/SSD bracket together with the device.
™
Step 3 Slide CFast card into slot cautiously
Step 4 Fasten screws of HDD/CFast
Installing HDMI bracket
Step 1 Fasten the bracket at the position as shown.
Step 2 Connect HDMI cable and tied on bracket by cable tie.
4
™
Card
™
bracket
9416N313010E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A2 Feb 2017
Printed in Taiwan
tBOX313-835-FL Quick Installation Guide
Checklist
tBOX313-835-FL System Unit x 1
Quick Installation Guide x 1
CD x 1 (for Driver & Manual)
Wall mount Bracket x 1
Screws Pack x 1
Foot Pad x4
Key x2
DIO & Serial terminal block
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Dimensions
9416N313010E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A2 Feb 2017
Printed in Taiwan
HDMI bracket x1
Cable tie x2
HDD/SSD(Optional)
CFast Card(Optional)
Mini Card Module(Optional)
M12 LAN cable(Optional)
M12 power cable(Optional)
Remote switch cable(Optional)
1
