Installing the Cable Fixing Plate

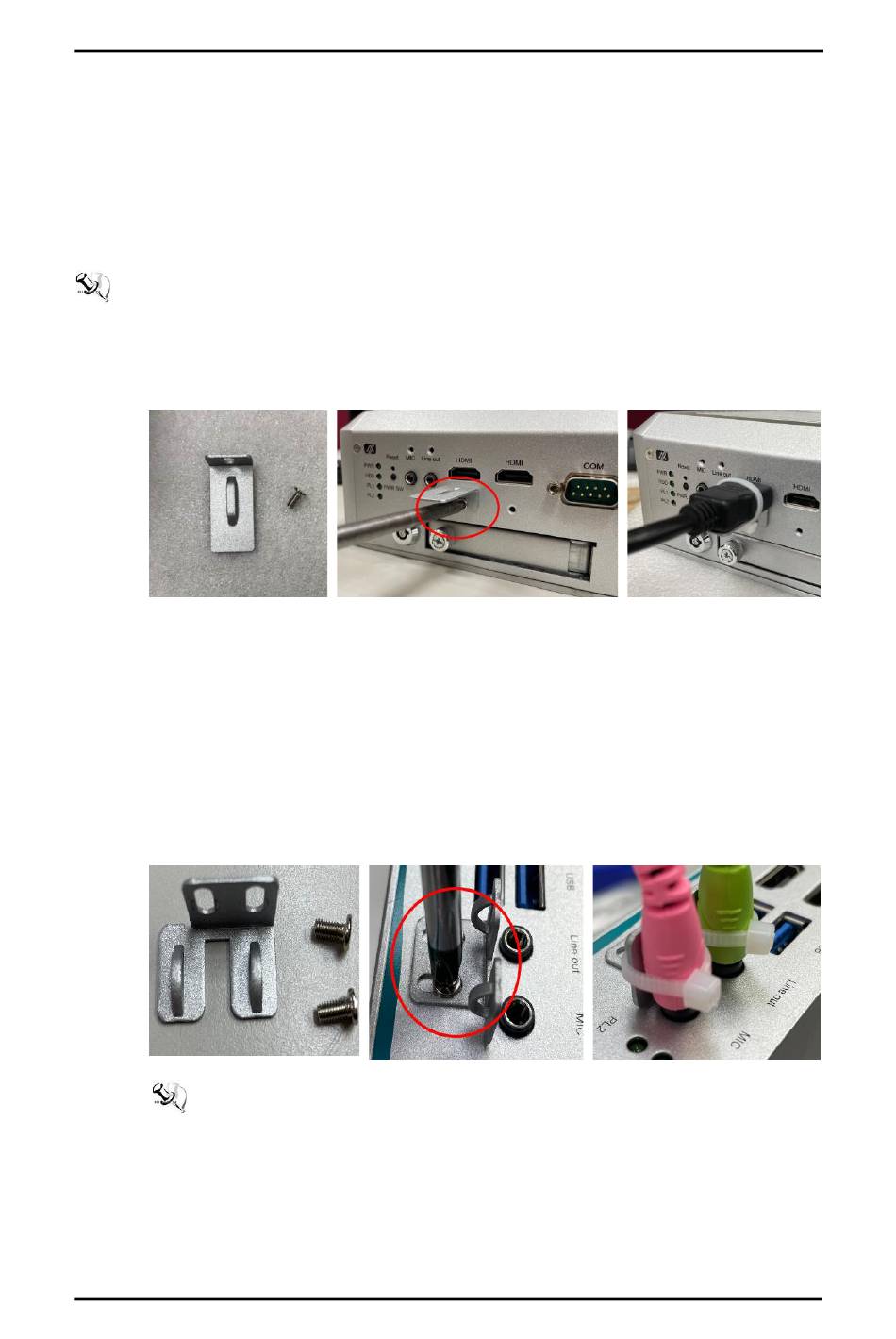

For HDMI:
Step 1 Turn off the system and unplug the power cord.
Step 2 To fasten the HDMI cable fixing plate (Figure 1) to the system, align
the hole on the plate with the hole on the system chassis, insert the
screw* into the holes, and tighten the screw to fasten the plate, as
shown in Figure 2 below.
Note: *Large flat head cross mechanical tooth flat tail nickel-plated M3*6L screw
Step 3 Insert the HDMI cable into the system's HDMI port. Then fasten a cable
tie through the loop of the cable fixing plate to bind the HDMI cable to
the plate, as shown in Figure 3 below.
(Figure 1)
For Audio Jack:
Step 1 Turn off the system and unplug the power cord.
Step 2 To fasten the Audio cable fixing plate (Figure 4) to the system, align
the hole on the plate with the hole on the system chassis, insert the
screw* into the holes, and turn the screw tightly to fasten the plate, as
shown in Figure 5 below.
Step 3 Insert the Audio cable into the system's Audio port. Then insert a
cable tie through the loop of the cable fixing plate to bind the Audio
cable to the plate, as shown in Figure 6 below.
(Figure 4)
Note: *Large flat head cross mechanical tooth flat tail nickel-plated M3*6L screw
