3.1

Connectors

Connectors connect to the CPU board with the other parts of the system. Loose or improper
connection might cause problems. Make sure all connectors are properly and firmly connected
before your turn on the system.
3.1.1

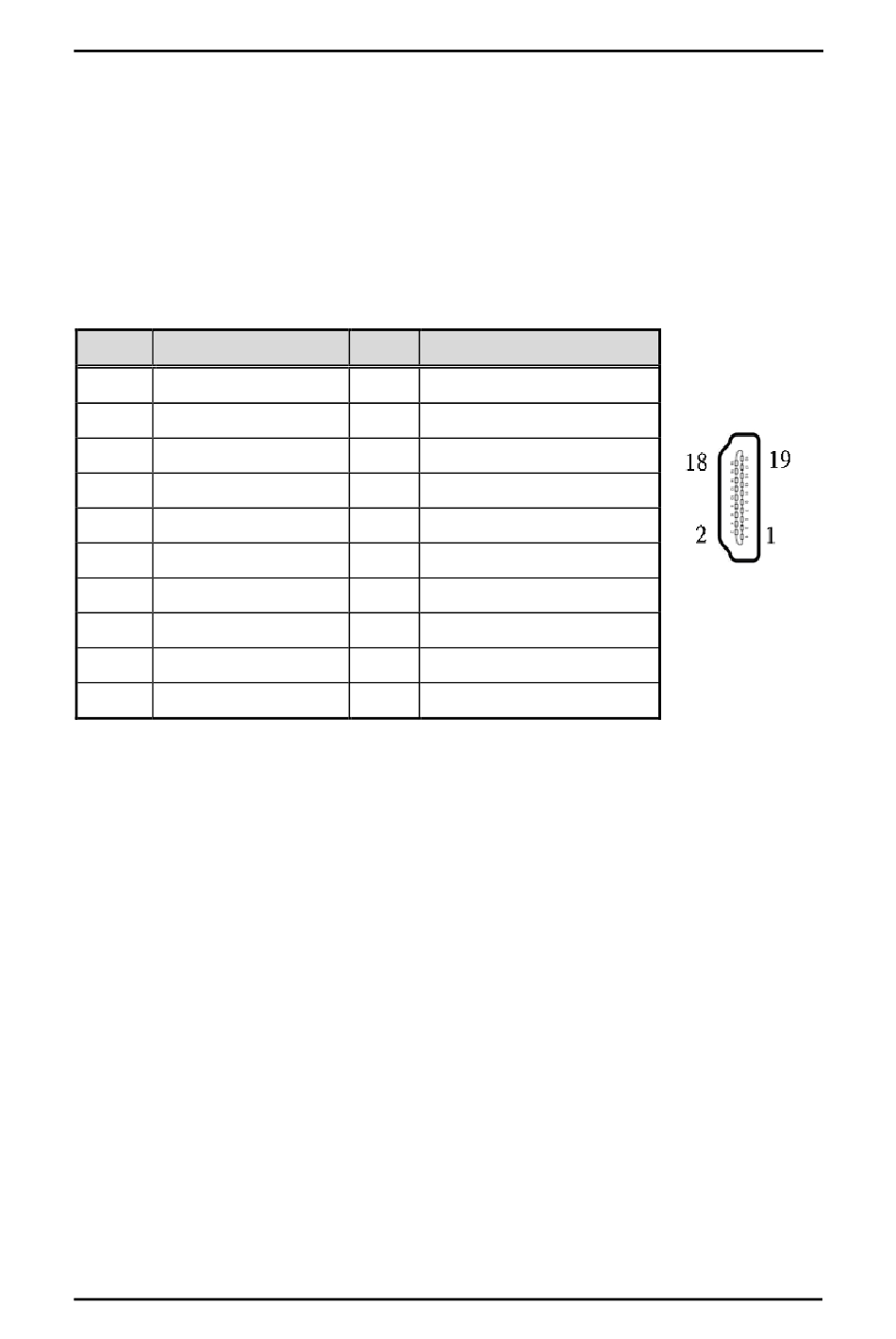

HDMI Connector

Pins Signals
1 HDMI OUT_DATA2+
GND
2
3 HDMI OUT_DATA2-
4
HDMI OUT_DATA1+
5 GND
6
HDMI OUT_DATA1-
7 HDMI OUT_DATA0+
8 GND
9 HDMI OUT_DATA0-
10 HDMI OUT Clock+
Connector
tBOX520-ADL-MR Series User's Manual
Pins Signals
11 GND
12 HDMI OUT Clock-
13 N.C.
14 N.C.
15 HDMI OUT_SCL
16 HDMI OUT_SDA
17 GND
18 +5V
19 HDMI_HTPLG
