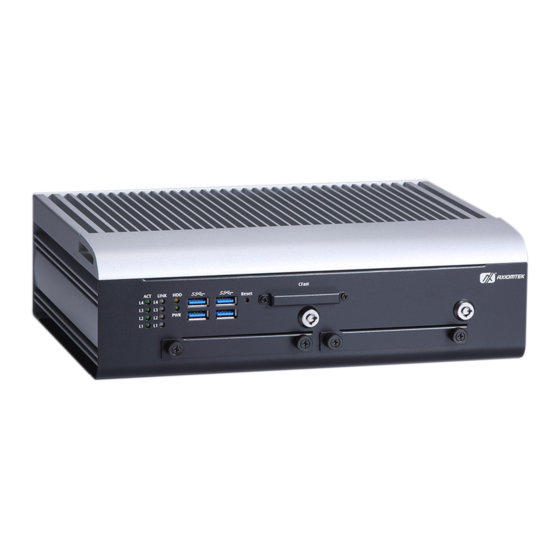

AXIOMTEK tBOX324-894 Quick Installation Manual

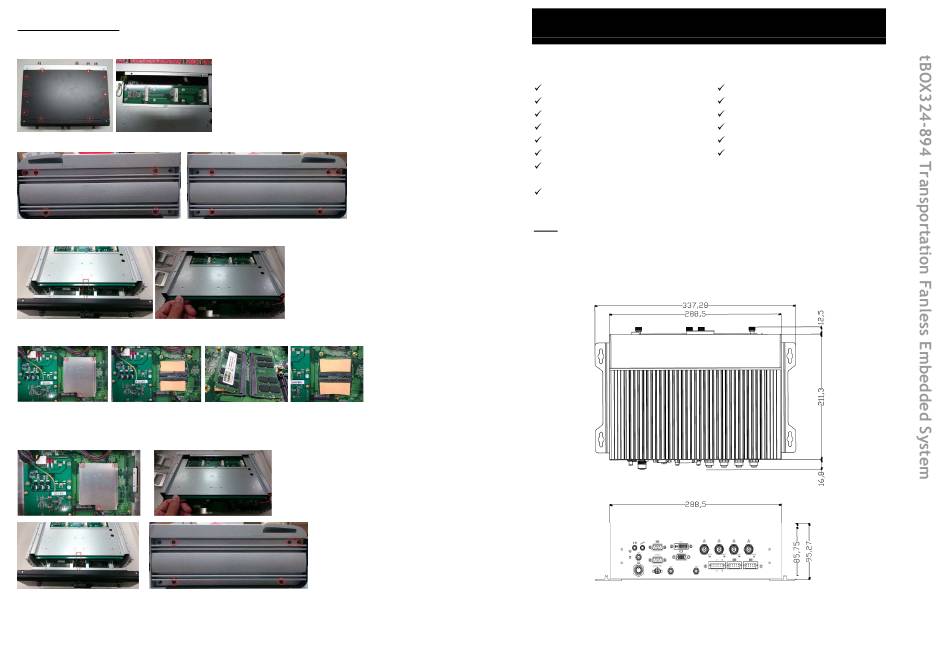

DRAM Installation
Step 1 Make sure system power is off, and then loosen the lateral
cover screws as shown.
Step 2 Loosen the lateral screws as shown.
Step 3 Pull out the front bezel and internal bracket as shown.
Step 4 Remove cover to install DRAM and stick thermal pad on it.
Step 5 Secure DRAM cover and install the internal bracket, front
bezel. Follow by fastening the lateral screws as shown to
complete the installation.
4 9416N324000E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 September 2017
Printed in Taiwan
tBOX324-894 Quick Installation Guide
Checklist
tBOX324-894 system unit x 1
Quick installation guide x 1
CD x 1 (for Driver & Manual)
Foot Pad x 4
Screws pack x 1
Wallmount Bracket x 1
Power terminal block or M12
power cable x 1 (optional)
DIO (6x2) x1 and COM (5x2) x 2
terminal block (optional)
Note: Please contact your local suppliers if any damaged or missing items.
Dimensions
tBOX324-894
9416N324000E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 September 2017
Printed in Taiwan
HDD/SSD (optional)
Mini PCIe card module (optional)
Remote Switch cable (optional)
M12 LAN cable(s) (optional)
Wireless module (optional)
Key x 2
