Gateway E-5200 Maintaining And Troubleshooting page 50

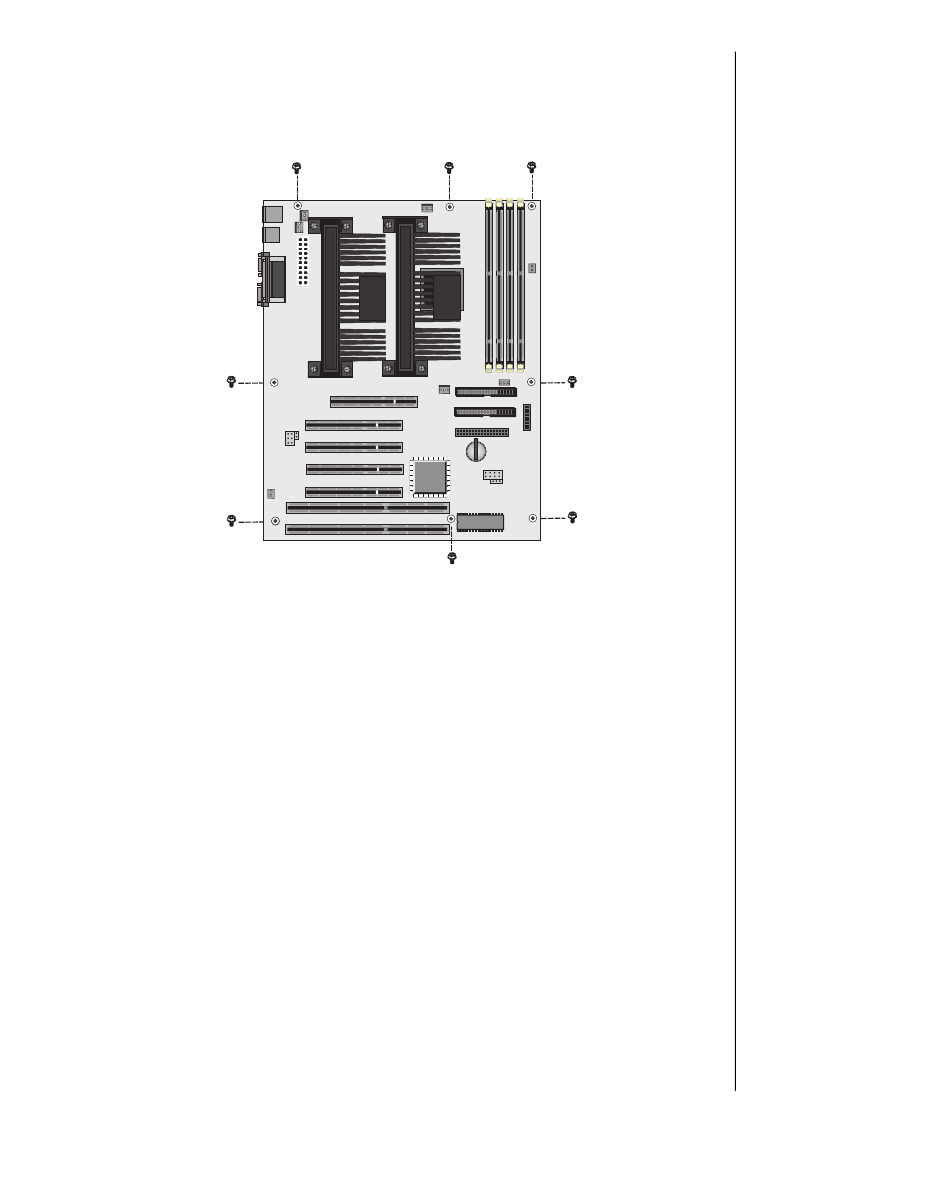

Remove the eight screws that attach the system board to the chassis.
5.
Carefully lift the system board out of the chassis and set it aside.
Remove the new system board from its packing material. Place the
6.
new system board into the chassis, lining it up with the chassis screw
holes. Install the eight screws that attach the system board to the
chassis.
Replace the bottom processor brackets and install the four screws that
7.
attach them to the system board.
Replace the following devices:
8.
•
Expansion cards: see "Installing Expansion Cards" on page 21 for
instructions.
•
Fan and fan housing: see "Replacing the Fan" on page 34 for
instructions.
•
Processor: see "Installing a Processor" on page 38 for instructions.
•
Peripheral devices attached to the rear-panel I/O connectors.
Chapter 3: Installing Components 45
