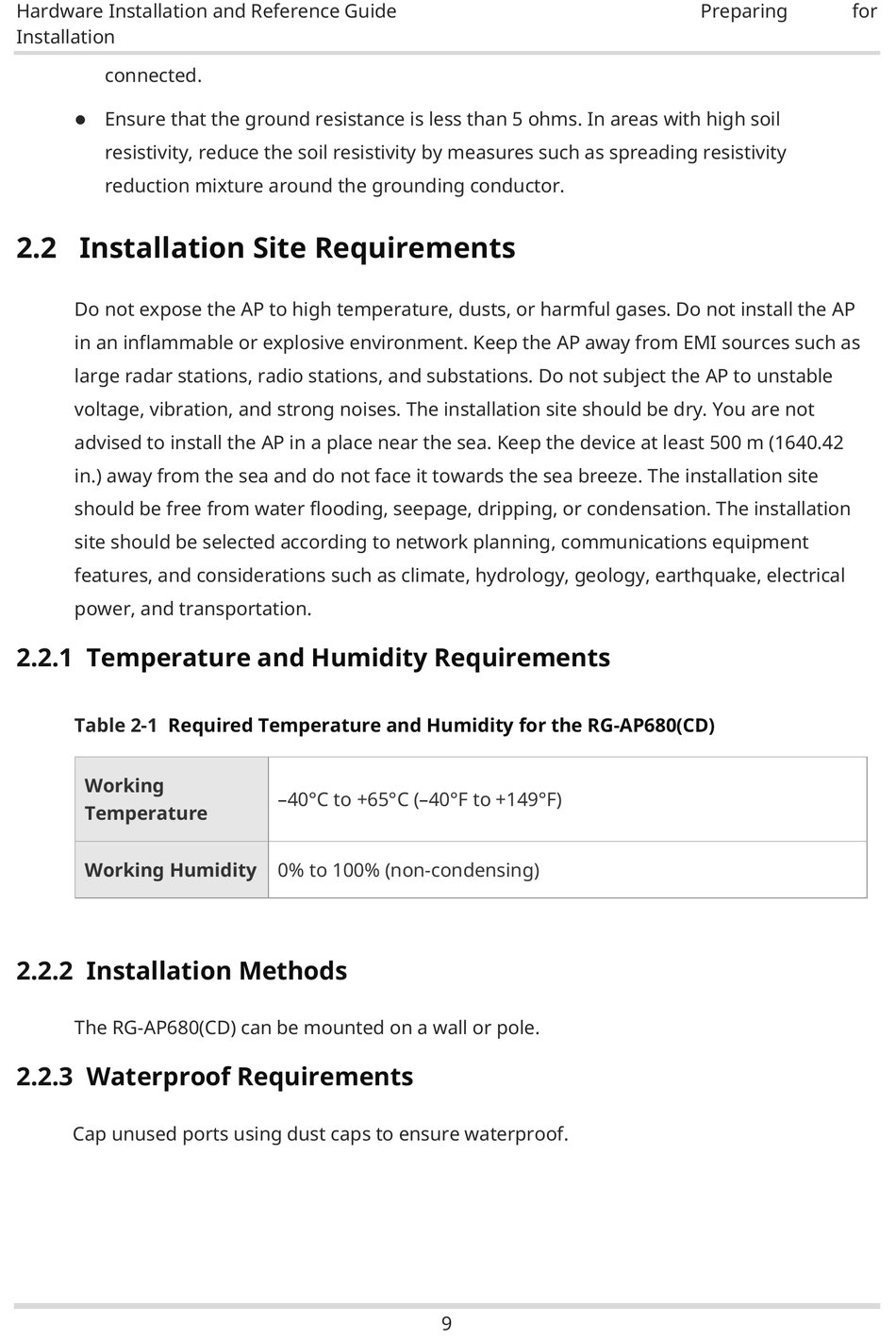

Hardware Installation and Reference Guide
Installation
connected.
Ensure that the ground resistance is less than 5 ohms. In areas with high soil
resistivity, reduce the soil resistivity by measures such as spreading resistivity
reduction mixture around the grounding conductor.
2.2
Installation Site Requirements
Do not expose the AP to high temperature, dusts, or harmful gases. Do not install the AP
in an inflammable or explosive environment. Keep the AP away from EMI sources such as
large radar stations, radio stations, and substations. Do not subject the AP to unstable
voltage, vibration, and strong noises. The installation site should be dry. You are not
advised to install the AP in a place near the sea. Keep the device at least 500 m (1640.42
in.) away from the sea and do not face it towards the sea breeze. The installation site
should be free from water flooding, seepage, dripping, or condensation. The installation
site should be selected according to network planning, communications equipment
features, and considerations such as climate, hydrology, geology, earthquake, electrical
power, and transportation.
2.2.1
Temperature and Humidity Requirements
Table 2-1
Required Temperature and Humidity for the RG-AP680(CD)
Working
Temperature
Working Humidity
2.2.2
Installation Methods
The RG-AP680(CD) can be mounted on a wall or pole.
2.2.3
Waterproof Requirements
Cap unused ports using dust caps to ensure waterproof.
–40°C to +65°C (–40°F to +149°F)
0% to 100% (non-condensing)
9
