Hardware Installation and Reference Guide

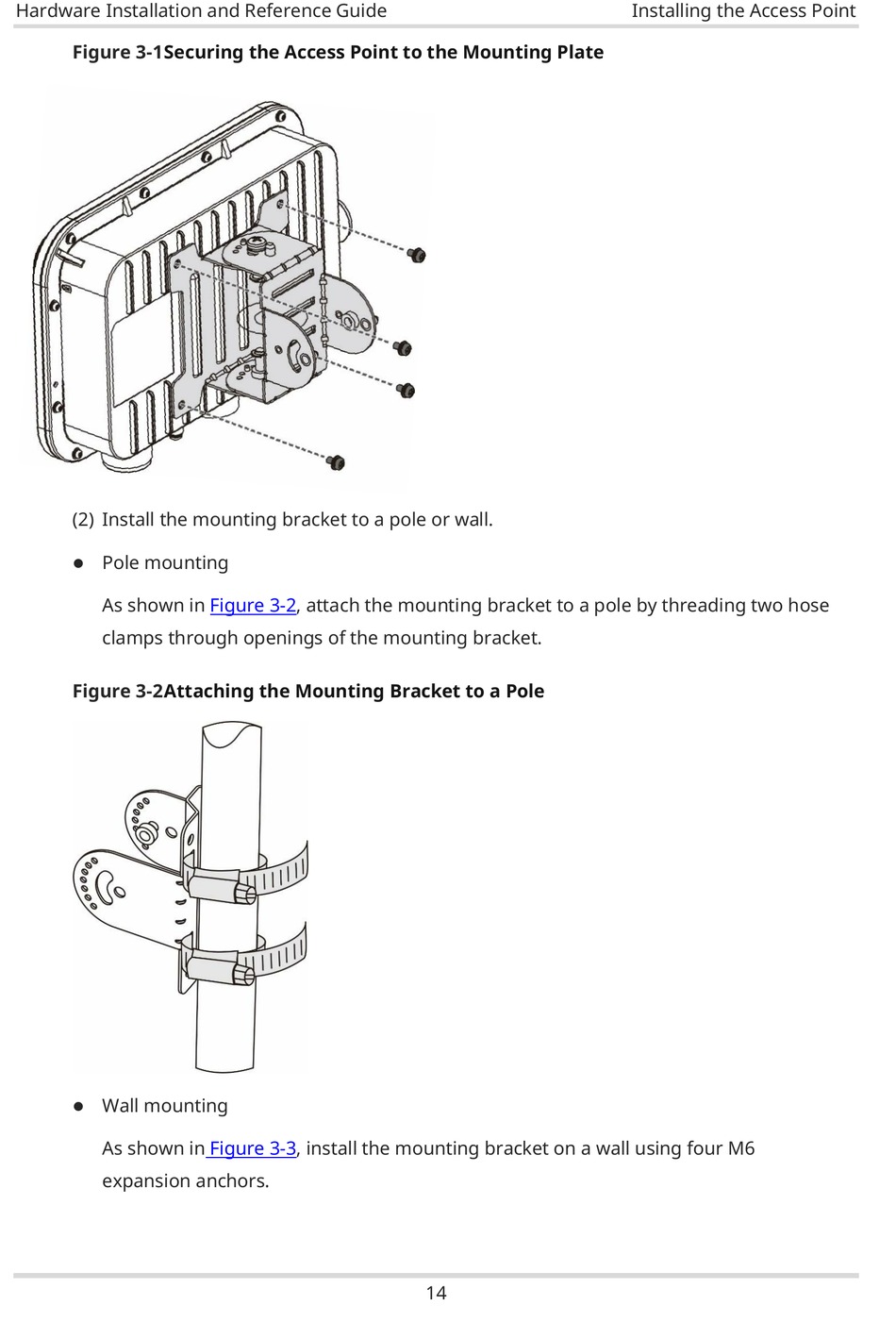

Figure 3-1 Securing the Access Point to the Mounting Plate
(2) Install the mounting bracket to a pole or wall.
Pole mounting

As shown in
clamps through openings of the mounting bracket.
Figure 3-2 Attaching the Mounting Bracket to a Pole
Wall mounting

As shown in
expansion anchors.
Figure 3-2, attach the mounting bracket to a pole by threading two hose
Figure 3-3, install the mounting bracket on a wall using four M6
14
Installing the Access Point
