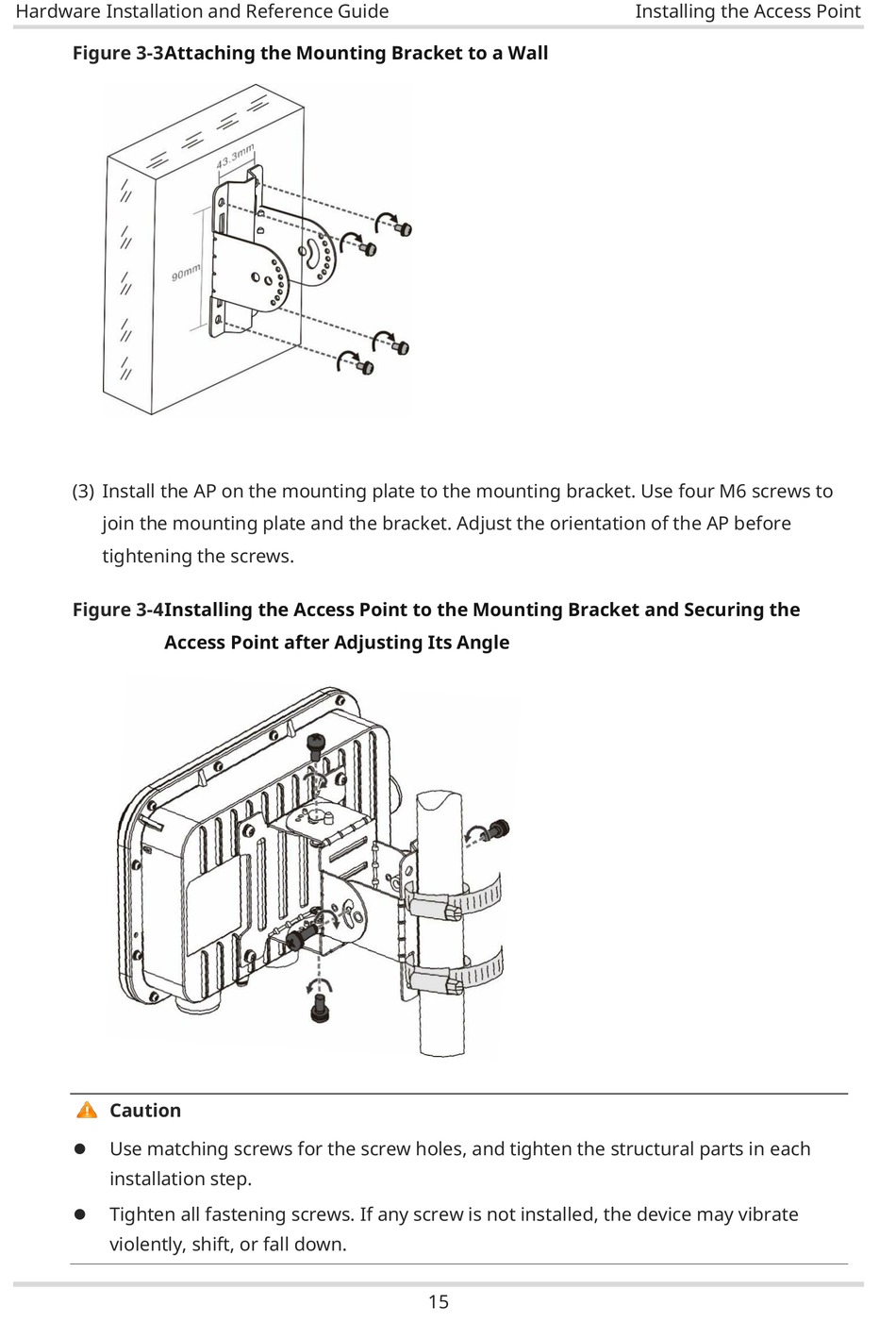

Figure 3-3
Attaching the Mounting Bracket to a Wall
(3) Install the AP on the mounting plate to the mounting bracket. Use four M6 screws to
join the mounting plate and the bracket. Adjust the orientation of the AP before
tightening the screws.
Figure 3-4
Installing the Access Point to the Mounting Bracket and Securing the
Access Point after Adjusting Its Angle
Caution
Use matching screws for the screw holes, and tighten the structural parts in each
installation step.
Tighten all fastening screws. If any screw is not installed, the device may vibrate
violently, shift, or fall down.
