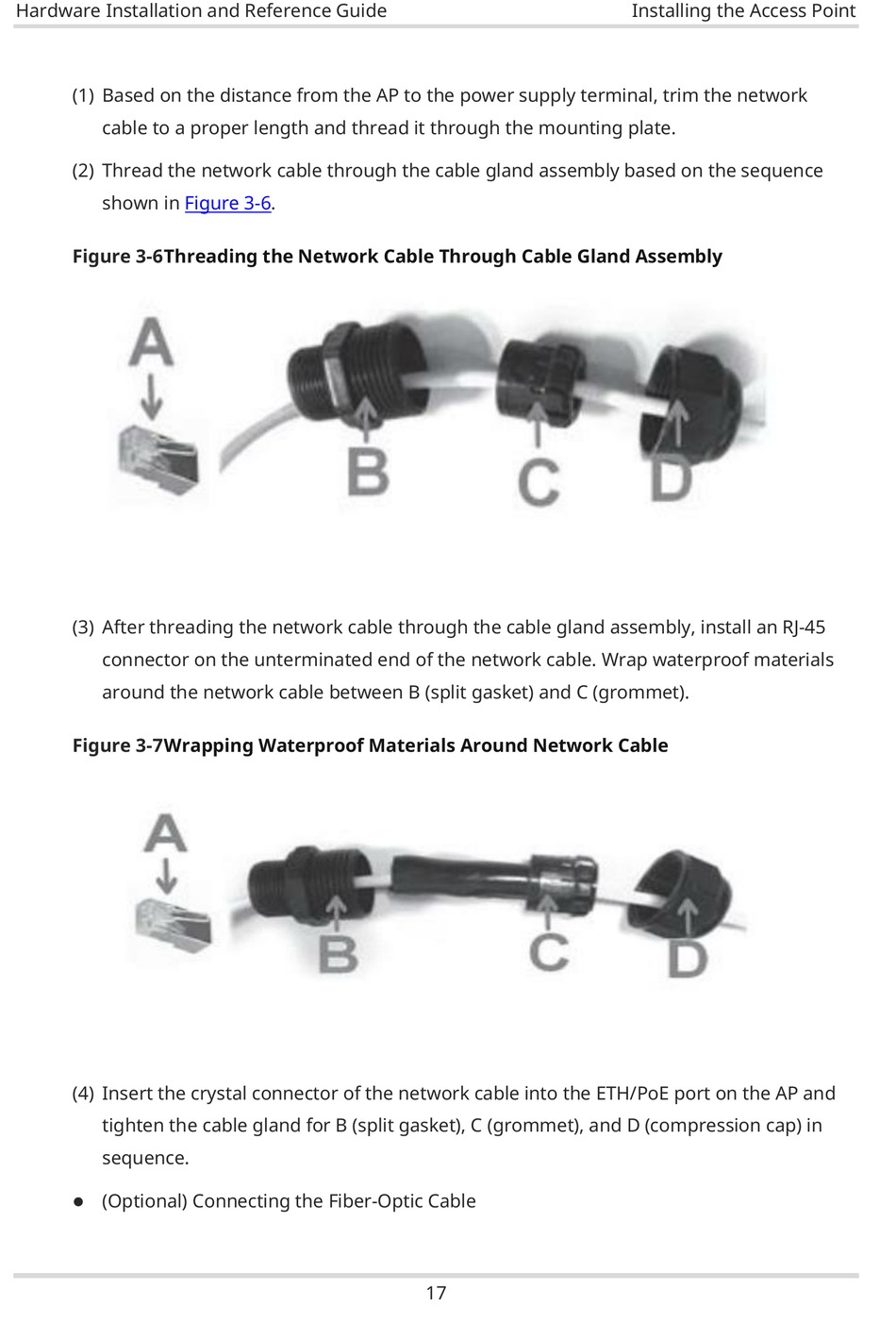

Hardware Installation and Reference Guide
(1) Based on the distance from the AP to the power supply terminal, trim the network
cable to a proper length and thread it through the mounting plate.
(2) Thread the network cable through the cable gland assembly based on the sequence
shown in
Figure 3-6
Threading the Network Cable Through Cable Gland Assembly
(3) After threading the network cable through the cable gland assembly, install an RJ-45
connector on the unterminated end of the network cable. Wrap waterproof materials
around the network cable between B (split gasket) and C (grommet).
Figure 3-7
Wrapping Waterproof Materials Around Network Cable
(4) Insert the crystal connector of the network cable into the ETH/PoE port on the AP and
tighten the cable gland for B (split gasket), C (grommet), and D (compression cap) in
sequence.
(Optional) Connecting the Fiber-Optic Cable
Figure
3-6.
17
Installing the Access Point
