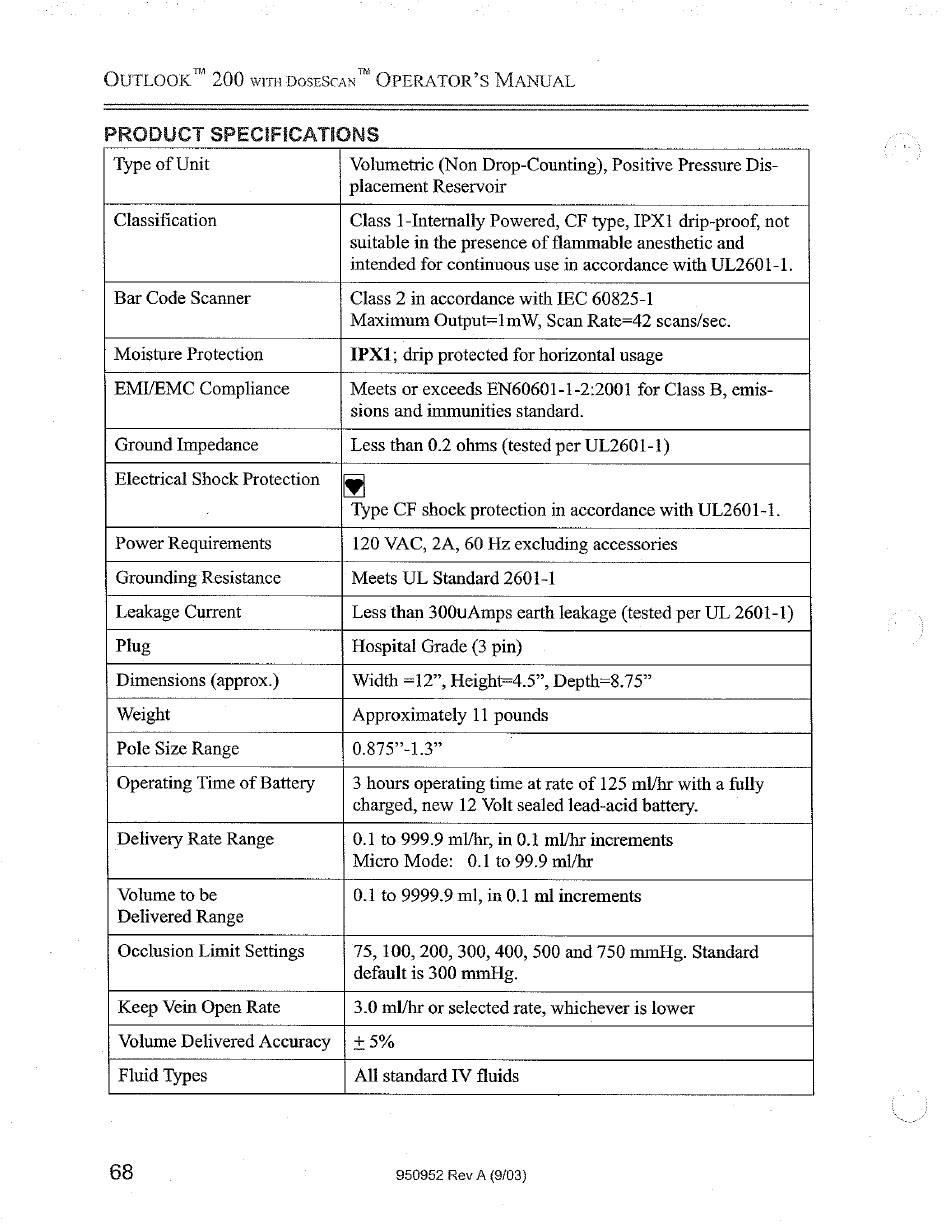

B. Braun OUTLOOK 200 Operator's Manual page 74

OUTLOOK™ 200 witn DosrScan" OPERATOR'S MANUAL
PRODUCT SPECIFICATIONS
Type of Unit
Volumetric (Non Drop-Counting), Positive Pressure Dis-
placement Reservoir
Classification
Class 1-Internally Powered, CF type, IPX1 drip-proof, not
suitable in the presence of flammable anesthetic and
intended for continuous use in accordance with UL2601-1.
Bar Code Scanner
Class 2 in accordance with IEC 60825-1
Maximum Output=1mW, Scan Rate=42 scans/sec.
Moisture Protection IPX1; drip protected for horizontal usage
EMVEMC Compliance Meets or exceeds EN60601-1-2:2001 for Class B, emis-
sions and immunities standard.
Ground Impedance Less than 0.2 ohms (tested per UL2601-1)
Electrical Shock Protection
四
Type CF shock protection in accordance with UL2601-1.
Power Requirements 120 VAC, 2A, 60 Hz excluding accessories
Grounding Resistance Meets UL Standard 2601-1
Leakage Current Less than 300UAmps earth leakage (tested per UL 2601-1)
Plug Hospital Grade (3 pin)
Dimensions (approx.) Width =12", Height=4.5", Depth=8.75"
Weight
Approximately 11 pounds
Pole Size Range 0.875"-1.3"
Operating Time of Battery 3 hours operating time at rate of 125 ml/hr with a fully
charged, new 12 Volt sealed lead-acid battery.
Delivery Rate Range 0.1 to 999.9 ml/hr, in 0.1 ml/hr increments
Micro Mode: 0.1 to 99.9 ml/hr
Volume to be 0.1 to 9999.9 ml, in 0.1 ml increments
Delivered Range
Occlusion Limit Settings
75, 100, 200, 300, 400, 500 and 750 mmHg. Standard
default is 300 mmHg.
Keep Vein Open Rate
3.0 ml/hr or selected rate, whichever is lower
Volume Delivered Accuracy +5%
Fluid Types All standard IV fluids
68
950952 Rev A (9/03)
