PANEL DESCRIPTION

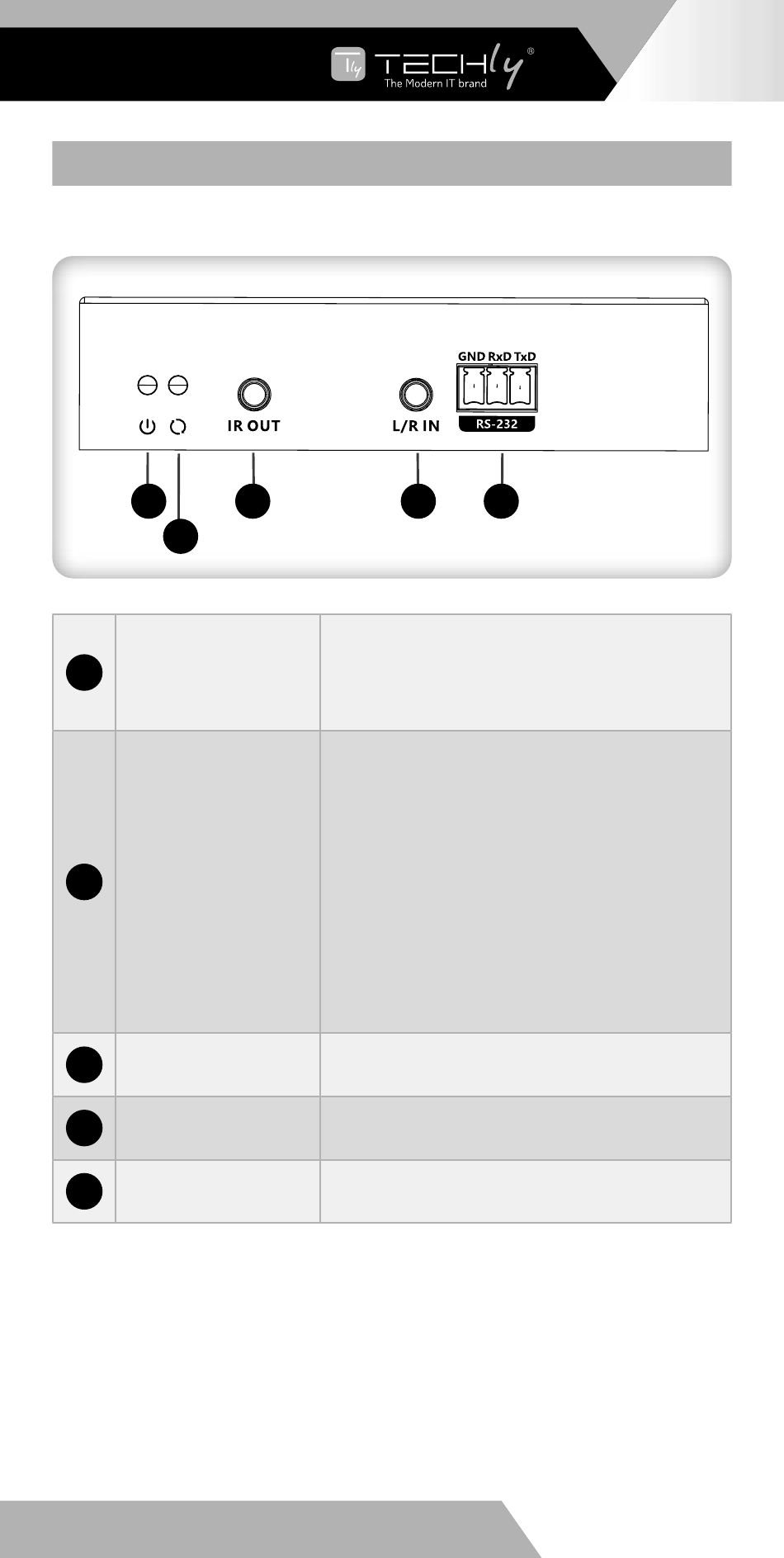

Transmitter
1
2
Power indicator
1
(blue)
Data
transmission
2
indicator
(orange)
3
IR OUT
4
L/R IN
RS-232
5
(GND/RxD/TxD)
3
1) Light off: No power supply
2) Steady on: The power is on
3) Flash: The factory settings have
been restored
1) Light off: The transmitter and the
receiver have not established a
connection
2) Slow flash (every 1 second):
The transmitter and the receiver
are connected but no video data
transmission
3) Quick flash (every 200ms): The
video signal is connecting
4) Steady on: The video data is
transmitting
Connect with IR blaster extension
cable
Connect to the audio source device
with 3.5mm stereo audio cable
Used for RS-232 passthrough and
command
4 5
