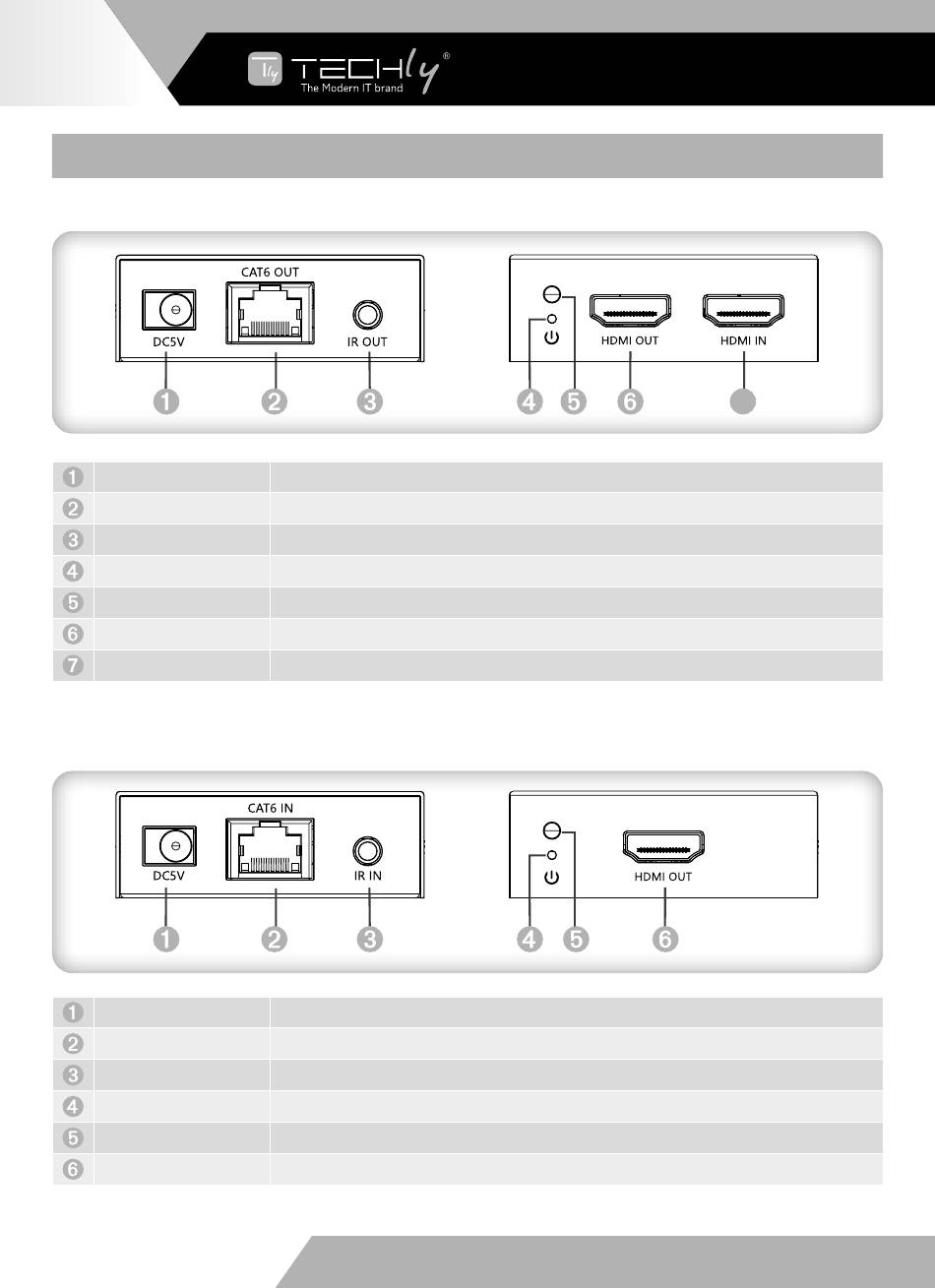

PANEL DESCRIPTION

1. Transmitter
①
Power input
RJ45 output
IR OUT
Reset Hole
Power Indicator
HDMI Output
①
HDMI Input
①
2. Receiver
①
Power input
RJ45 output
Video Source
IR IN
Reset Hole
Power Indicator
HDMI Output
WWW.TECHLY.COM
② ③
Connect with DC 5V power adapter
Connect with CAT6/6A/7 network cable
Connect with IR blaster extension cable
Press the pinhole reset button with a straightened paper clip
When there is power, the indicator will light solid blue
Connect with local HDMI display device with HDMI cable
② ③
Connect with HDMI source device with HDMI cable
② ③
H D M I D isp lay
② ③
Spare power port (Powered by TX)
Connect with CAT6/6A/7 network cable
TX
Connect with IR receiver extension cable
Press the pinhole reset button with a straightened paper clip D C 5V
When there is power, the indicator will light solid blue
H D M I D isp lay
Connect with HDMI display device with HDMI cable
HDMI EXTENDER 4K@60HZ
