HDBitT VGA Extender

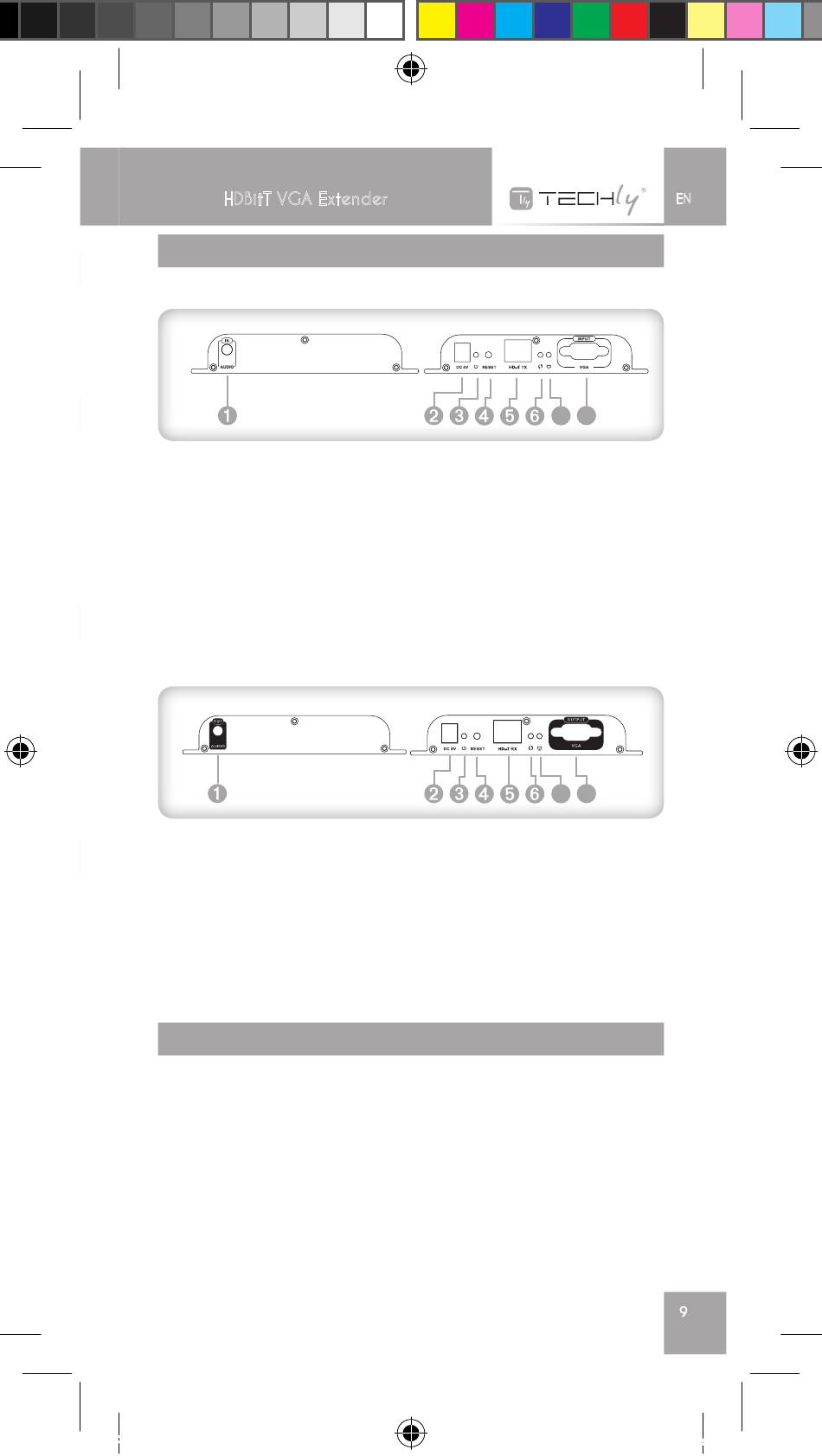

PANEL DESCRIPTION

1. VGA EXTENDER TX (Sender)
➊ Audio input
Power input (DC5V)
➋
Power status indicator
➌
➍ Reset button
HDBitT signal output
➎
➏ Data transmission indicator
Network connection indicator
➐
VGA signal input
➑
2. VGA EXTENDER RX (Receiver)
➊ Audio output
Power input (DC5V)
➋
Power status indicator
➌
➍ Reset button
HDBitT signal input
➎
➏ Data transmission indicator
Network connection indicator
➐
VGA signal output
➑

INSTALLATION PROCEDURES

Make a Cat.5/6 network cable
Follow the standard EIA-568B:
1-Orange/white
2-Orange
3-Green/white
4-Blue
7 8
7 8
5-Blue/white
6-Green
7-Brown/white
8-Brown
EN
9
