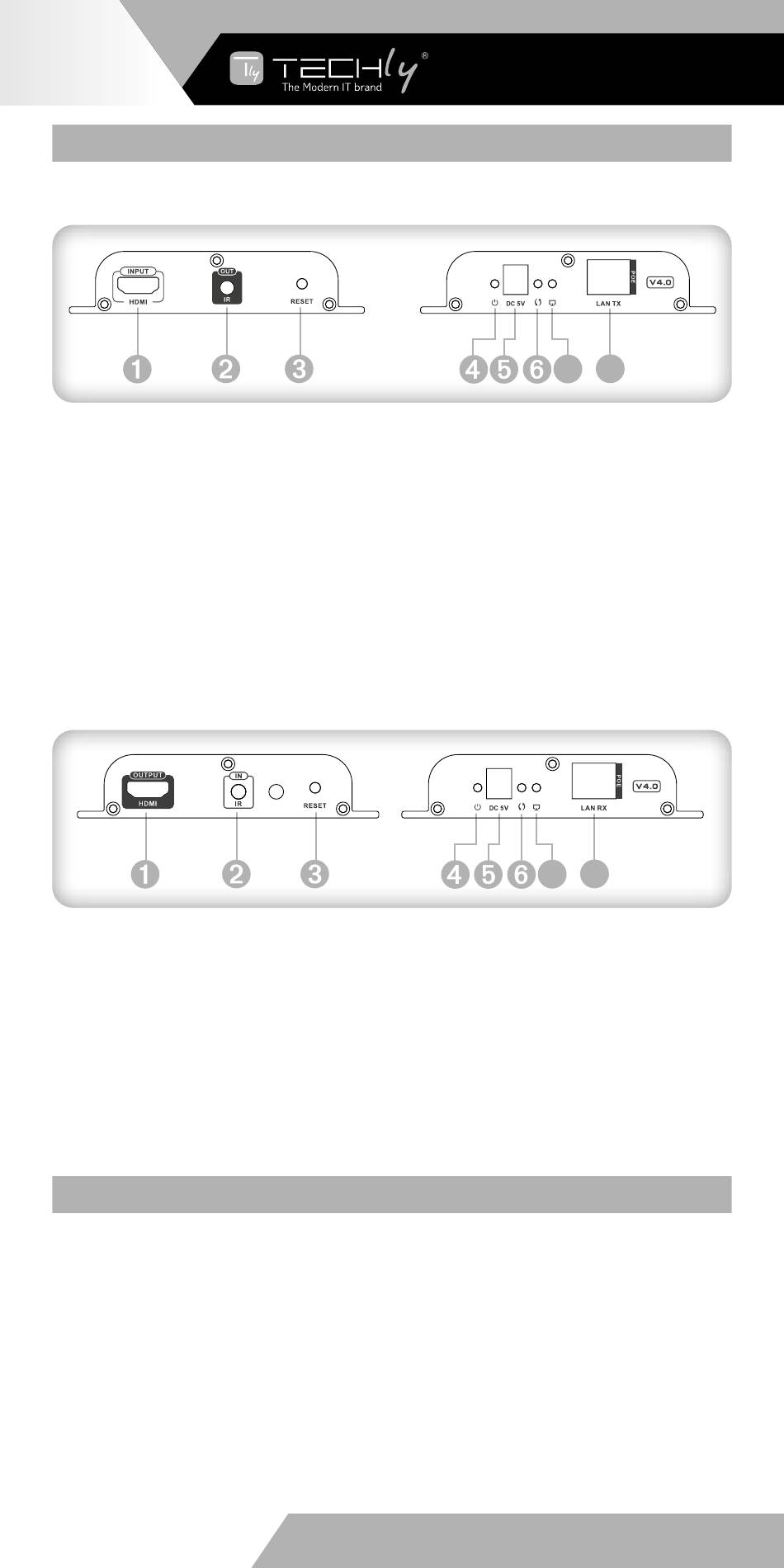

PANEL DESCRIPTION

1. HDMI EXTENDER TX (Sender)
HDMI signal input
IR Signal output to connect with blaster extension cable
Reset
Power light
Power input (DC5V)
Data transmission light
Network link light
RJ45 signal output (POE Input)
2. HDMI EXTENDER RX (Receiver)
HDMI signal output
IR Signal input to connect with IR receiver extension cable
Reset
Power light
Power input (DC5V)
Data transmission light
Network link light
RJ45 signal input (POE Input)

INSTALLATION PROCEDURES

How to make a Cat.5/6 network cable
Follow the standard EIA-568B:
1-Orange/white
2-Orange
3-Green/white
4-Blue
WWW.TECHLY.COM
EXTENDER WITH POE
5-Blue/white
6-Green
7-Brown/white
8-Brown
4K@30HZ HDMI
7
8
7
8
