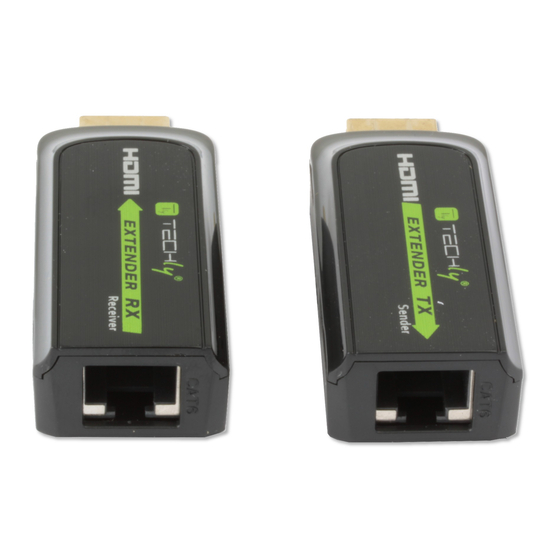

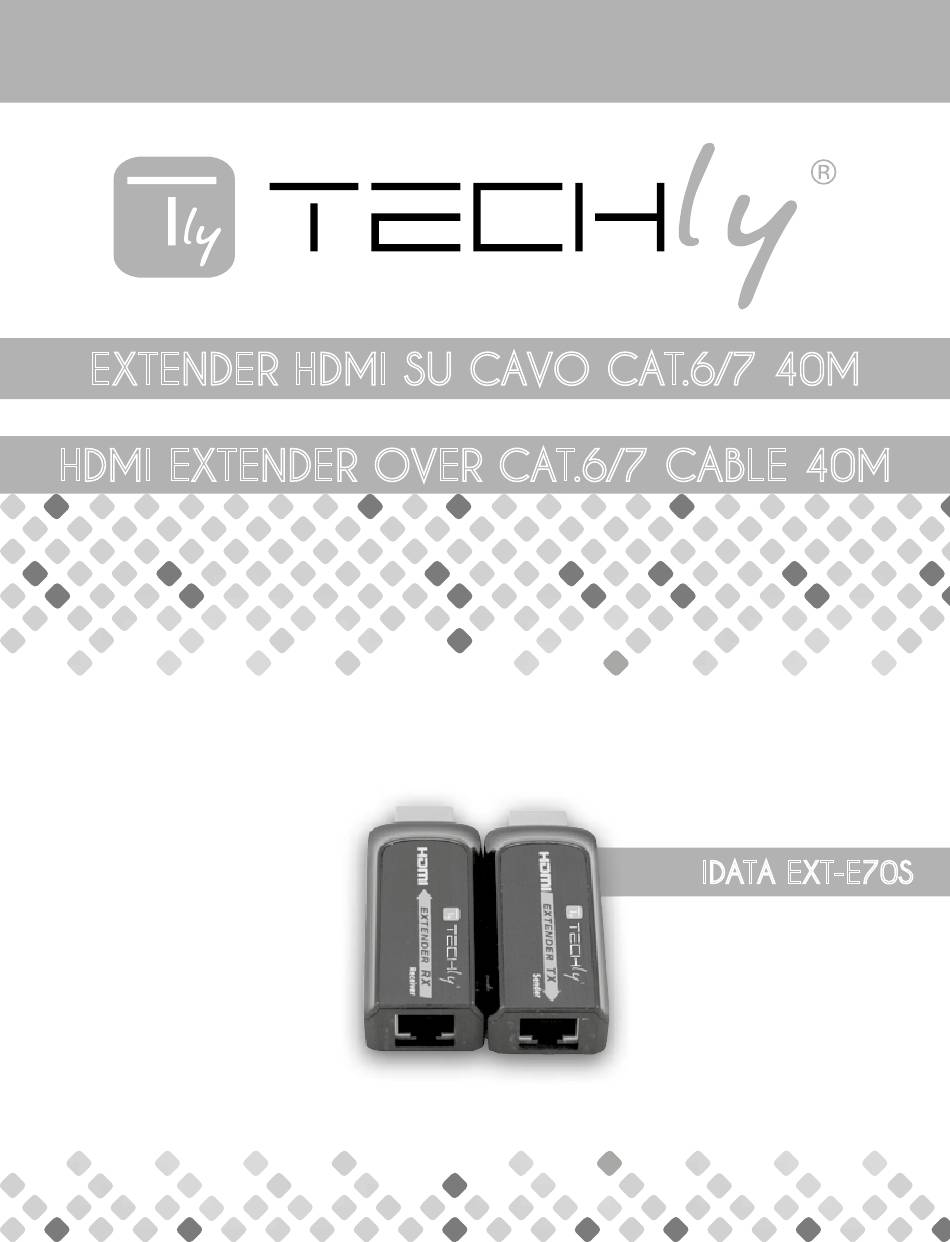

- Page 1 EXTENDER HDMI SU CAVO CAT.6/7 40M HDMI EXTENDER OVER CAT.6/7 CABLE 40M Manuale d’istruzione User’s manual IDATA EXT-E70S...
-
Page 2: Importanti Informazioni Sulla Sicurezza
EXTENDER HDMI SU CAVO CAT.6/7 40M ExtEndEr HdMI su cavo cat.6/7 40M Gentile Cliente Grazie per aver acquistato questo prodotto. Per ottenere il massimo delle prestazioni nella salvaguardia della sua sicurezza, le consigliamo di leggere con attenzione il presente manuale prima di collegare e mettere in funzione il prodotto. -
Page 3: Contenuto Della Confezione
EXTENDER HDMI SU CAVO CAT.6/7 40M IntroduZIonE Questo extender HDMI è costituito da un’unità trasmittente e da una ricevente che lavorano in coppia. Permette di trasmettere e di estendere il segnale Full HD 1080p@60Hz non compresso usando un cavo di rete Cat.6/6A/7 fino a 40 metri con zero latenza. E’ perfetto per la trasmissione AV in applicazioni di conferenza in HD, riprese video HD, per ambienti scolastici e formativi, per l’intrattenimento, ecc. -
Page 4: Descrizione Apparecchio
EXTENDER HDMI SU CAVO CAT.6/7 40M dEscrIZIonE aPParEccHIo 1. Trasmettitore (TX) EXTENDER HDMI SU CAVO CAT ➋ ➌ ➊ Uscita segnale RJ45 Segnale HDMI codificato in uscita ➊ Ingresso HDMI Collegare con la sorgente ➋ Ingresso alimentazione Collegare il cavo USB ➌ 2. Ricevitore (RX) ➊ ➋ ➌ ➍ Ingresso segnale RJ45 Segnale HDMI codificato in entrata ➊ Uscita HDMI Collegare con lo schermo HDMI ➋... - Page 5 EXTENDER HDMI SU CAVO CAT.6/7 40M InstruZIonI dI coLLEgaMEnto 1) Collegare il trasmettitore direttamente alla porta di uscita HDMI della sorgente e collegare il ricevitore alla porta di ingresso HDMI dello schermo 2) Collegare il trasmettitore e il ricevitore tramite il cavo di rete (cat6, cat6A o cat7) 3) Collegare il cavo USB solamente al trasmettitore, ciascuna unità verrà alimentata e l’extender HDMI sarà operativo.
- Page 6 Contattate le autorità locali competenti per ottenere informazioni in merito allo smaltimento corretto della presente apparecchiatura. Con il marchio CE, Techly garantisce che il prodotto e conforme alle norme e direttive ®...
-
Page 7: Important Safety Instruction
HDMI EXTENDER OVER CAT.6/7 CABLE 40M HdMI ExtEndEr ovEr cat.6/7 caBLE 40M Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. IMPortant saFEtY InstructIon INTENDED USE We do not permit using the device in other ways like described in this user’s manual. Use the product only in dry interior rooms. Not attending to these regulations and safety instruction might cause fatal accidents, injuries, and damages to persons and property. The manufacturer/supplier assumes no liability for damages caused by failure to comply with the intended use. - Page 8 HDMI EXTENDER OVER CAT.6/7 CABLE 40M IntroductIon This HDMI extender includes a transmitter and a receiver unit, working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via Cat.6/6A/7 network cable, the transmission distance is up to 40 meters with zero latency. This product is perfect for AV transmission in application of HD conference system, HD video shooting, HD multimedia education system entertainment and signage, etc. HDMI EXTENDER OVER CAT.6/7 C FEaturEs: 1. Portable size design 2. Support HDMI1.3, compatible with HDCP1.2 3. Highest resolution supported is up to 1080p@60HZ 4. Use Cat.6/6A/7 for long distance transmission up to 40 meters (with very high quality network cable the transmission lenght can reach 50 m) 5. Uncompressed and zero latency...
-
Page 9: Panel Description
HDMI EXTENDER OVER CAT.6/7 CABLE 40M PanEL dEscrIPtIon 1.Transmitter unit (TX) ➋ ➌ ➊ RJ45 signal output Output encoded HDMI signal ➊ HDMI signal Connect with HDMI source device ➋ Power input Connect with USB cable ➌ 2. Receiver unit (RX) ➊ ➋ ➌ ➍ R145 signal input Input encoded HDMI signal ➊ HDMI output Connect with HDMI display device ➋ LENGTH button For adjusting the unit self-adopt to the length of the network cable ➌ Power input Connect with the USB cable (optional) ➍... - Page 10 HDMI EXTENDER OVER CAT.6/7 CABLE 40M connEctIons 1) Plug the transmitter unit to the HDMI output port of the source device directly, and plug the receiver to the HDMI input port of the display device directly. 2) Connect transmitter unit (TX) and receiver unit (RX) via network cables (CAT6/CAT6A/CAT7) 3) Connect the USB cable to the transmitter unit only, each unit will be powered up, this HDMI HDMI EXTENDER OVER CAT.6/7 C extender works NOTE: It is recommended to use a length range within 15~40m network cable. If the Cat.6 cable is...
-
Page 11: Specification
In compliance with EU Directive WEEE this product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products in compliance with WEEE directive, otherwise contaminative and hazardous substances can pollute the environment. With the CE sign, Techly ensures that the product is conformed to the basic European ® standards and directives. - Page 12 www.techly.com...
