4Kx2K HDBitT HDMI Extender

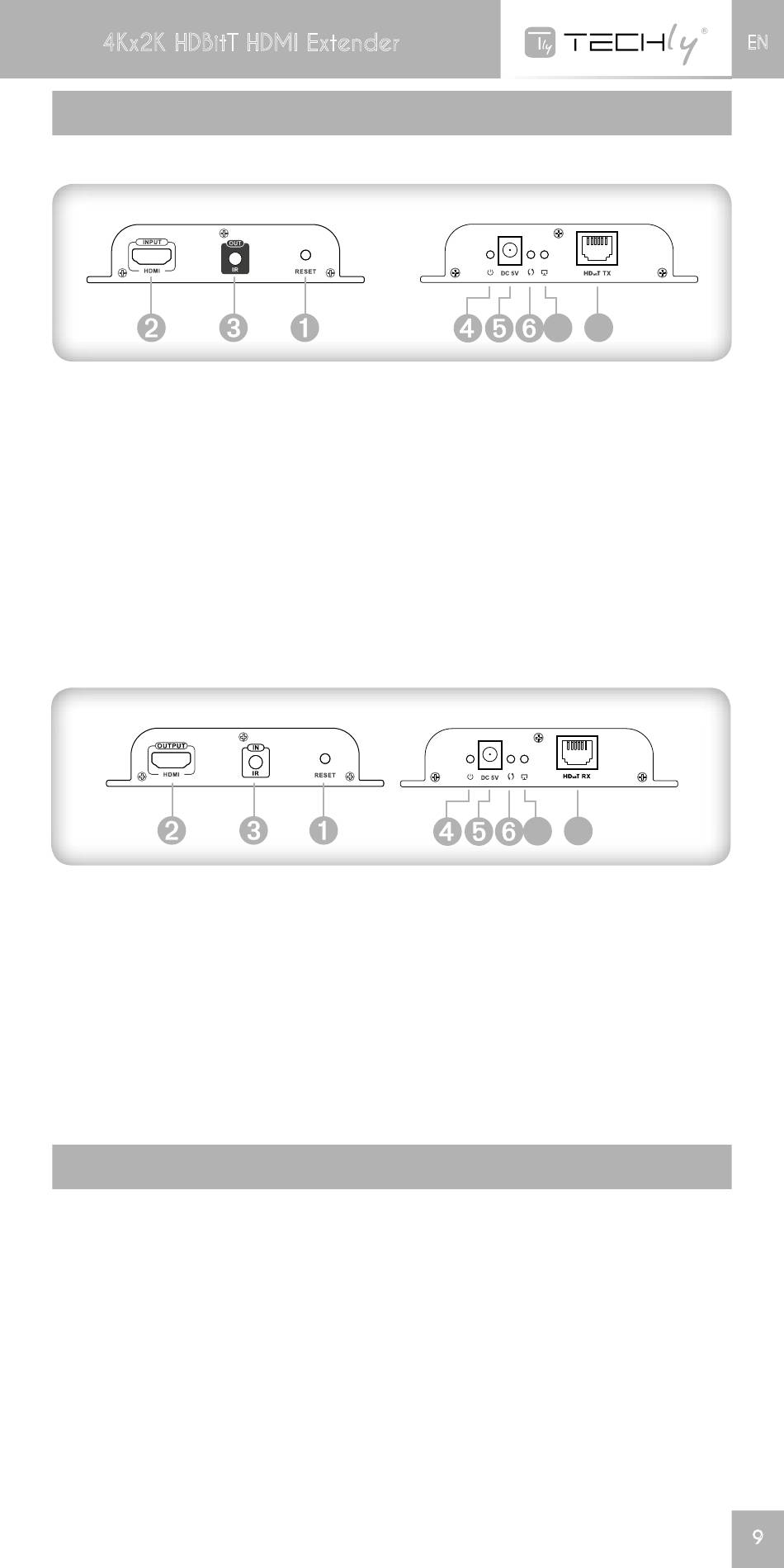

PAnEL DESCrIPTIOn

1. HDMI ExTEnDEr Tx (Sender)
Reset
➊
HDMI signal input
➋
➌ IR Signal output to connect with blaster extension cable
Power light
➍
Power input (DC5V)
➎
Data transmission light
➏
➐ Network link light
HDBitT signal output
➑
2. HDMI ExTEnDEr rx (receiver)
➊ Reset
HDMI signal output
➋
IR Signal input to connect with IR receiver extension cable
➌
Power light
➍
➎ Power input (DC5V)
Data transmission light
➏
Network link light
➐
HDBitT signal input
➑

InSTALLATIOn PrOCEDUrES

How to make a Cat.5/6 network cable
Follow the standard EIA-568B:
1-Orange/white
2-Orange
3-Green/white
4-Blue
7 8
5-Blue/white
6-Green
7-Brown/white
8-Brown
7 8
