PWRcell ATS Controller Upgrade Kit

1
Generator
2 Control
Inverter
Control
P1
P2
T1
N1
N2
0 GND
194 +12V
23 XSFR

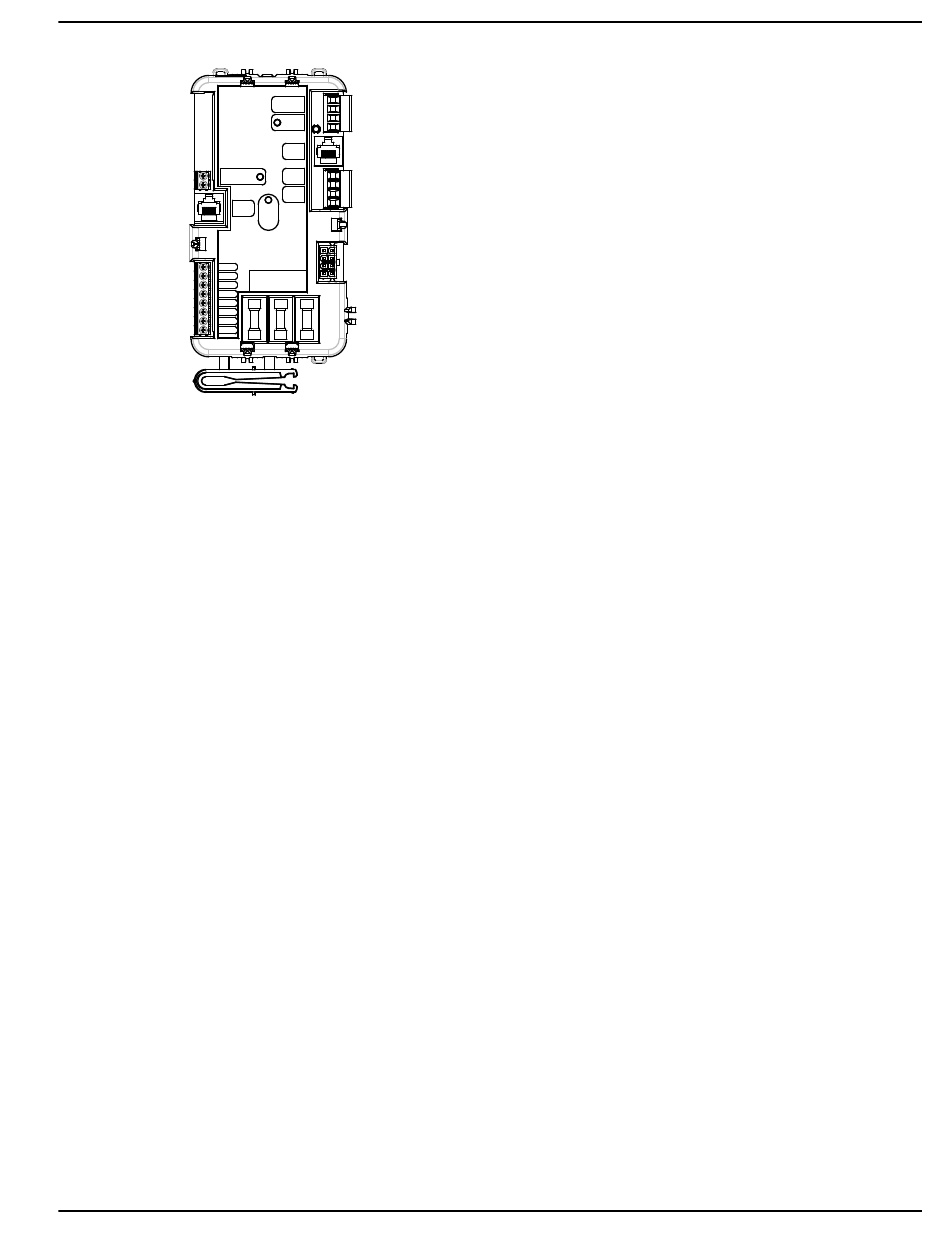

Figure 5-11. Modified PWRcell ATS Controller
See Figure 5-11. For AC Generator Integration, the
Inverter ATS must be upgraded with a PWRcell ATS
Controller (Part #: A0002532225; pictured left). Purchase
Upgrade Kit (Model G0080060) to utilize this controller.
This controller may be used in all other configurations
that require a PWRcell ATS.
NOTE: Use of an PWRcell ATS Controller version that is
incompatible with the intended application may result in
unexpected and incorrect behavior from your PWRcell
system. Review the following materials closely to ensure
the correct equipment is being used for the chosen
configuration.

Connecting Ethernet

IMPORTANT NOTE: Generac requires all PWRcell
system components to be connected to the Internet
and to maintain such connection throughout the war-
ranty period. Internet connectivity is established via
the PWRcell Inverter. By installing the PWRcell
Inverter and connecting it to the Internet, Customer
agrees that Generac may remotely monitor the use
and condition of the system and update the system's
firmware, as necessary, without further notice. If the
PWRcell system loses Internet connection for an
extended period, Generac may not be able to provide
important remote upgrades. In such cases, Generac
may not be able to honor the full warranty.
•
See
Accessing Wiring Compartment
Inverter Ethernet port location.
•
Use an appropriate cord grip or strain-relief
connector when running Ethernet cable with a
conduit.
•
Cat 5 or Cat 6 for Ethernet should not exceed 328
ft (100 meters) in length.
Installation and Owner's Manual for Generac PWRCell Inverter
1
Auxillary
Contact
2
1
Grid
Status
2
Inverter
CTs
1
CT1+
CT1- 2
1
CT2+
2
CT2-
ATS
Generator
Inhibited
Replace Generac Fuses
10000005117 250VAC, 6.3A
N2 N1 T1
014699
•
Basic high speed broadband Internet service with 5
Mbps upload/download required.
•
Inverters connected by a router to a DHCP network
will automatically detect settings.
•
For manual IP setup, see
Settings.
NOTE: It is the installer's responsibility to verify the
Internet connection is reliable and secure. Generac
recommends using a hardwired connection to provide
Internet connectivity. Generac does not support using
any wireless or power line carrier network devices. Use
these devices at your own discretion.
NOTE: Ethernet cable run must be dedicated for the
inverter. This cable may not be daisy-chained to another
device, including another PWRcell Inverter.
NOTE: Class 2 low voltage cable shall be installed
independent of other power conductors. See NEC
725.136 for additional information.

Configuring Static IP Settings

NOTE: For networks not configured for DHCP, use the
MAC address to locate the device on the network.
To manually configure settings:
1. From the REbus Beacon device page on the
inverter screen, select the Installer Tool. See
Access Installer Configuration Tool
information.
2. After logging into the Installer Configuration Tool,
select 'Beacon' from the menu.
3. Select 'Simple IP Network Settings'. See
12.
4. Adjust any of the following network configuration
information as needed.
•
Name
•
Config
•
Address
•
Netmask
•
Gateway
•
DNS1
•
DNS2
•
MAC
5. Press Submit to commit settings.
for the
Electrical Connections
Configuring Static IP
for more
Figure 5-
