System Mode
Safety Shutdown
Grid Tie *
Self Supply
Clean Backup
< EXIT SCROLL > NEXT • SELECT

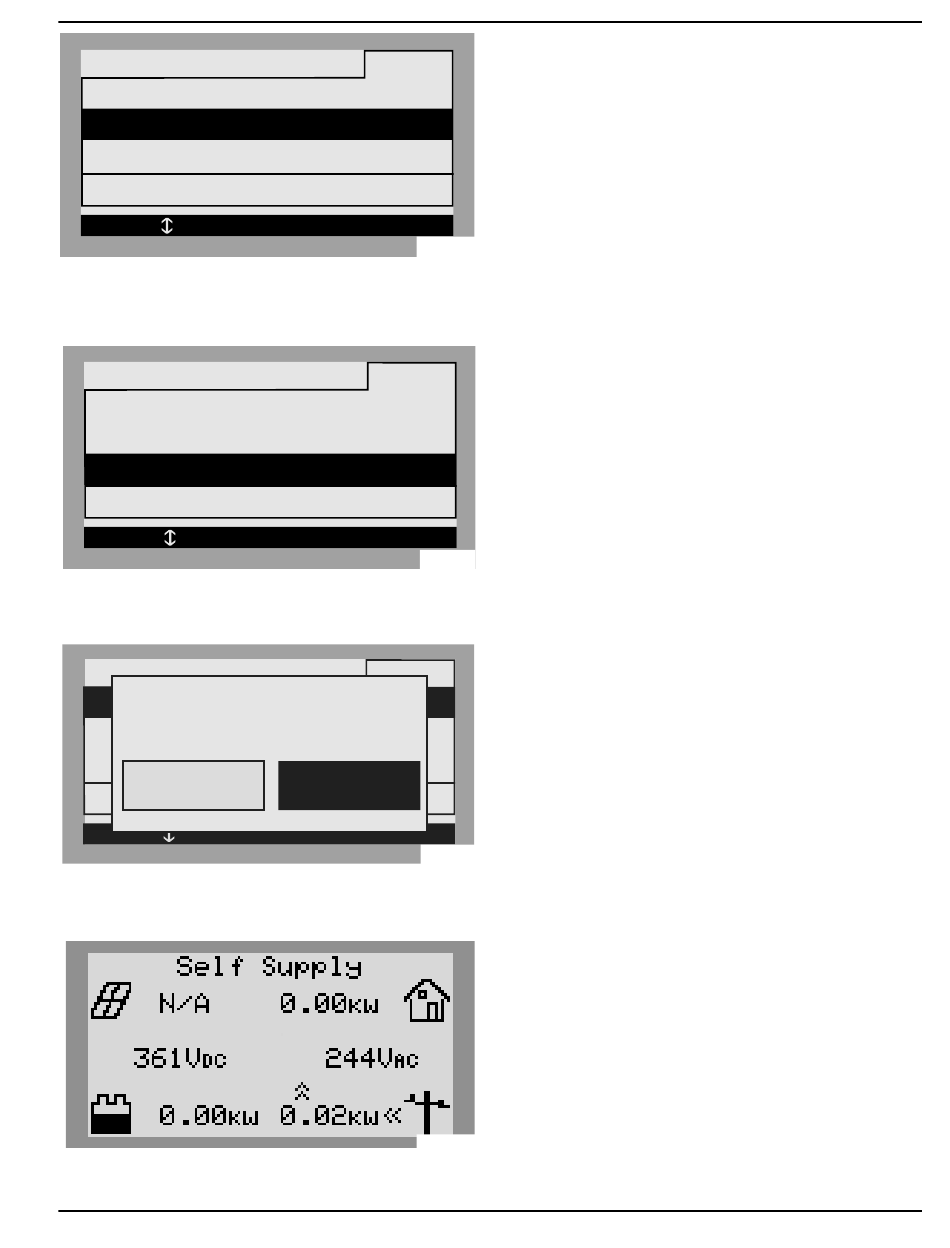

Figure 6-3. Selecting System Modes (1 of 4)
3. See
Figure 6-4. Use the up and down arrows to
highlight the desired mode and press the center
button to select.
System Mode
Safety Shutdown
Grid Tie *
Self Supply
Clean Backup
< EXIT SCROLL > NEXT • SELECT
Figure 6-4. Selecting System Modes (2 of 4)
4. See
Figure 6-5. Arrow right and press the center
button to select Confirm.
System Mode
SA
Self Supply
GRd. Settings
SElibrate CTs
Cancel
CLEPn: 00010003XXXX
< EXIT SCROLL > NEXT • SELECT
Figure 6-5. Selecting System Modes (3 of 4)
5. See Figure 6-6. Verify the mode listed at the top of
the home screen is the desired mode.
Figure 6-6. Selecting System Modes (4 of 4)
Installation and Owner's Manual for Generac PWRCell Inverter
Menu
009966
Menu
009967
Menu
Confirm
011139
009968

Configure Inverter Settings and Enable Inverter

Adjusting Inverter Settings
1. See 6-2. Navigate to the inverter device
Table
page using the right arrow key (next page right of
the home screen).
2. Push the center button.
3. Select Mod. Settings using the down arrow to scroll
and the center button to select.
4. Scroll through the settings using the up / down
arrow keys.
5. Use the center button to select a setting.
6. Use the up / down arrow keys to change the value
of a setting.
7. Use the center button to deselect a setting.
8. Scroll down and save all changes before exiting
the Mod. Settings menu.
9. Select Mod. Settings again to verify changes were
saved.
