A
B B
A Solar Panels
B PV Link
C PWRcell Battery

Inverter Control Panel

A
C
REbus
B
F
Shutdown
E
(hold)

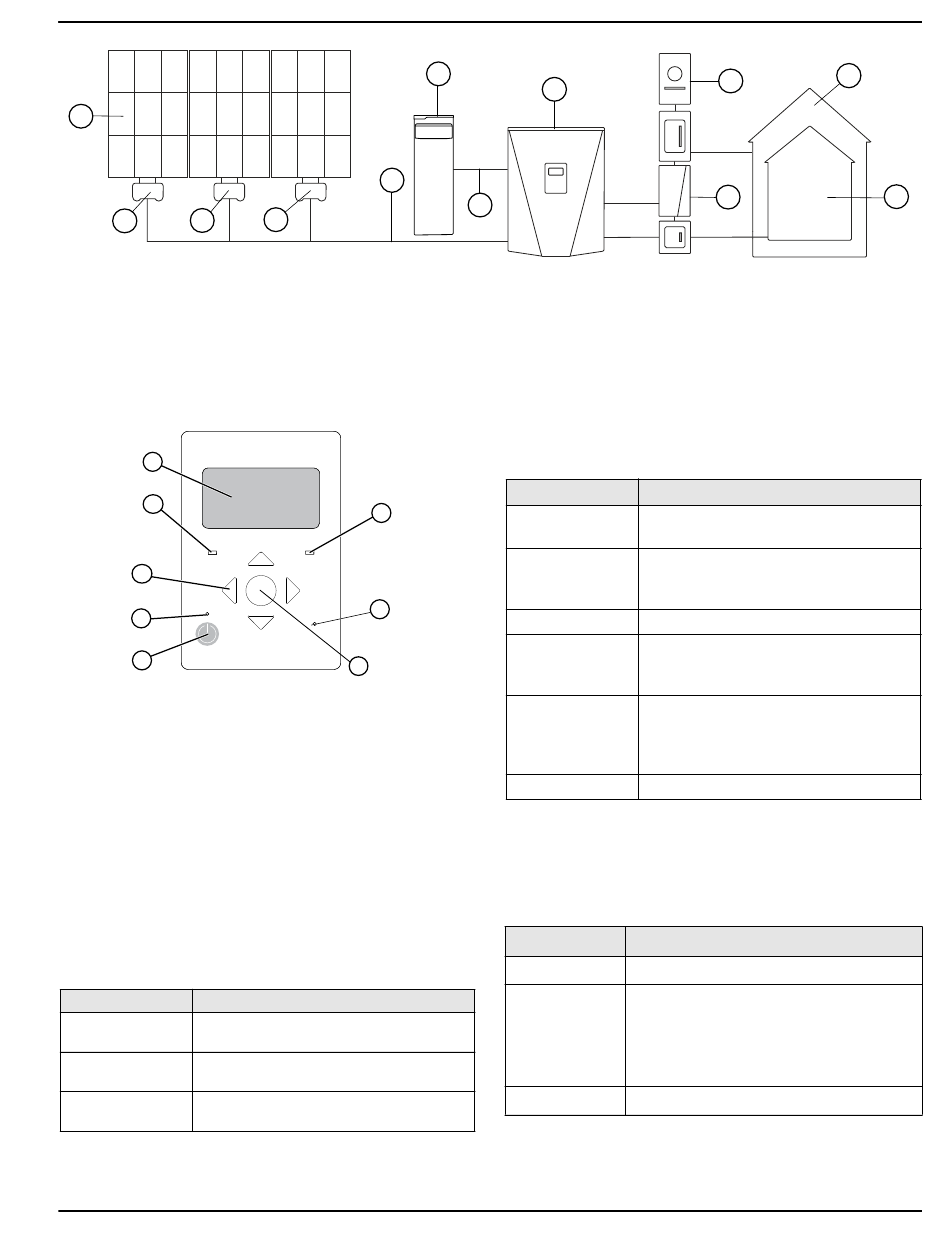

Figure 2-4. Inverter Control Panel
A LCD Display
B Navigation Keys
C REbus Status LED
D Inverter LED
See Figure 2-4. The PWRcell system is controlled
through the PWRcell Inverter control panel. The inverter
control panel is used for adjusting system settings and for
interacting with devices.

REbus Status LED

REbus Status LED (C) communicates REbus nanogrid
status through LED color.
LED Color REbus Status
All devices are enabled and functioning
Green
normally on REbus.
One or more devices are disabled, or no
Yellow
devices are detected.
A serious fault has been detected on a
Red
device or the REbus wiring.
Installation and Owner's Manual for Generac PWRcell Inverter
C
D
B
Figure 2-3. Generac PWRcell System Example
D REbus
E PWRcell Inverter
F
Grid
D
Inverter
G
Internet
009894
H
E Shutdown Button
F Shutdown LED
G Internet LED
H Select
E
D
G ATS
H Loads
J
Backup Loads

Inverter Status LED

Inverter LED (D) communicates the status of the utility
grid and / or inverter through LED color and state.
LED Color Inverter Status
Utility is connected and within normal
Green
operational voltage and frequency.
Inverter is in Island Mode due to a utility
Green Blinking service interruption. Utility is not within
normal operational voltage and frequency.
Yellow Inverter is disabled or powering up.
Inverter is waiting to connect to the grid, in
Yellow Blinking the process of connecting to REbus, or
waiting to connect to REbus.
Inverter is overloaded, or a serious fault
has been detected on the inverter. Manual
Red
intervention is likely required before the
equipment will resume operation.
No Light Inverter is powered down.

Internet Status LED

Internet LED (G) is illuminated when the inverter has a
connection to the Generac server. Internet LED (G) will
slowly strobe when REbus Beacon is updating its
firmware.
LED Color Internet Status
Blue Internet connected
Internet connected and Beacon firmware
auto-update is in progress.
Blue Strobing
Note: Do not power off the inverter or
unplug REbus Beacon while update is in
progress.
No Light Not internet connected.
General Information
G
F
H J
015164
