See Figure 7-22. If more power is being produced by the
solar array than is needed by local loads, the inverter
stores the energy in the battery for later use.

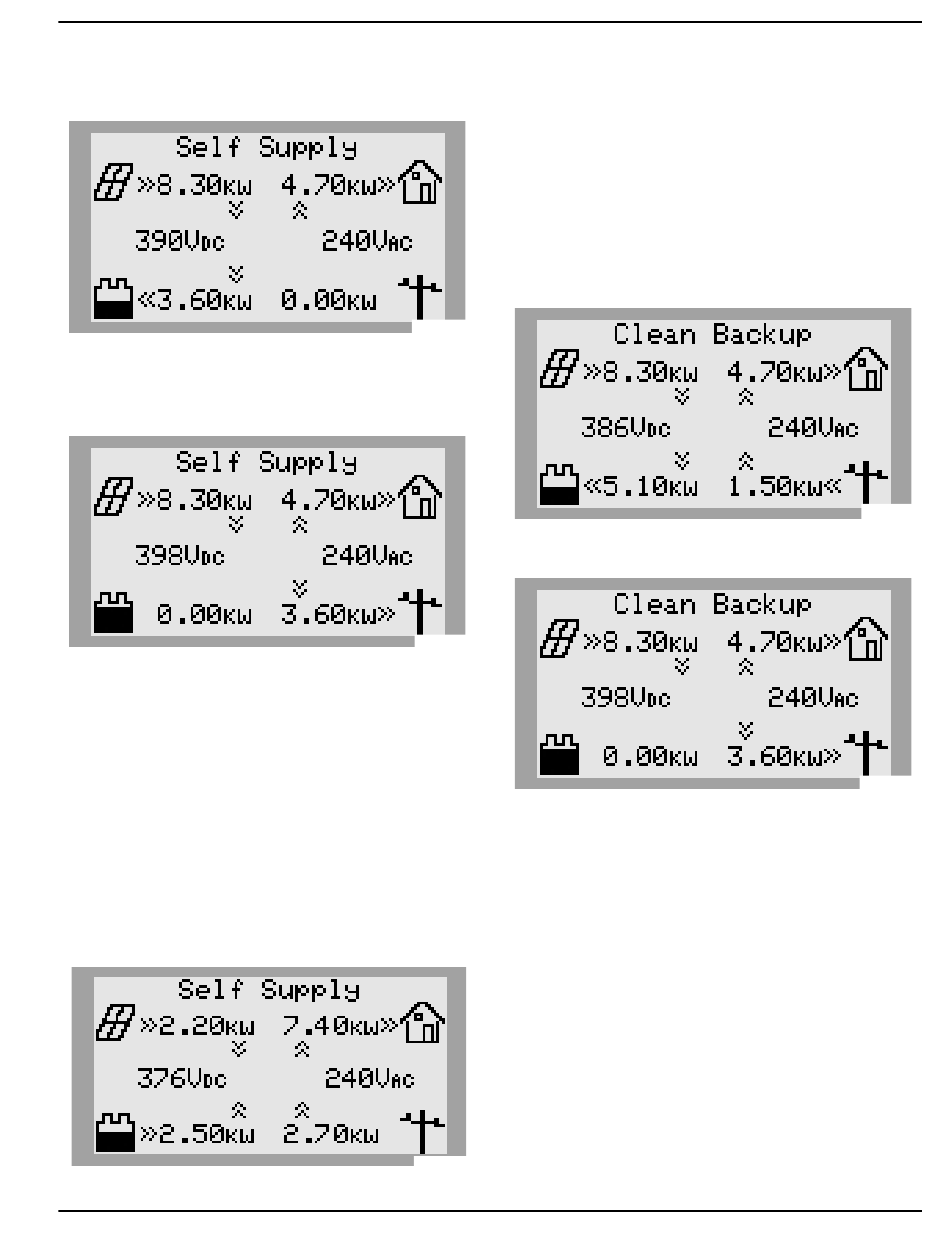

Figure 7-22. Self Supply (1 of 3)
See Figure 7-23. When the battery is full and a surplus of
power is available, that surplus is exported to the grid.
Figure 7-23. Self Supply (2 of 3)
See 7-24. When local demand exceeds available
Figure
solar power, the battery will discharge to offset the
demand. If the building requires more power than the bat-
tery and solar can provide, the excess demand is drawn
from the grid.
Operating in Self Supply mode, the battery will discharge
on a daily basis to the minimum reserve setting on the
PWRcell Battery. The setting MinSocRsrv comes default
set to 30 percent. This means a system operating in Self
Supply, while grid connected, will only use up to 70 per-
cent of the battery's stored capacity, leaving at least 30
percent available for Island Mode in the event of a utility
service interruption.
Figure 7-24. Self Supply (3 of 3)
Installation and Owner's Manual for Generac PWRCell Inverter

Clean Backup

NOTE: Grid power is not used to charge batteries in this
mode.
See 7-25. In Clean Backup mode, the inverter
Figure
prioritizes keeping the battery charged and ready for a
grid interruption using solar power only. If the battery is
not fully charged, the inverter uses all available solar
power to charge the battery. PWRcell Batteries will not
export to grid in this system mode.
See Figure 7-26. When the battery is fully charged, solar
power will flow to local loads and the grid.
009962
Figure 7-25. Clean Backup (1 of 2)
009963
Figure 7-26. Clean Backup (2 of 2)
See 7-28. If there is a utility service interruption
Figure
while operating in Clean Backup, the system will enter
Island Mode. Protected loads will be supported by solar
and battery power. If enough solar power is available,
solar will simultaneously charge the battery and support
the loads.

Priority Backup

In Priority Backup mode, the inverter prioritizes keeping
batteries charged and ready for grid interruption using
solar or grid power. If the battery is not fully charged, all
available solar power is used to charge the battery. When
the available solar power is lower than the battery input
power rating, the inverter uses grid power to expedite
battery charging. PWRcell Batteries will not export to grid
in this system mode.
