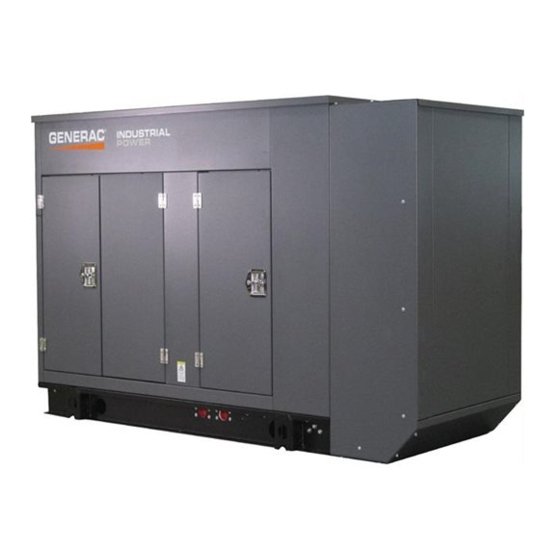

Generac Power Systems SG050 Owner's Manual

Stationary standby/emergency generator, industrial standalone gas or diesel
Hide thumbs

Advertisement

Quick Links

Download this manual
Model: 15113410300
Type:
SG050
Engine: G6.8.1
Owner's Manual
Stationary Standby/Emergency Generator
Industrial Standalone Gas or Diesel
This manual should remain with the unit.
C
US
LISTED

Advertisement

loading
Need help?

Need help?

Do you have a question about the SG050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Generac Power Systems SG050

Summary of Contents for Generac Power Systems SG050

  • Page 1 Model: 15113410300 Type: SG050 Engine: G6.8.1 Owner’s Manual Stationary Standby/Emergency Generator Industrial Standalone Gas or Diesel LISTED This manual should remain with the unit.
  • Page 3 Notes...
  • Page 6 EXPLODED VIEW: EV CONBOX 390 MODULE GROUP A DRAWING #: 0J1339 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (1)1 0H95790ST0R MD1 / MD2 CB MODULE 390 ALT (1)2 0J17560ST0R WIRE TUNNEL, MD1-2 390 ALT 0A4456 WASHER LOCK SPECIAL 3/8 061383 LUG SLDLSS 3/0-#4 X 13/32 CU 0E1534A PLUG PLASTIC 1.50"...
  • Page 7 EXPLODED VIEW: EV CONBOX 390 MODULE GROUP A DRAWING #: 0J1339 APPLICABLE TO: This page left blank intentionally REVISION: J-4132-G Page 4 of 4 DATE: 02/07/13...
  • Page 9 EXPLODED VIEW: 390, BOARD SOLID LEAD TERM BRL GROUP A DRAWING #: 0J1479 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION 051769 WASHER LOCK M12 049808 WASHER FLAT M12 VARIES FLEX PLATE 055173 SCREW HHC M8-1.25 X 20 G10.9 022129 WASHER LOCK M8-5/16 022145 WASHER FLAT 5/16-M8 ZINC 0G0724...
  • Page 11 EXPLODED VIEW: EV 390 ALTERNATOR TOWER ASM GROUP A DRAWING #: 0J7594 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (1)1 0J75960ST0R MAIN, ALT TOWER 390 W/ SHROUD (1)2 0H94310ST0R TOP, ALT TOWER 390 SINGLE CB 0H9431BST0R TOP ALT TOWER 390 SNGL CB RH (1)2A 0H9431AST0R TOP, ALT TOWER 390 DUAL CB...
  • Page 13 EXPLODED VIEW: EV,CB ASSEMBLY 225AF GROUP A DRAWING #: 0J8468 ITEM PART# QTY. DESCRIPTION MAIN CIRCUIT BREAKER (1)2 045771 NUT HEX M8-1.25 G8 CLEAR ZINC (1)3 049897 SCREW SHC M8-1.25 X 20 G8 (1)4 022129 8/12 WASHER LOCK M8-5/16 (1)5 022145 8/12 WASHER FLAT 5/16-M8 ZINC...
  • Page 14 DPE Breaker and Field Boost Resistor Table for Gensets with H-Panel Control & 12V Battery DPE BREAKER FIELD BOOST RESISTOR VOLTAGE FREQUENCY EXCITATION SIZE kW RATING PART NO. SIZE PART NO. SIZE 1kW - 8.9kW 048512 direct 0F5752E 5 ohm 9kW - 45kW 048467 1kW - 15kW...
  • Page 17 EXPLODED VIEW: EV H-PNL 10A BC NO E-GOV DSL24 GROUP B DRAWING #: 0J0288 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (1)1 0H84230ST0R BRACKET H-PNL MOUNTIN CCI IND 0H4733E ASSY H-PANEL 2.5A BATC 12V 0G4140E ASSY H-PANEL 10A BATC 12V 0G4141E ASSY H-PANEL NO BATC NO E-GOV 0G4144E ASSY H-PANEL 10A BATC 24V...
  • Page 19 0D3483 FAN GUARD 0A2110 SCREW SWAGE 1/4-20 X 1/2 Z/YC 0D3484 BOTTOM COVER, FANGUARD 074908 SCREW HHTT M5-0.8 X 10 BP...
  • Page 21 047411 SCREW HHC M6-1.0 X 16 G8.8 022097 WASHER LOCK M6-1/4 022473 WASHER FLAT 1/4 ZINC 084918G HEATER ENG 1500W 120V (60HZ) 084918H HEATER ENG 1500W 240V (50HZ) 0G0015 CLAMP, HOSE 5/8" DOUBLE WIRE 042568 SCREW HHC M6-1.0 X 20 G8.8 055934D CLAMP VINYL 1.06 X .406 Z 084427...
  • Page 23 058665 BATTERY 12VDC 90-AH 27F 058665A BATTERY SERVICE DRY 058208 BATTERY 12VDC 24F 525 CCA 061119 BATTERY BCI GRP 31 061119A 31E BATTERY SERVICE DRY 0A4010 SCREW HHC M8-1.25 X 60 C8.8 FT 0A4010 SCREW HHC M8-1.25 X 60 C8.8 FT 099049 J BOLT BATTERY TRAY 052858...
  • Page 25 EXPLODED VIEW: EV RADIATOR BLOCKOFF 6.8L GROUP C DRAWING #: 0J1133 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (1)1 0J11370ST0R RADIATOR BLOCKOFF 6.8L TOP (1)2 0J11350ST0R RADIATOR BLOCKOFF 6.8L LEFT (1)3 0J11360ST0R RADIATOR BLOCKOFF 6.8L RIGHT (1)4 0J11340ST0R RADIATOR BLOCKOFF 6.8L BOTTOM 0C2454 SCREW HWHT M6-1 X 16 N WA Z/JS 052250...
  • Page 27 EXPLODED VIEW: EV 6.8L G3 CCI MOUNTING BASE GROUP C DRAWING #: 0J2569 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (2)1 0J03380ST0R MTG BASE G6.8L 390 DD CCI 0J03390ST0R MTG BASE G6.8L 390 DD DUAL CCI 0J03400ST0R MTG BASE G6.8L 390 GB CCI 0J03410ST0R MTG BASE G6.8L 390 GB DUAL CCI 0J03420ST0R...
  • Page 28 EXPLODED VIEW: EV 6.8L G3 CCI MOUNTING BASE GROUP C DRAWING #: 0J2569 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION 075763 BOOT BATTERY CABLE 050277 DECAL OIL DRAIN NOTES (UNLESS OTHERWISE SPECIFIED): (1) 520 G/B ONLY NOTES (UNLESS OTHERWISE SPECIFIED): (2) SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) •...
  • Page 29 EXPLODED VIEW: EV 6.8L G3 CCI MOUNTING BASE GROUP C DRAWING #: 0J2569 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION THIS PAGE LEFT INTENTIONALLY BLANK REVISION: J-3445-E Page 4 of 4 DATE: 12/5/12...
  • Page 31 EXPLODED VIEW: EV GLAND PLATE GROUP C DRAWING #: 0J4768 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (1)(2)1 GLAND PLATE (1)2 0C2454 SCREW HWHT M6-1 X 16 N WA Z/JS (1) QTY. REQUIRED FOR SINGLE CIRCUIT BREAKER / QTY. REQUIRED FOR DUAL CIRCUIT BREAKER. (2) SEE BILL OF MATERIALS FOR PART NUMBER.
  • Page 33 0D2513D AIR CLNR BTM PLT W/CPLR 8.1L 0D2513E PLATE AIR CLEANER W/COUPLER 0F5419 ELEMENT AIR FILTER 0F4268 TOP PLATE VENTURI 0F4270A HOLD DOWN AIR CLEANER PLATED 0F6977 PLATE AIR CLEAN TOP 5.4L/6.8L 037561 NUT WING 1/4-20 NYLK 047411 SCREW HHC M6-1.0 X 16 G8.8 022097 WASHER LOCK M6-1/4 049811...
  • Page 35 EXPLODED VIEW: EV ENGINE COMM PARTS 6.8L L/H GROUP D DRAWING #: 0J2563 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION 0F3017 BRACKET,D.C. ALTERNATOR LOWER 039253 SCREW HHC M8-1.25 X 20 G8.8 022129 WASHER LOCK M8-5/16 022145 WASHER FLAT 5/16-M8 ZINC (2 5 0D5419 OIL FILTER, FORD V-10 ENGINE (2)6...
  • Page 36 EXPLODED VIEW: EV ENGINE COMM PARTS 6.8L L/H GROUP D DRAWING #: 0J2563 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION 023897 WASHER FLAT #10 ZINC 022152 WASHER LOCK #10 022158 NUT HEX #10-32 STEEL 0G9378 DECAL SORE EPA CERTIFICATION 0H0777 DECAL LSI EPA CERTIFICATION (1) NOTE: I/N 18 IS FOR HOLDING SENSOR TO I/N 35.
  • Page 37 EXPLODED VIEW: EV ENGINE COMM PARTS 6.8L L/H GROUP D DRAWING #: 0J2563 APPLICABLE TO: THIS PAGE LEFT INTENTIONALLY BLANK REVISION: J-2555-E Page 4 of 4 DATE: 8/22/12...
  • Page 39 EXPLODED VIEW: EV ENGINE COMM PARTS 6.8L R/H GROUP D DRAWING #: 0J2563A APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (3)1 029333A TIE WRAP UL 7.4"X .19" BLK (NOT SHOWN) 0D5418 STARTER MOTOR FORD V-10 ENGINE (1)3 052625 6/11 SCREW SHC M10-1.5 X 35 G12.9 065386 HOSE COOL 5/8 ID 100R6 (14”LG) 087599...
  • Page 41 EXPLODED VIEW: EV B GROUP COOLING SYSTEM GROUP D DRAWING #: 0J2567 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (1)1 0J06070ST0R RADIATOR SUPPORT LH 6.8L (1)2 0J06060ST0R RADIATOR SUPPORT RH 6.8L 0G1286A RADIATOR, R/H-IN L/H-OUT 046627 CAP RADIATOR 14PSI 0D3520 HOSE, LOWER RADIATOR 0D3521 HOSE, UPPER RADIATOR 042561...
  • Page 43 EXPLODED VIEW: EV FUELSYS G6.8L G3 NG & LPV GROUP E DRAWING #: 0H6703 ITEM PART# QTY. DESCRIPTION 049721 SCREW HHC M6-1.0 X 35 C8.8 BLK 0H5093 ASSY RGLTR INLET NPT FITTINGS 065908 SUPPORT NAT GAS SOLENOID 039130 NIPPLE CLOSE 1.25NPT X 1.625 030131 ELBOW 90D 1-1/4 NPT 088963...
  • Page 46 EXPLODED VIEW: EV ENCL L2A B-GRP GROUP F DRAWING #:0J1936 ITEM PART# QTY. DESCRIPTION (1)1 0F07740ST0R BLOCK OFF FRONT OVERHD 027529 NUT HEX LOCK 1/4-20 NY INS (1)3 0C33350ST0R DUCT BOTTOM RAW 0C3594 ASSY M6 HINGE R/H 0C3594A ASSY M6 HINGE L/H 022097 WASHER LOCK M6-1/4 (1)7...
  • Page 47 EXPLODED VIEW: EV ENCL L2A B-GRP GROUP F DRAWING #:0J1936 ITEM PART# QTY. DESCRIPTION 0K0328AJ INSULATION OVRHD MDL REAR 0K0328AK INSULATION OVRHD MDL REAR 0K0328AL INSULATION ROOF 0K0328AM INSULATION ROOF 0K0328AN INSULATION ROOF 0K0328AH INSULATION OVRHD MDL SIDE 0K0328AP INSULATION OVRHD MDL SIDE 0K0328BF INSULATION OVRHD MDL BTM 0K0328AQ...
  • Page 49 EXPLODED VIEW: EV EXHAUST 6.8L B-GRP GROUP F DRAWING #: 0J4241 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION (1)1 0J42710ST0R ASSY, 6.8L B-GRP EXHAUST BRACE 0C4170 BRKT, EXHAUST SHIELD 0C4114 CLAMP MUFFLER BAND (2)0D5061A MOUNTING BAND, CATALYST 0D3522 MUFFLER, 6.8L DIRECT DRIVE (2)0D5026 CATALYST MUFFLER, 6.8L B-GRP 0D3651...
  • Page 77 EXPLODED VIEW: EV, CB MOUNTING KIT MD1 390 GROUP H DRAWING #: 0J1027 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION NO CIRCUIT BREAKERS (1)1 0H93780ST0R MD1,MODULE COVER 390 G-FRAME 0C2454 SCREW HWHT M6-1 X 16 N WA Z/JS 0J0679 DECAL, CANADIAN SAFETY CODE 0J0546 DECAL, HV CUSTOMER CONN INSIDE 0D3719C...
  • Page 78 EXPLODED VIEW: EV, CB MOUNTING KIT MD1 390 GROUP H DRAWING #: 0J1027 APPLICABLE TO: 0J4465 SCREW SHC M4-0.7 X 80 C12.9 043180 WASHER FLAT M4 022264 WASHER LOCK #8-M4 051715 NUT HEX M4-0.7 G8 YEL CH ITEM PART# QTY. DESCRIPTION UL CIRCUIT BREAKER (F -FRAME) (1)1...
  • Page 79 EXPLODED VIEW: EV, CB MOUNTING KIT MD1 390 GROUP H DRAWING #: 0J1027 APPLICABLE TO: 046580 SCREW SHC M6-1.0 X 45 C12.9 022473 WASHER FLAT 1/4-M6 ZINC 022097 WASHER LOCK M6-1/4 049813 NUT HEX M6-1.0 G8 CLEAR ZINC ITEM PART# QTY.
  • Page 81 EXPLODED VIEW: EV, NEUTRAL BLOCK 0-250A GROUP H DRAWING #: 0J1047 APPLICABLE TO: ITEM PART# QTY. DESCRIPTION NEUTRAL BLOCK (250A) 057073 JUNCTION BLOCK 3/8-16 0H9690 NEUTRAL, BRACKET (60-100A) 0F8451 LUG SLDLSS 300 MCM-6 AL/CU 0C2266 SCREW PHTT M5-0.8 X 16 ZP 022131 WASHER FLAT 3/8-M10 ZINC 022237...
  • Page 83 EXPLODED VIEW: EV 390 ALT SHROUD KIT CCI GROUP H DRAWING #: 0J7592 ITEM PART# QTY. DESCRIPTION (1)1 0J7590AST0R SHROUD 390 ALT X 76MM 0J75900ST0R SHROUD 390 ALT X 50MM 0J75910ST0R SHROUD 390 ALT X 150MM (2)2 0C2454 8/10 SCREW HWHT M6-1 X 16 N WA Z/JS 0E1534A PLUG PLASTIC 1.50"...
  • Page 84 Notes...
  • Page 85 Notes...
  • Page 86 Notes...
  • Page 88 GENERAC ® POWER SYSTEMS, INC. 211 MURPHY DR. • P.O. BOX 310 EAGLE, WI 53119...
