Enabling the Inverter
1. See 6-7. Use the right arrow key to scroll to
Figure
the inverter device page.
2. Verify inverter status reads disabled.

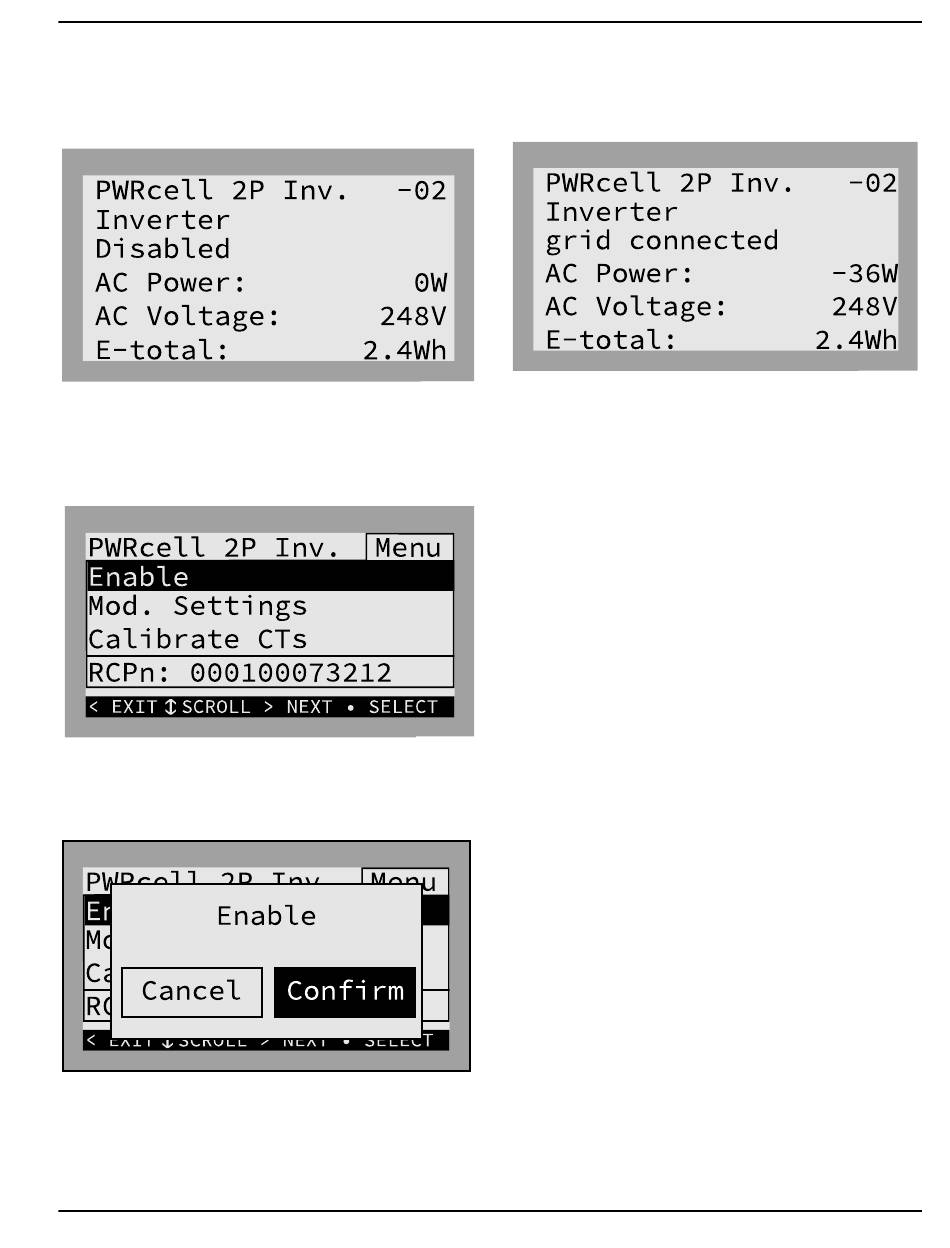

Figure 6-7. Enabling Inverter (1 of 4)
3. Press th center button.
4. See Figure 6-8. Highlight Enable and press the
center button.
Figure 6-8. Enabling Inverter (2 of 4)
5. See
Figure 6-9. Arrow right and press center but-
ton to Confirm.
Figure 6-9. Enabling Inverter (3 of 4)
6. See 6-10. The inverter is enabled. It will
Figure
create voltage at the DC terminals and begin com-
municating with connected REbus devices.
Installation and Owner's Manual for Generac PWRCell Inverter
NOTE: Upon enabling the inverter high voltage will be
present at the REbus DC terminals and all REbus DC
wiring where the DC disconnects are turned ON for those
circuits.
010010
Figure 6-10. Inverter Enabled (4 of 4)
Configuring with PWRcell Batteries
Systems with the PWRcell Battery must have the "EnaIs-
landing" setpoint set to 'on' in order to enter Island Mode
for backup. This setpoint is accessible through the Mod.
Settings menu via the inverter device page.
Verify the PWRcell Inverter protected loads disconnect is
in the ON position.
Verify Battery Disconnect Switch on the PWRcell Battery
is ON.
NOTE: Reference the PWRcell Battery Installation
and Owner's Manual for advanced battery settings.
Set Export Override (optional)
NOTE: This feature requires CTs to be properly installed
and calibrated prior to use. For more information on CT
010011
calibration, see
NOTE: This feature is NOT intended to serve as a
means of achieving compliance to utility interconnection
requirements. To set for zero export compliance or export
limiting, see
Set Import / Export
This feature is suitable as a simple and easy option for
systems pending permission to operate (PTO) where the
utility does not specify a requirement for the system to be
powered-off or otherwise disabled pending approval.
When enabled, Export Override allows the user to restrict
inverter export such that excess power is not sent back to
the grid. The system limits solar power generation to
match power consumption measured by the PWRcell
CTs. Using the Inverter control panel, a user can find this
feature on the "Mod. Settings" sub-menu for the inverter.
