A
F

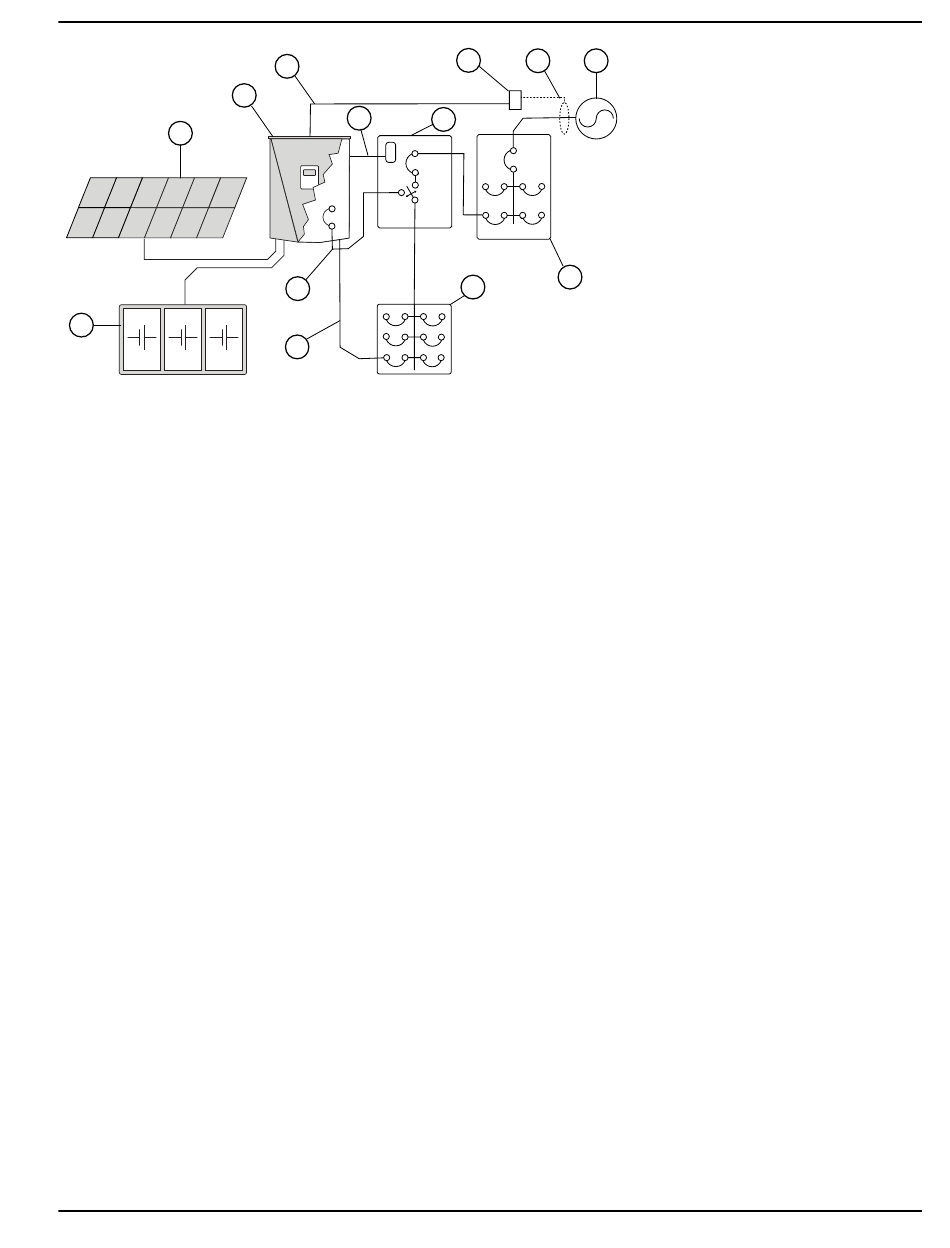

Figure 5-8. Partial Home Backup Installation with Protected Loads Subpanel
Installation and Owner's Manual for Generac PWRCell Inverter
K
B
L
D
E
J H G
C
M
N
Electrical Connections
A PV Array
B PWRcell Inverter
C
PWRcell ATS
D Protected Loads Wiring
E Inverter AC Grid Connection
F PWRcell Battery
G
Utility
H Current Transformers (CTs)
J CTs Adapter
K CTs Control Cable Cat 5/6
L
ATS Control Cable Cat 5/6
M AC Main Panel
N Protected Loads Subpanel
015178
21
