HDDs and SSDs

Drive numbering

The server provides different drive numbering schemes for different drive configurations at the server
front and rear, as shown in
For the correspondence between the drive numbering of physical drives on the server and the drive
numbering on HDM or BIOS, see the server user guide.

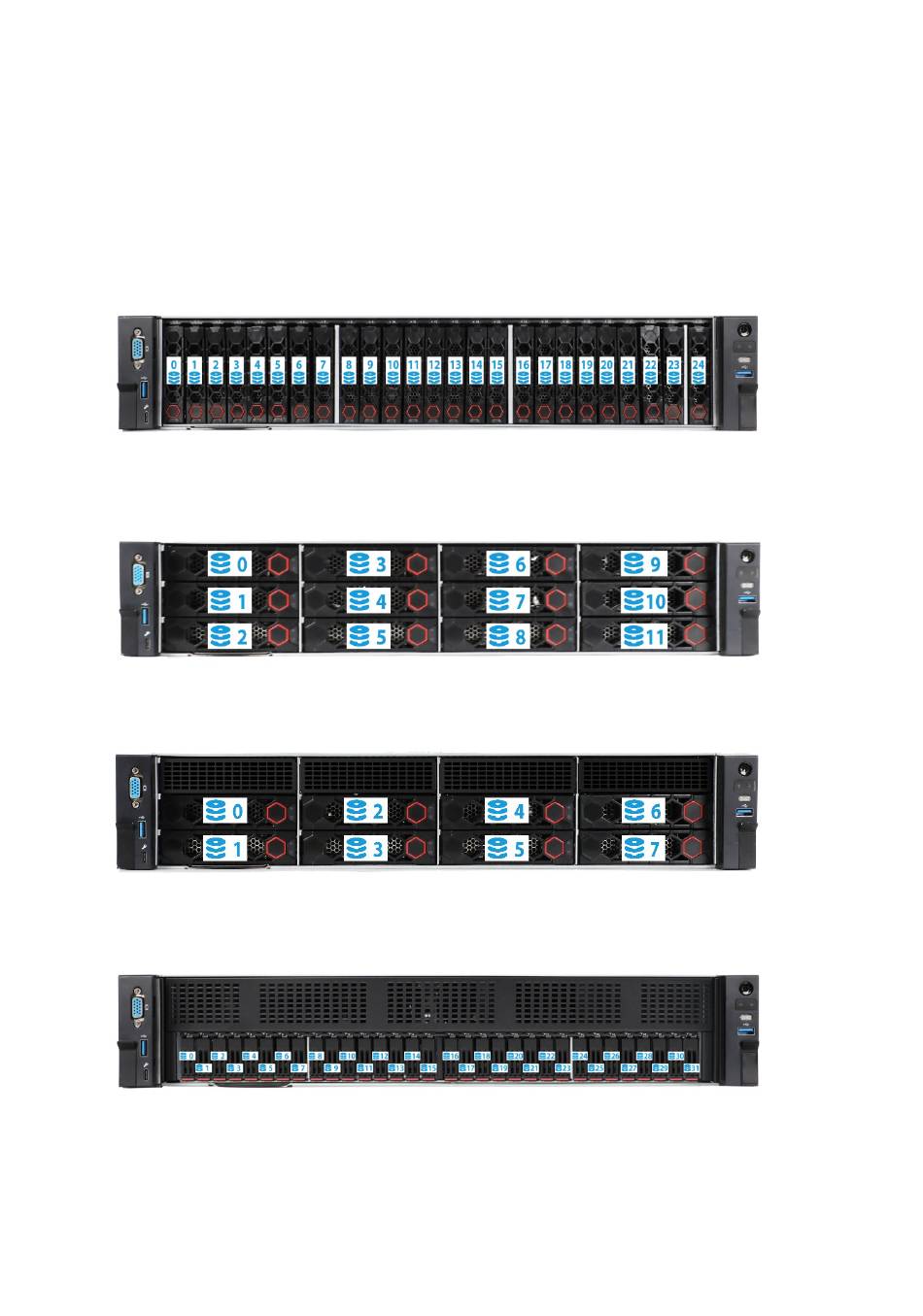

Figure 15 Drive numbering for front 25SFF drive configuration
Figure 16 Drive numbering for front 12LFF drive configuration
Figure 17 Drive numbering for front 8LFF drive configuration
Figure 18 Drive numbering for front 32E1.S drive configuration
Figure 15 through Figure
14
19.
