RC-3FHFL-2U-G6

•
RC-3FHHL-2U-G6
•
• RC-FHHL-2U-G6
RC-1FHFL-R3-2U-G6
•
RC-2HHHL-R3-2U-G6
•
RC-2FHFL-R3-2U-G6
•
• RC-2HHHL-R4-2U-G6
RC-5HHHL-R5-2U-G5
•
PCA-R4900-4GPU-G6
•
For more information about riser cards and installation guidelines, see
modules."
RC-3FHFL-2U-G6

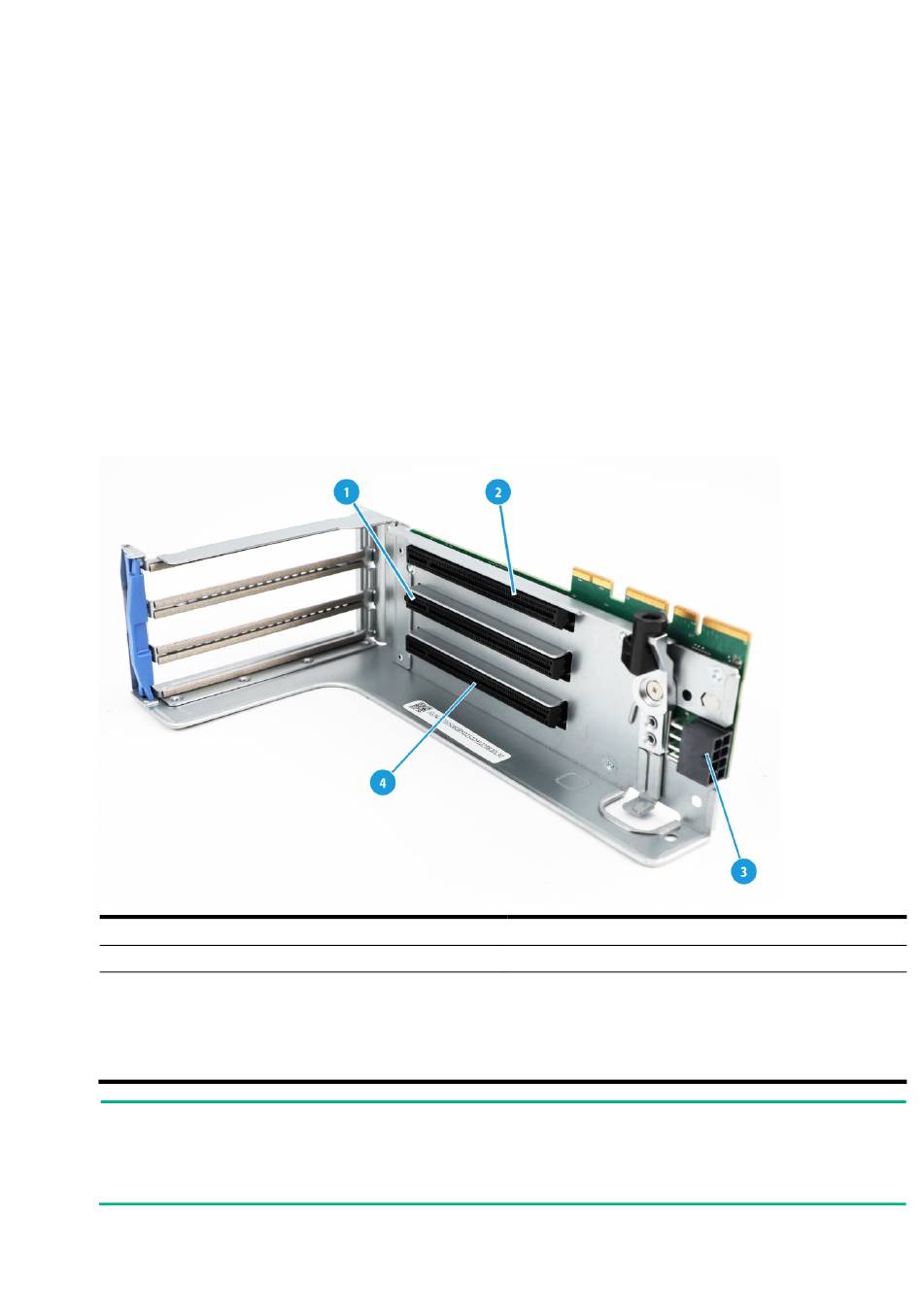

Figure 44 RC-3FHFL-2U-G6 (1)
(1) PCIe5.0 x16 (16,8,4,2,1) slot 2/5
(3) GPU module power connector
PCIe5.0 x16 (16,8,4,2,1) description:
• PCIe5.0: Fifth-generation signal speed.
x16: Connector bandwidth.
•
• (16,8,4,2,1): Compatible bus bandwidth, including x16, x8, x4, x2, and x1.
NOTE:
slot 1/4: When the riser card is installed in PCIe riser card slot 1, this slot corresponds to PCIe slot 1.
When the riser card is installed in PCIe riser card slot 2, this slot corresponds to PCIe slot 2. This rule
applies to all the other PCIe riser card slots. For information about PCIe slots, see
(2) PCIe5.0 x16 (16,8,4,2,1) slot 3/6
(4) PCIe5.0 x16 (16,8,4,2,1) slot 1/4*
28
"Riser cards and PCIe
"Rear panel view."
