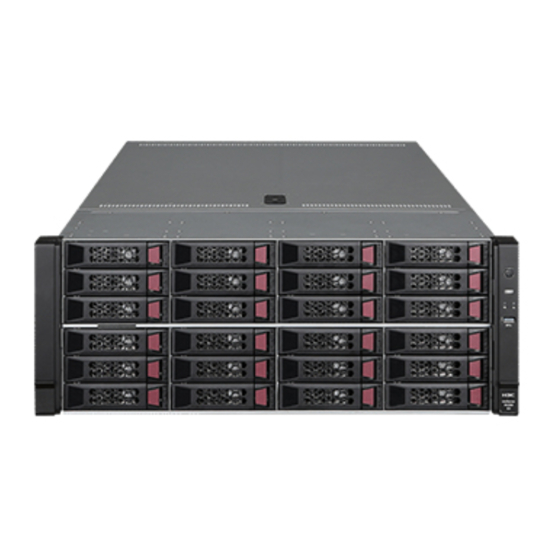

H3C UniServer R4300 G3 Installation, Quick Start
Processor installation
Hide thumbs
Also See for UniServer R4300 G3:
- Operating system installation manual (141 pages) ,
- User manual (401 pages)
Related Manuals for H3C UniServer R4300 G3
Summary of Contents for H3C UniServer R4300 G3
- Page 1 H3C UniServer R4300 G3 Server Processor Installation Quick Start New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W100-20200731...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Preface This preface includes the following topics about the documentation: • Audience. • Conventions. • Documentation feedback. Audience This documentation is intended for: • Network planners. • Field technical support and servicing engineers. • Server administrators working with the R6700 G3 Server. Conventions The following information describes the conventions used in the documentation.
- Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
- Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
-
Page 6: Table Of Contents
Content Overview ···························································································································································· 1 Processor kit ······················································································································································ 1 Preparing for installation ···································································································································· 1 Installing the processor ······································································································································ 2 Installing DIMMs················································································································································· 3 (Optional) Installing an air baffle panel··············································································································· 3 Starting the server ·············································································································································· 3... -
Page 7: Overview
UN-DDR4-2666-8G-1Rx8-R, UN-DDR4-2666-8G-1Rx8-R-F, and UN-DDR4-2666-8G-1Rx8-R-S. Processor kit The processor kit for an H3C UniServer R4300 G3 server includes the following components: • Processor • Retaining bracket • Heatsink • Air baffle panel (provided only with a standard heatsink) T15 and T30 Torx screwdrivers are required for processor installation. -
Page 8: Installing The Processor
Installing the processor CAUTION: • To prevent damage to the pins on the processor socket, always install a cover over an empty processor socket. • Make sure all processors on a server are the same model. • To avoid damage to a processor, always hold the processor by the edges. Never touch the gold contacts on the processor bottom. -
Page 9: Installing Dimms
To avoid poor contact or damage to the socket pins, fasten the screws to a torque of 1.4 Nm (12 in-lbs). Installing DIMMs After you install a new processor, install DIMMs for it. For the DIMM configuration guidelines, see the server user guide. To install a DIMM: Open the retaining clips of the DIMM slot.
