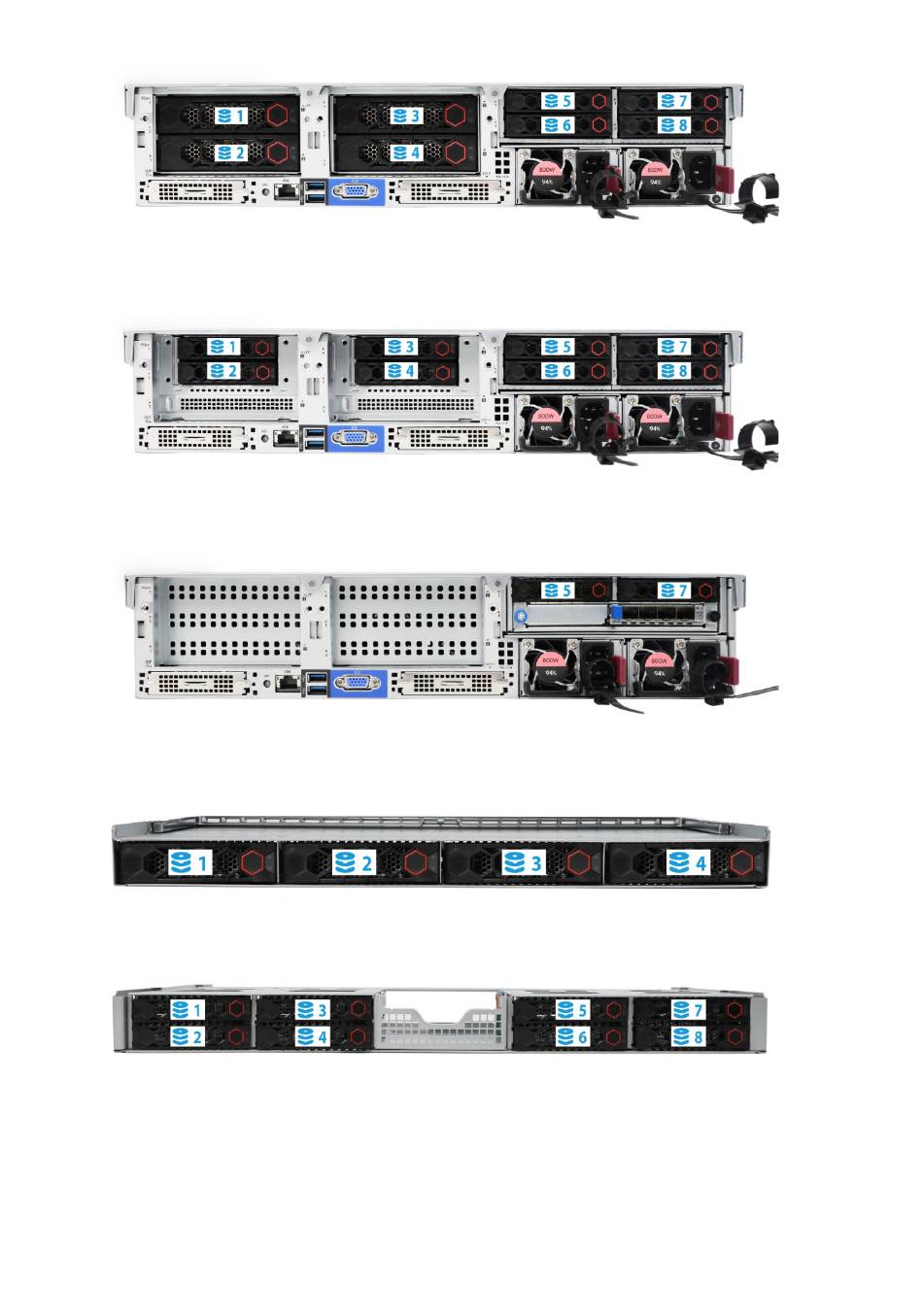

Figure 19 Drive numbering for rear 4LFF+4SFF drive configuration
Figure 20 Drive numbering for rear 2SFF+2SFF+4SFF drive configuration
Figure 21 Drive numbering for the rear OCP adapter configuration
Figure 22 Drive numbering for the mid 4LFF drive configuration
Figure 23 Drive numbering for the mid 8SFF drive configuration
Drive LEDs
The server supports SAS, SATA, and NVMe drives. You can use the LEDs on a drive to identify its
status.
Figure 24
and
Figure 25
shows the location of the LEDs on a drive.
